Oil Heating Two Roll Mill 120ml 4inch

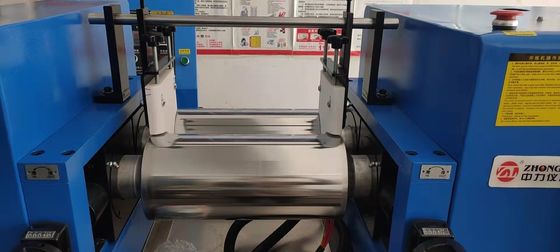

Large Image : Oil Heating Two Roll Mill 120ml 4inch

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO,CE
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged in wooden case
Delivery Time:	15-20 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Model:	Oil Heating Two Roll Mill 120ml 4inch	Voltage:	380V 60Hz, 3 Phase
Capacity:	0.5-1kgs / 2-3kgs / 5-7 Kgs	Warm-up Time:	Room Temperature ~ 300 ℃ About 20C
Cooling Method:	Water / Air Cooling	Temperature Control:	P.I.D Controlled
Roller Hardness:	HRC 50 ~ 60	Power Source:	AC380V, 15A
Power:	About 2800W
Highlight:	Two Roll Mill 120ml , Oil Heating Two Roll Mill 4inch , 4inch Lab Two Roll Mill

Oil Heating Two Roll Mill 120ml 4inch

The Oil Heating Two Roll Mill is designed for polymer mixing processes in the rubber and plastic industries, including PVC, masterbatch, and other chemical raw materials. This machine ensures uniform material mixing with additives to achieve desired color and quality specifications.

Key Applications

This plastic open two-roll mixing mill is widely used for polymer mixing in rubber and plastics manufacturing. It handles materials such as PVC and color master batch, featuring components including rolls, bearings, gap adjustment devices, electric control systems, and safety mechanisms.

Technical Specifications

Parameter	Specification
Mixed Capacity	0.5-1 kgs / 2-3 kgs / 5-7 kgs
Temperature Range	Room temperature ~ 300℃
Temperature Control	LED display with button input/output
Control Method	P.I.D controlled
Heater Type	Cylindrical mold heating
Warm-up Time	Room temperature ~ 150℃ in approx. 20min
Temperature Accuracy	±3℃
Roller Dimensions	Diameter 3.9" * Length 13.7"
Drum Revolution Ratio	Standard 1:1.25
Roller Hardness	HRC 50-60
Power Consumption	Approx. 2800W
Protection Device	Emergency security system
Dimensions (WDH)	9605501150 mm
Power Source	AC380V, 15A
Weight	Approx. 380kg

Machine Features

Rolls constructed from chilled cast iron with hollow and drilled roll structures
Available in smooth surface, full grooved, and half grooved configurations
Roller bearing support for energy efficiency, reduced noise, and durability
Multiple lubrication options including grease and oil systems
Roll nip adjustment via manual, power, or hydraulic methods
Hydraulic adjustment with automatic control and enhanced safety protection
Optional pressure sensor system for direct working pressure display
Automatic shutdown during overload conditions with peak value storage and printing
Compatible with various stock blenders based on processing requirements

Intelligent Control System

Real-time data recording and export of kneading time, temperature, ram pressure, current, torque, and recipe code
Control system configurable with up to 20 mixing steps and 20 recipe storage spaces
Remote process recipe import and data monitoring capability
Ethernet communication interface for MES integration
Touch screen interface with reserved control points for expansion

Documentation Download

ZL-3018 Two Roll Mill Technical Brief (PDF)
