|Product Name:||PLC Controlled Rubber / Plastic Two Roll Mill||Controller:||PLC Touch Screen|
|Roll Temperature:||Room Temperature -- 300℃||Roll Hardness:||HRC 50 ~ 60|
|Safety Device:||It Have 6 Safety Buttons And Safety Guard Is Option||Temperature Accuracy:||± 2 ℃|
|Key Words:||PLC Touch Screen|
rubber tensile testing machine,
rubber hardness tester

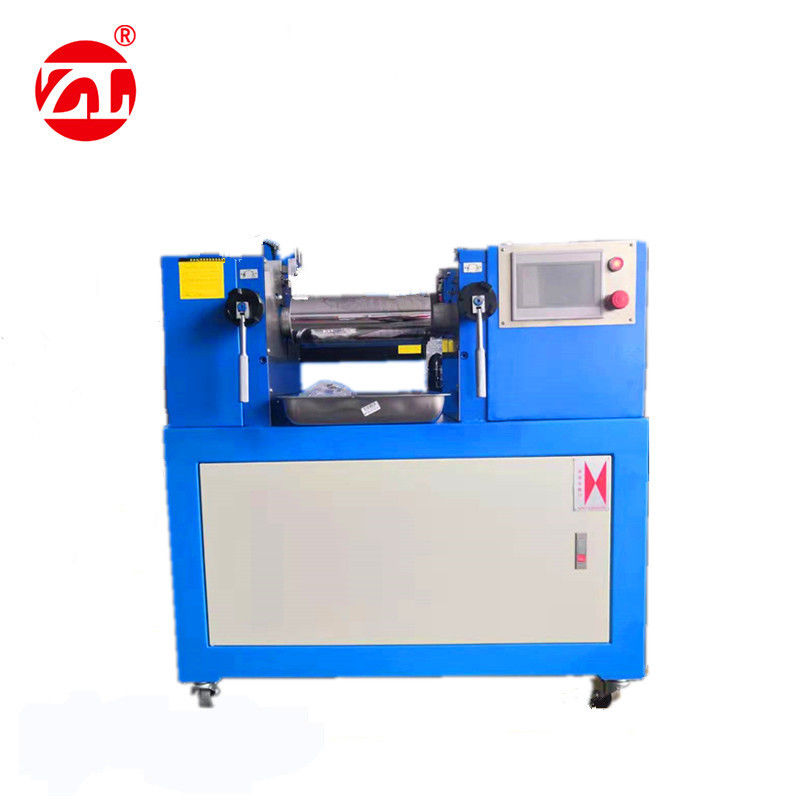

PLC Controlled Rubber / Plastic Two Roll Mill , Lab Mixing Mill
New type PLC controlled two roll mixing machine are engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory
PLC Controlled Rubber / Plastic Two Roll Mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.
1. Methods of adjusting roll nip: manual or electric.
2. We can design speed ratio as per customers' formula and processing requirements.
3. Human nature designed controlling system ensure labor safety.
4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.
5 Construction of mill rolls: drilled roll, bored roll, grooved roll
6 Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.
7 Frame, frame cap and base are welded and treated by annealing for stress relieving.
8 Brake and emergency stop device can ensure the safety of personnel and equipment.
PLC control system
1.The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
|Diameter of roll||mm||76||120||160||200||230||300||400|
|Length of roller face||mm||300||350||350||500||650||650||900|
|Front roll surface speed||rpm||19||19||19||19||19||19||19|
|Roll gap range||mm||0-3||0-6||0-6||0-8||0-12||0-12||0-15|
|Heating Mode||Electricity heating , Oil Heating ( option)|
|Cooling Mode||Water Cooling ( option)|
|Roll Temperature||Room temperature -- 300℃|
|Roll Hardness||HRC 50 ~ 60|
|Temperature Accuracy||± 2 ℃ (we adopt the high accuracy PID micro computer controller)|
|Safety device||It have 6 safety buttons and safety guard is option|
|Power||380V 3 phase 50-60hz|
