Usage:: | Universal Testing Machine | Max Load:: | 300 KN |
---|---|---|---|
Test Force Measuring Range KN:: | 4%-100%FS | Error:: | ≤indicating Value±1% |
Test Force Resolution:: | 0.01 KN | Displacement Measurement Resolution:: | 0.01mm |
Compression Space:: | 380mm | Warranty: | 12 Month |
High Light: | universal test equipment,tensile strength testing machine |
1.Introduction:

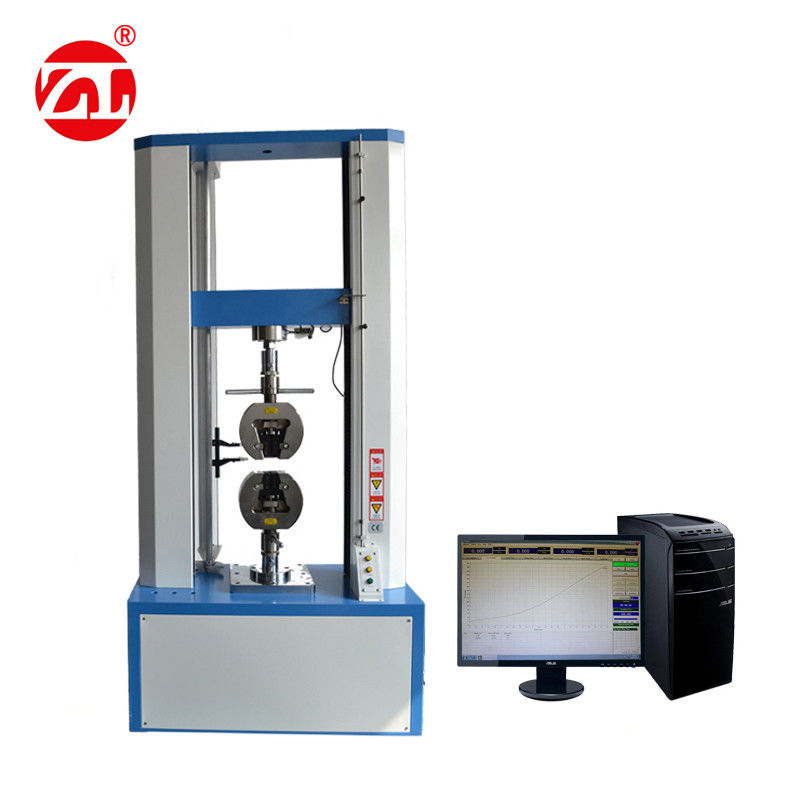

100KN Servo 2 Column Tensile Universal Testing Machine is mainly used for metal and nonmetal materials tensile, compression, bending and other mechanical properties testing, accompanied by increased shear shear test can be done.The machine is equipped with computers, printers, electronic extensometer, universal testing optical encoders and software, can accurately determine the metal material tensile strength, yield strength, provides that non-proportional extension strength, elongation, modulus and other mechanical properties.
ZL-8006B 20T computer servo type universal testing...
2.Hydraulic System:
The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil pump transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing through and through oil return valve to tank.
3.Technical specifications:
Product Name | ZL-8006D |
Max load | 300 KN |
Range | whole journey didn't sub-file ,equivalent 3 grade |
Test force measuring range KN | 4%-100%FS |
Test Force showed the relative error | ≤indicating value±1% |
Test Force Resolution | 0.01kN |
Displacement measurement resolution | 0.01mm |
Deformation measurement accuracy | ±0.5%FS mm |
Maximum tensile test space mm | 550 or customize |
Compression space mm | 380 or customize |
Diameter of round specimen clamp jaw mm | Φ6-Φ26 |
Thickness of flat specimen clamping jaws | 0-15 mm |
Maximum clamping width of the flat specimen | 70 mm |
Maximum clamping width of | 2 |
Shear specimen diameter mm | 10 |
Upper and lower compression plate size | Φ160(option 204×204) mm |
Clamping method | Automatic clamping |
The maximum distance between the | 450 |
Space stretching from the two pillars distance | 700 |
Pump motor power | 1.1 KW |
Beam moves up and down motor fixed rate | 0.75 KW |
Net weight | 1700 KG |
