Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Temperature Range: | Room Temperature~200°C |
|---|---|---|---|
| Temperature Resolution: | 0.3°C | Motor Roating Speed: | 100 Times/min |
| Torque Resolution: | 100 Times/min | Torque Range: | 0-5N.M,0-10N.M,0-20N.M |
| Air Compression: | 0.5Mpa~0.65Mpa | Warranty: | 24 Month |
| Sway Angle: | ±0.5°, ±1°, ±3° | ||
| High Light: | rubber tensile testing machine,rubber testing equipments |
||

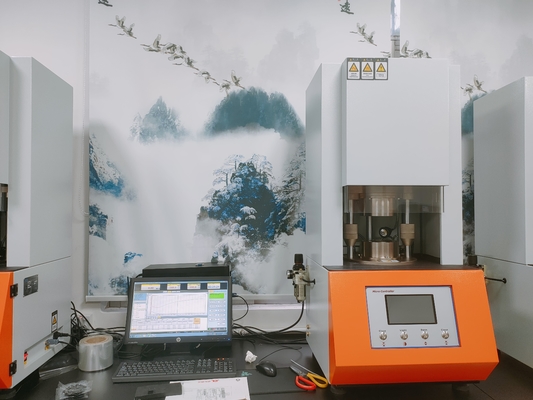

200T Oscillating Disk Rubber Vulcameter , Rubber Plastic MDR Moving Die Rheometer
The main technical parameters:
| Model | 200T Oscillating Disk Rubber Vulcameter , Rubber Plastic MDR Moving Die Rheometer |
| Temperature tester | Room temperature to 200°C |
| Temperature accuracy | ≤ ±0.3°C |
| Temperature resolution | 0.1°C |
| Torque range | 0-5N.M,0-10N.M,0-20N.M |
| Torque resolution: | 0.001NM |
| Motor rotating speed | 100 times / min |
| Rotor range | Adopt 4 setting: 25, 50, 100, 200lbs per inch |
| Die cavity frequency | 1.7Hz |
| Sway angle | ±0.5°, ±1°, ±3° |
| Air compression | 0.5Mpa--0.65MPa |
| Ambient temperature | 0-35°C |
| Test result |
Printing:date,time,temperature,vulcanization curve,temperature curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2. |
| Dimension | 131*56*62cm |
| Power | Single phase, 220V±10%, 50Hz |
| Display | Windows 7 + software |
| Weight |
250kg |
Related Machine:
1.Banbury Mixer 2.Vulcanizing Press Machine
3.Rubber Mixing Mill 4.Three-Roll Grinding Mill
5.Injection Moulding Machine 6.Moving Die Rheometer
Catalog about Rubber Products:
Summary:

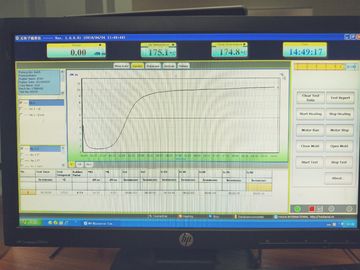

The use of single-chip control, including: host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical interlocking and other components. The measurement and temperature control circuit consists of a temperature controller, a platinum resistor, and a heater. It can automatically track changes in the power grid and ambient temperature, automatically correct PID parameters, and achieve rapid and accurate temperature control. The data acquisition system and the electromechanical chain complete the automatic detection of the torque signal of the rubber vulcanization process, automatic real-time display of temperature and set values. After vulcanization is completed, automatic processing, automatic calculation, printing vulcanization curve and process parameters. Show vulcanization time, sulfurizing power torch.
Corresponding standard:
Accord with GB/T16584”rubber- no rotor rheometer to measure the characteristics of vulcanized”ISO6502:1991
and ASTMD5289-95
