Product Details:
Payment & Shipping Terms:
|
| Power: | 220v 50hz | Impact Velocity: | 3.5m/s |
|---|---|---|---|
| Center-to-center Distance: | 335mm | Standards: | IS0 180 |
| Color: | Blue Or Customized | Warranty: | 12 Month |
| High Light: | rubber tensile testing machine,rubber testing equipments |
||

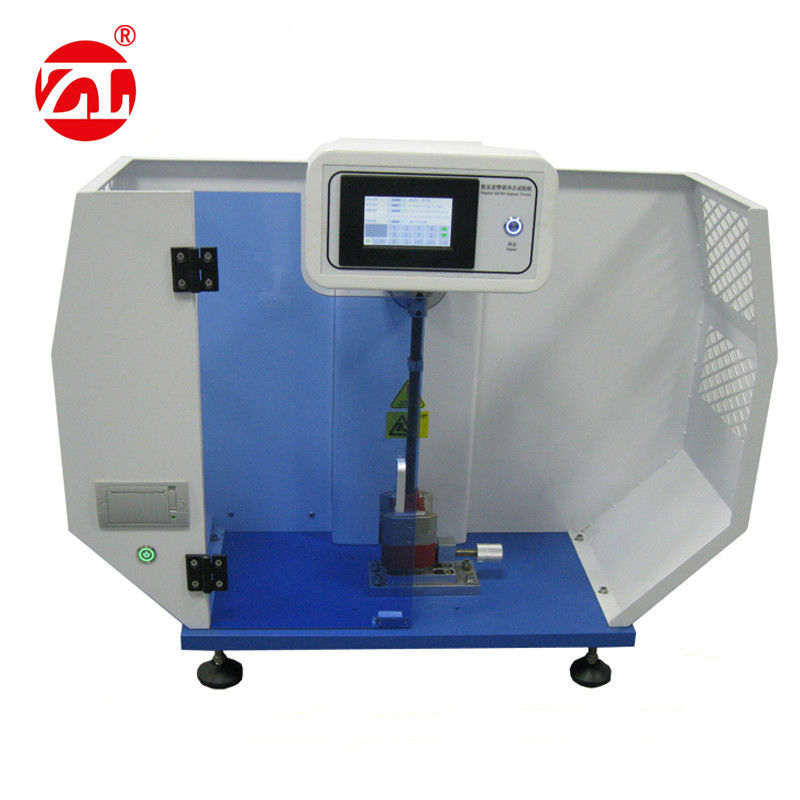

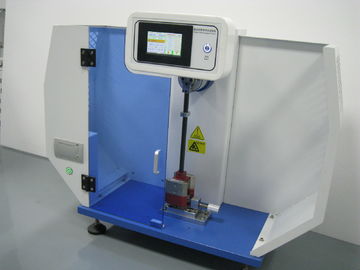

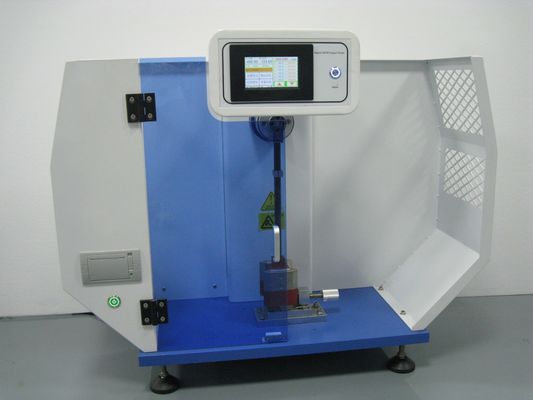

Digital type Charpy Impact Tester for plastic pipes, plates, profiles and engineering plastics, fiberglass,
ceramics, cast stone, insulation materials and other non-metallic materials resistant to impact toughness.
Machine performance:
Clamp jaws wedge from mouth, clamping freely, fast clamping, is the latest development of our new
products.
Standards: IS0 180, GB / T 1843, GB / T 2611,JB / T 8761
Specifications:
| Model | Digital type Charpy Impact Tester | |
| Charpy energy | 1,2.75,5.5 J | 11,22 J |
| Impact velocity | 3.5m/s | 3.5m/s |
| Pendulum elevation | 150° | |
| Center-to-center distance of the pendulum sample | 335mm | 335mm |
| Pendulum torque |
PL1=0.53590 Nm PL2.75=1.47372 Nm PL5.5=2.94744 Nm |
PL11=5.8949Nm PL22=11.7898Nm |
| Impact of the blade radius | R=22±0.2mm | |
| Sample Size Type |
80*10*4mm 63.5*12.7*3.2mm 63.5*12.7*6.4mm 63.5*12.7*12.7mm |
80*10*4mm 63.5*12.7*3.2mm 63.5*12.7*6.4mm 63.5*12.7*12.7mm |
