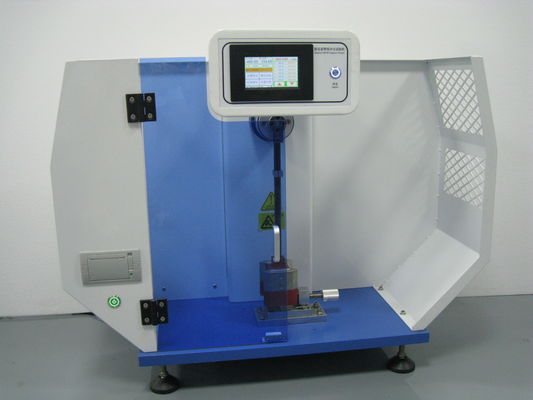

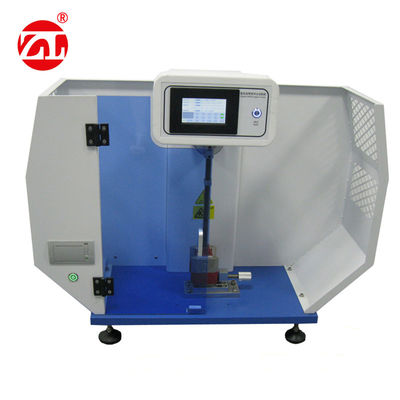

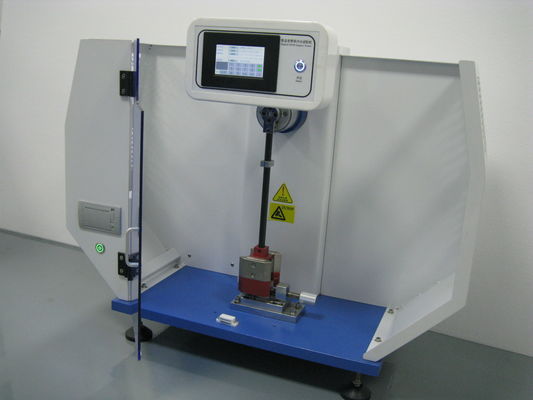

5.5J Digital Charpy IZOD Impact Tester for Rubber and Plastic ISO 180 Compliant

Large Image : 5.5J Digital Charpy IZOD Impact Tester for Rubber and Plastic ISO 180 Compliant

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3016A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IS0 180 5.5J Digital Rubber Plastic Charpy IZOD Impact Testing Equipment is Packaged in wooden case.
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Product Name:	IS0 180 5.5J Digital Rubber Plastic Charpy IZOD Impact Testing Equipment	Power:	220v 50hz
Impact Velocity:	3.5m/s	Center-to-center Distance:	335mm
Standards:	IS0 180	Color:	Blue Or Customized
Warranty:	24 Month	Key Words:	Charpy IZOD Impact
Highlight:	rubber tensile testing machine , rubber testing equipments

ISO 180 5.5J Digital Rubber Plastic Charpy IZOD Impact Testing Equipment

Product Overview

5.5J Digital Rubber Plastic Charpy IZOD Impact Testing Equipment for evaluating impact toughness of various materials.

Download Brief:

ZL -3016E Digital IZOD and Charpy Impact Testing Machine PDF

Compliance Standards

ISO 180, GB/T 1843, GB/T 2611, JB/T 8761

Technical Specifications

Model	Digital type Charpy Impact Tester
Charpy energy	1, 2.75, 5.5 J \| 11, 22 J
Impact velocity	3.5m/s \| 3.5m/s
Pendulum elevation	150°
Center-to-center distance of the pendulum sample	335mm \| 335mm
Pendulum torque	PL1=0.53590 Nm PL2.75=1.47372 Nm PL5.5=2.94744 Nm \| PL11=5.8949Nm PL22=11.7898Nm
Impact of the blade radius	R=22±0.2mm
Sample Size Type	80104mm, 63.512.73.2mm, 63.512.76.4mm, 63.512.712.7mm

Application

Digital type Charpy Impact Tester is designed for testing impact toughness of plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials.

Machine Performance

Features Izod clamp jaws with wedge design for free and fast clamping. This represents our latest product development with enhanced operational efficiency.

Frequently Asked Questions

How to choose the most suitable Mechanical Equipment?

Our professional team will provide optimal recommendations based on your testing requirements and specifications.

What's the delivery term?

Typically available from stock. For custom orders, delivery time is 15-20 working days after deposit receipt. Expedited arrangements available for urgent needs.

Do you accept customization service?

Yes, we offer both standard machines and customized solutions tailored to your specific requirements.

Can we visit your factory before order?

Yes, we warmly welcome factory visits and can assist with hotel arrangements and airport pickup.

Do you have customers of our country before?

Our testing machines are exported to over 95 countries worldwide including USA, Canada, Russia, UK, Italy, Germany, and many others across Europe, Asia, and South America.

How about your warranty?

Standard two-year warranty including technical support, replacement parts, and on-site engineering service when necessary.

How about the packing for machine?

All machines are packed in standard export wooden boxes to ensure safe transportation by sea or air.

What is the order process?

Inquiry → Quotation → Communication → Order Confirmation → Deposit Payment → Production → Testing & Debugging → Balance Payment → Packing → Delivery → Customer Receiving → After Service
