Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Temperature Range: | Room Temperature~200°C |
|---|---|---|---|
| Temperature Resolution: | 0.1°C | Motor Roating Speed: | 100 Times/min |
| Torque Resolution: | 100 Times/min | Torque Range: | 0-5N.M,0-10N.M,0-20N.M |
| Air Compression: | 0.5Mpa~0.65Mpa | Warranty: | 12 Month |
| Highlight: | rubber tensile testing machine,rubber hardness tester |
||

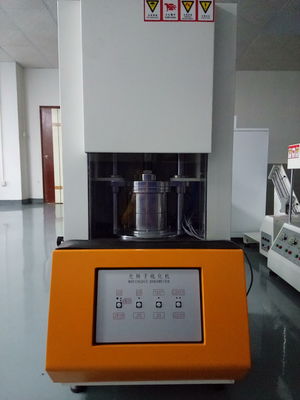

Lab Used Single - Chip Control Rheometer Rubber Testing Machine Without Rotor
The main technical parameters:
| Model | Without Rotor Rheometer Rubber Testing Machine |
| Temperature tester | Room temperature to 200°C |
| Temperature accuracy | ≤ ±0.3°C |
| Temperature resolution | 0.1°C |
| Torque range | 0-5N.M,0-10N.M,0-20N.M |
| Torque resolution: | 0.001NM |
| Motor rotating speed | 100 times / min |
| Rotor range | Adopt 4 setting: 25, 50, 100, 200lbs per inch |
| Die cavity frequency | 1.7Hz |
| Sway angle | ±0.5°, ±1°, ±3° |
| Air compression | 0.5Mpa--0.65MPa |
| Ambient temperature | 0-35°C |
| Test result |
Printing:date,time,temperature,vulcanization curve,temperature curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2. |
| Dimension | 131*56*62cm |
| Power | Single phase, 220V±10%, 50Hz |
| Display | Windows 7 + software |
| Weight |
250kg |
Summary:
The use of single-chip control, including: host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical interlocking and other components. The measurement and temperature control circuit consists of a temperature controller, a platinum resistor, and a heater. It can automatically track changes in the power grid and ambient temperature, automatically correct PID parameters, and achieve rapid and accurate temperature control. The data acquisition system and the electromechanical chain complete the automatic detection of the torque signal of the rubber vulcanization process, automatic real-time display of temperature and set values. After vulcanization is completed, automatic processing, automatic calculation, printing vulcanization curve and process parameters. Show vulcanization time, sulfurizing power torch.
Corresponding standard:
Accord with GB/T16584”rubber- no rotor rheometer to measure the characteristics of vulcanized”ISO6502:1991 and ASTMD5289-95
Download Brief:
ZL-3001 No Rotor Rheometer.pdf
We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.
Throughout its more than 14 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 95 countries these years,especially favored by European and American countries.
Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.
In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
