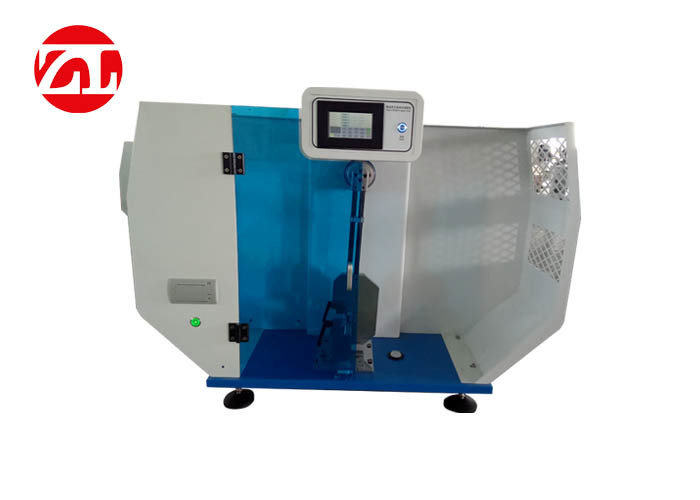

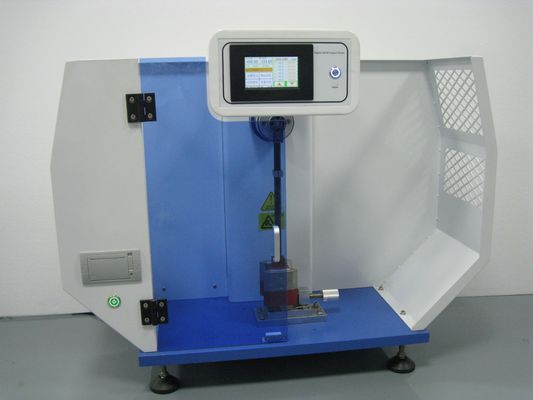

150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine

150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine
150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine
video play

Large Image :  150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-3016D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaged in wooden case (fumigation free)
Delivery Time: 5-7 days
Supply Ability: 100 set per month
Detailed Product Description
Power: Electronic Charpy Energy: 7.5J,15J,25J,50J
Impact Velocity: 3.8 M/ S Pendulum Elevation: 160°
Center-to-center Distance: 380mm Pendulum Torque: Pd2=1.0311N.m
Product Name: 150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine Key Words: Charpy IZOD Impact
High Light:

rubber testing equipments

,

rubber hardness tester

150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine​





Download Brief:

ZL -3016E Digital IZOD and Charpy Impact Testing m...



Machine performance:



Izod clamp jaws wedge from mouth, clamping freely, fast clamping, is the latest development of our new

products.



Introduce:



Digital type Charpy Impact Tester for plastic pipes, plates, profiles and engineering plastics, fiberglass,

ceramics, cast stone, insulation materials and other non-metallic materials resistant to impact toughness.



Standards: IS0 180, GB / T 1843, GB / T 2611,JB / T 8761



Specifications:



Model Hot Sale Digital Charpy Izod Impact Tester Price
Charpy energy 1,2.75,5.5 J 11,22 J
Impact velocity 3.5m/s 3.5m/s
Pendulum elevation 150°
Center-to-center distance of the pendulum sample 335mm 335mm
Pendulum torque

PL1=0.53590 Nm

PL2.75=1.47372 Nm

PL5.5=2.94744 Nm

PL11=5.8949Nm

PL22=11.7898Nm

Impact of the blade radius R=22±0.2mm
Sample Size Type

80*10*4mm

63.5*12.7*3.2mm

63.5*12.7*6.4mm

63.5*12.7*12.7mm

80*10*4mm

63.5*12.7*3.2mm

63.5*12.7*6.4mm 63.5*12.7*12.7mm



150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine 0



150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine 1
