ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance

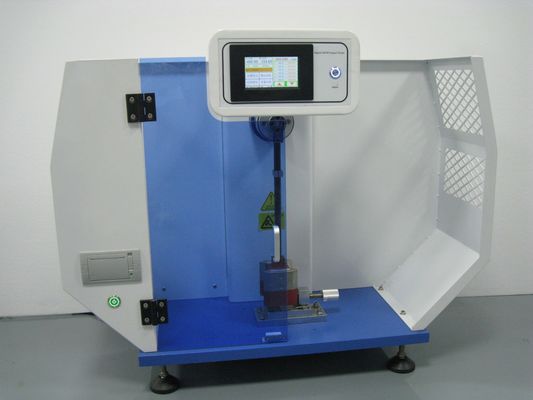

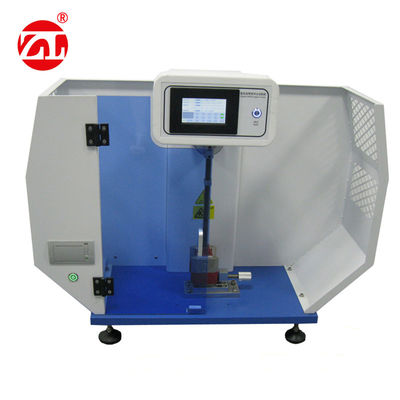

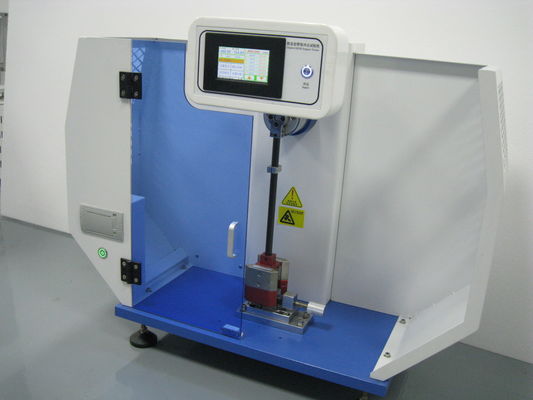

Large Image : ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3016B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged in wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Impact Velocity:	3.5m/s
Center-to-center Distance:	335mm	Standards:	IS0 180
Color:	Blue Or Customized	Warranty:	12 Month
Highlight:	rubber tensile testing machine , rubber testing equipments

ISO 180 Electronic Charpy Impact Mechanical Testing Machine For Rubber Plastic

Product Overview

Digital Charpy Impact Tester designed for testing plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials for impact toughness resistance.

Key Features

Clamp jaws wedge from mouth design for free and fast clamping
Latest development with advanced clamping technology
Digital display for precise measurement

Compliance Standards

ISO 180, GB/T 1843, GB/T 2611, JB/T 8761

Technical Specifications

Model	Digital type Charpy Impact Tester
Charpy Energy	1, 2.75, 5.5 J \| 11, 22 J
Impact Velocity	3.5 m/s
Pendulum Elevation	150°
Center-to-Center Distance	335 mm
Pendulum Torque	PL1=0.53590 Nm, PL2.75=1.47372 Nm, PL5.5=2.94744 Nm \| PL11=5.8949 Nm, PL22=11.7898 Nm
Impact Blade Radius	R=22±0.2 mm
Sample Size Types	80×10×4 mm, 63.5×12.7×3.2 mm, 63.5×12.7×6.4 mm, 63.5×12.7×12.7 mm
