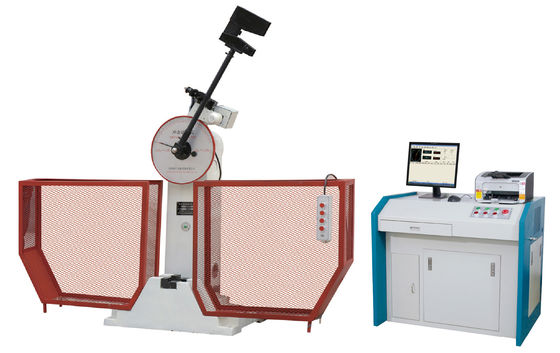

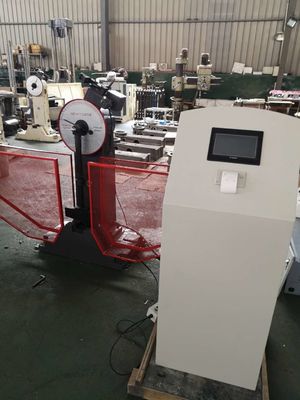

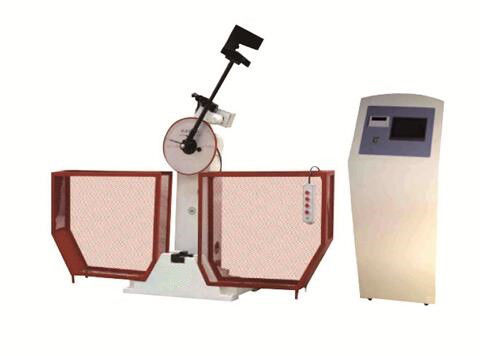

U-Shaped Pendulum Digital Charpy Impact Testing Machine with 300J Impact Energy and Touch Screen Control

Large Image : U-Shaped Pendulum Digital Charpy Impact Testing Machine with 300J Impact Energy and Touch Screen Control

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3016F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Metal impact testing machine is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J ）	Impact Energy:	300J (large Hammer) 150 (small Hammer)
Impact Speed:	5.2m/s	Pendulum Pre-angle:	150 °
Sample Support Span:	40mm	Impact Blade Fillet:	R2.0~2.5mm R8mm
Angle Accuracy:	± 0.1 °	Key Words:	Charpy Metal Impact
Highlight:	rubber tensile testing machine , rubber testing equipments

U-Shaped Pendulum Digital Charpy Metal Impact Testing Machine (150J / 300J)

Product Overview

The U-Shaped Pendulum Digital Charpy Metal Impact Testing Machine is a sophisticated semi-automatic testing system designed for precise impact testing of metallic materials. Featuring touch screen control and digital display, this advanced testing machine offers high accuracy and efficiency for industrial applications.

Key Features

Touch screen operation with PLC control for automated testing processes

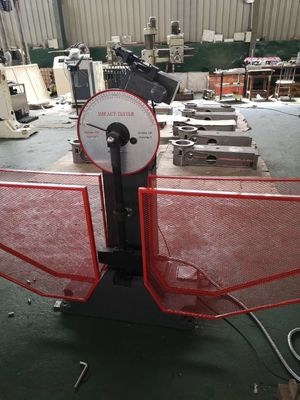

U-shaped pendulum design ensures accurate strike center and precise pendulum torque
Screw-fixed impact knife for easy and convenient replacement
Comprehensive safety features including protection pins and safety net
Automatic pendulum swing, impact, measurement, calculation, and digital display
High-speed angle sensor with sampling, storage, and calculation capabilities
Automatic energy recovery system prepares pendulum for next test

Technical Specifications

Parameter	Specification
Impact Energy	300J (large hammer) / 150J (small hammer)
Impact Speed	5.2 m/s
Pendulum Pre-angle	150°
Sample Support Span	40mm
Support Jaws Rounded	R1.0~1.5mm
Impact Blade Fillet	R2.0~2.5mm R8mm
Pendulum Center to Impact Point	750mm
Standard Sample Size	10 (7.5, 5) × 10 × 55mm
Power Requirements	Three-phase four-wire 50Hz 380V
Angle Accuracy	±0.1°
Host Dimensions	2000 × 650 × 1960mm
Display Cabinet Dimensions	360 × 400 × 1200mm
Weight	Approximately 550Kg
Operating Environment	No corrosive media, vibration, or strong electromagnetic field interference

Standard Equipment Configuration

300 joules host unit
150J and 300J pendulums (one each)
Motor (mounted on main unit)
Pendulum transmission device set
Automatic hanging device set
Safety protection mechanism set
Safety protection devices
Supporter (installed on main unit)
Sample centering device
Proximity switch

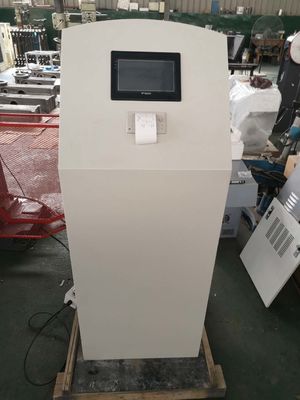

Touch screen display set
Micro printer (optional)
Pendulum remover

Touch Screen Operation Features

Bilingual Interface: Supports Chinese and English operating languages with easy switching capability
Semi-Automatic Operation: Manual pendulum placement and sample discharge with automatic impact and data calculation
Data Storage: Capacity to store 100 sets of experimental data including test parameters and results
Print Function: Optional micro printer for immediate test data output
Multi-Level Energy Support: Compatible with multiple impact pendulums of different energy levels

Interface Overview

The system features six comprehensive screen interfaces available in both Chinese and English versions:

Boot language selection interface
Main operation interface for device control
Memory recall interface for data access
Password input interface for system security
System settings interface for configuration
Print screen interface for report generation
