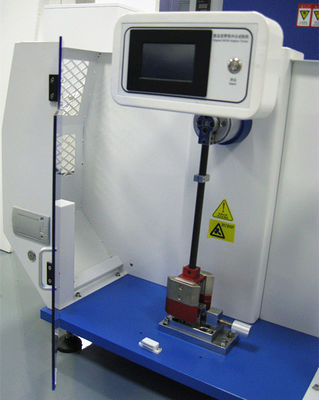

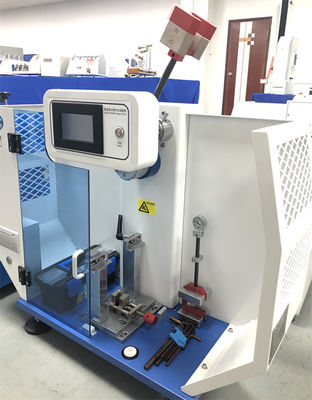

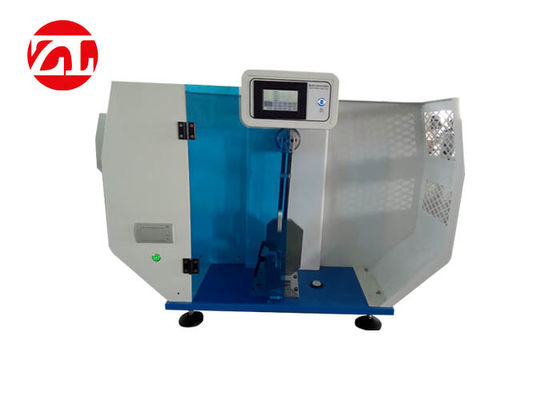

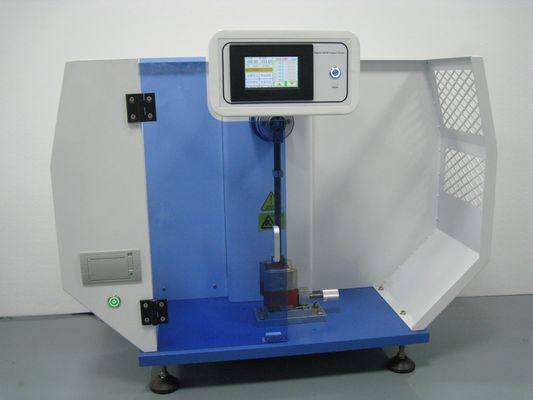

150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity

Large Image : 150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3016D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged in wooden case （fumigation free）
Delivery Time:	5-7 days
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	Electronic	Charpy Energy:	7.5J,15J,25J,50J
Impact Velocity:	3.8 M/ S	Pendulum Elevation:	160°
Center-to-center Distance:	380mm	Pendulum Torque:	Pd2=1.0311N.m
Product Name:	150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine	Key Words:	Charpy IZOD Impact
Highlight:	rubber testing equipments , rubber hardness tester

150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine

Product Overview

The 150° Pendulum Elevation Charpy IZOD Impact Testing Machine is a precision instrument designed for evaluating the impact toughness of various materials including plastics, rubber, and other non-metallic substances.

Technical Documentation

Download Technical Brief: ZL-3016E Digital IZOD and Charpy Impact Testing Machine

Machine Performance Features

Izod clamp jaws wedge from mouth design for optimal clamping
Free and fast clamping mechanism
Latest development featuring advanced engineering

Application Scope

Digital type Charpy Impact Tester suitable for plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials requiring impact toughness evaluation.

Compliance Standards

ISO 180, GB/T 1843, GB/T 2611, JB/T 8761

Technical Specifications

Parameter	Specification
Charpy Energy	1, 2.75, 5.5 J \| 11, 22 J
Impact Velocity	3.5 m/s
Pendulum Elevation	150°
Center-to-Center Distance	335 mm
Pendulum Torque	PL1=0.53590 Nm, PL2.75=1.47372 Nm, PL5.5=2.94744 Nm \| PL11=5.8949 Nm, PL22=11.7898 Nm
Impact Blade Radius	R=22±0.2 mm
Sample Size Types	80×10×4 mm, 63.5×12.7×3.2 mm, 63.5×12.7×6.4 mm, 63.5×12.7×12.7 mm

Product Images
