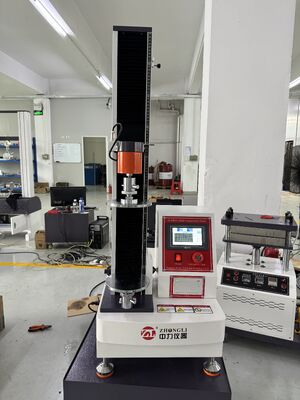

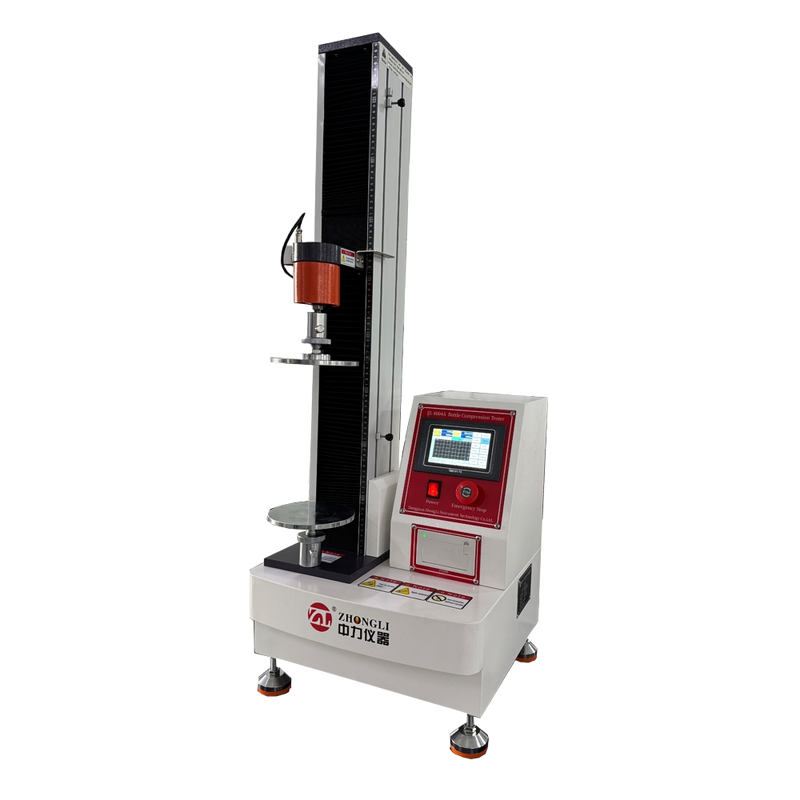

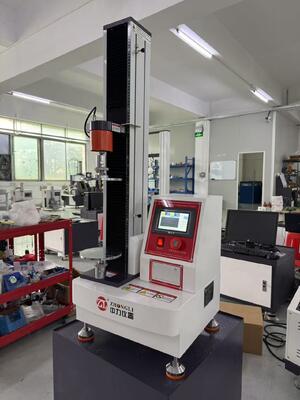

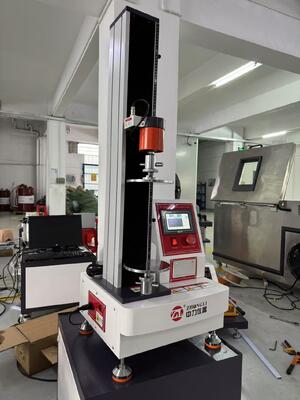

Desktop Single Column Universal Tensile Tester Plastic Bottle Cup Compression Testing Machine

Large Image : Desktop Single Column Universal Tensile Tester Plastic Bottle Cup Compression Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8004A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS1800
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Desktop Single Column Universal Tensile Tester	Capacity Selection:	2, 5, 10, 20, 50, 100, 200kg (optional,can Be Customized)
Force Measurement Accuracy:	Within ±0.5% Of Indicated Value	Unit Switching:	Kg, Lb, N
Data Sampling Frequency:	200 Times/sec	Effective Test Width:	150mm
Effective Stretching Space:	500mm (excluding Fixtures)	Test Speed Range:	0.01–500mm/min

Desktop Single Column Universal Tensile Tester Plastic Bottle Cup Compression Testing Machine

Equipment Overview

The ZL-8004A Electronic Tensile Testing Machine is a compact, benchtop unit featuring simple design and easy operation. It utilizes an electronic control system with a speed-regulating motor that drives a T-screw through a gear mechanism, moving the load sensor up or down to perform tensile (pulling) or compression (pushing) tests on samples.

Real-time force measurement and test speed are displayed on the screen. With straightforward operation, it's particularly well-suited for quality control on production lines. This model is designed for non-metallic and metallic materials with test loads up to 2000N.

Main Functions

This versatile testing machine handles multiple test types including:

Tension (pulling)
Compression (pushing)
Bending
Shearing
Peeling (at 90° or 180°)
Tearing
Two-point elongation (requires optional extensometer)

Suitable for testing materials and products across various industries—textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic films, composites, electronics, metals, and more. These tests help determine product quality and performance.

Key Features

Attractive, Durable Design

Aluminum profiles with electrostatic spray finish provide a premium appearance comparable to high-end imported machines.

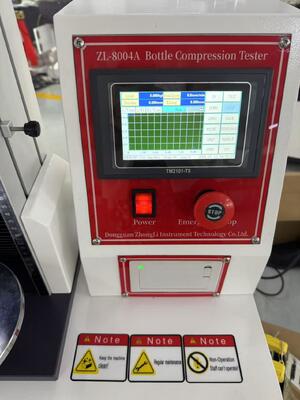

Clear Digital Display

Backlit LCD screen clearly shows force values and distinguishes between tension and compression readings, easily readable in low-light conditions.

Multiple Measurement Units

Choose between N, kgf, or lbf with automatic switching capability as needed.

Peak Value Capture

Captures and displays peak force values for both tension and compression directions in a single test, with manual reset capability.

Safety Protections

Includes both travel limit and overload stop functions for safe operation.

Compact and User-Friendly

Single-column benchtop design is sleek and space-saving, comfortable for seated operation and daily use.

Standards Compliance

This machine meets the requirements of the following ASTM standards:

ASTM D1004
ASTM D882
ASTM D638
ASTM D1693
ASTM D3330
