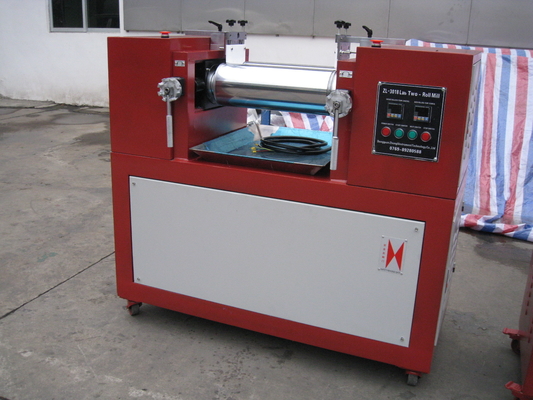

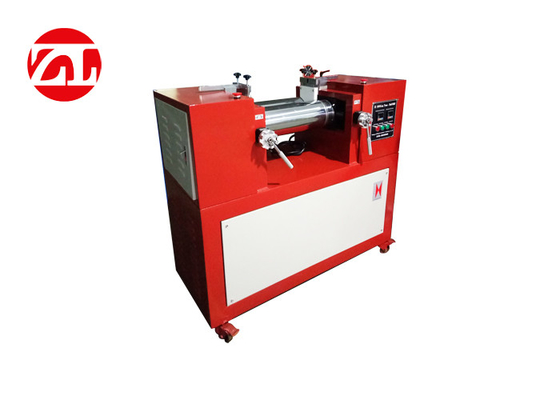

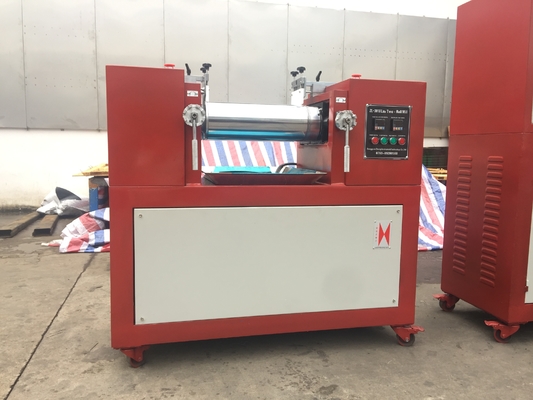

XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
Application:
It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.
ZL-3018 Two roll mill.pdf
How to mix the rubber compound with various compounding agents evenly?
On the open mill used for continuous operation, the rubber material is continuously added from one end of the roller, repeatedly passes through the roller several times according to the time specified by the rubber mixing process, and the required rubber strip is continuously cut from the other end of the roller.
Technical parameters:
| |
|
|
|
|
|
|
|
|
| Roll Hardness |
HRC 50 ~ 60 |
| Temperature Accuracy |

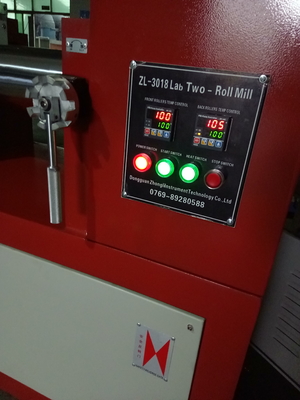

± 2 ℃ (we adopt the high accuracy PID micro computer controller)
| Model |
|
ZL-3018-76 |
ZL-3018-120 |
Zl-3018-160 |
ZL-3018-200 |
Zl-3018-230 |
Zl-3018-300 |
ZL-3018-400 |
| Diameter of roll |
mm |
76 |
120 |
160 |
200 |
230 |
300 |
400 |
| Length of roller face |
mm |
300 |
350 |
350 |
500 |
650 |
650 |
900 |
| Mixing Capacity |
kg |
0.002-0.6 |
0.002-2 |
0.002-2.8 |
0.002-5 |
0.005-10 |
1-15 |
5-30 |
| Front roll surface speed |
rpm |
19 |
19 |
19 |
19 |
19 |
19 |
19 |
| Friction ratio |
|
1:1.30 |
1:1.35 |
1:1.35 |
1:1.35 |
1:1.27 |
1:1.27 |
1:1.27 |
| Roll gap range |
mm |
0-3 |
0-6 |
0-6 |
0-8 |
0-12 |
0-12 |
0-15 |
| Driving Power |
KW |
1 |
1.5 |
2.2 |
7.5 |
11 |
30 |
37 |
| Heating Mode |
Electricity heating , Oil Heating ( option) |
| Cooling Mode |
Water Cooling ( option) |
| Roll Temperature |
Room temperature -- 300℃ |
|
| Safety device |

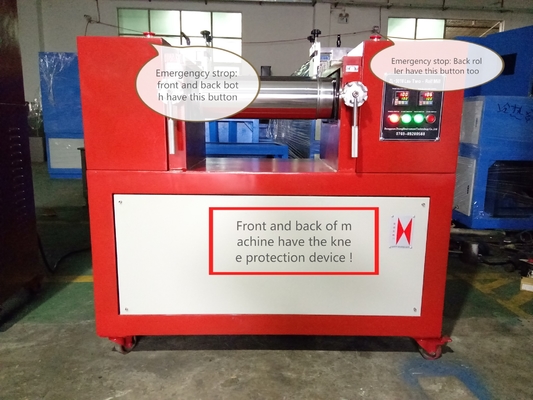

It have 6 safety buttons and safety guard is option |
| Machine weight |
kg |
160 |
460 |
660 |
860 |
1960 |
2960 |
3800 |
| Overall dimension |
mm |
1100x400x1180 |
1100x550x1380 |
1200x650x1380 |
2200x750x1380 |
2200x950x1580 |
2600x950x1580 |
5295x1789
x170
|
| Power |
380V 3 phase 50-60hz |
Advantage Service:
1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.
2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.
3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.
4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.
5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.
Technical Support:
1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;
2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.
