Customized PVC Mixer Used Mix Mill Rubber Machine Silicone Two Roll Open Mill

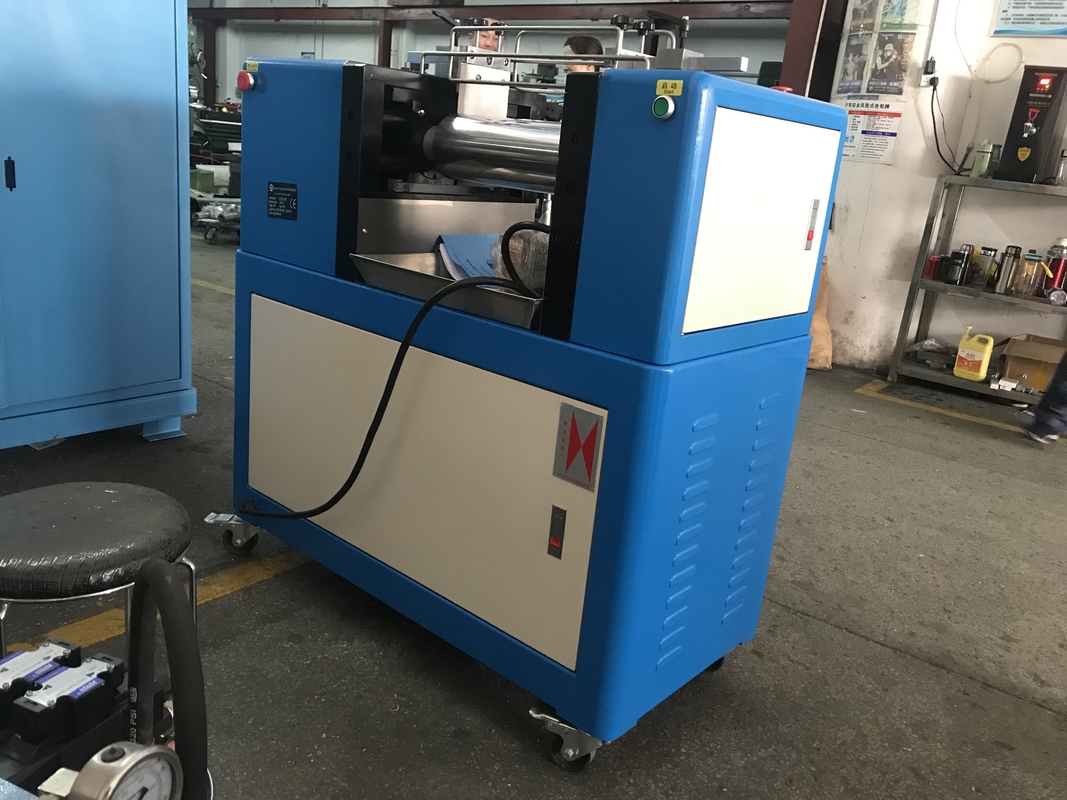

Large Image : Customized PVC Mixer Used Mix Mill Rubber Machine Silicone Two Roll Open Mill

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Blue (can Be Customized）
Highlight:	Customized PVC Two Roll Mill , 1kw Two Roll Mill , Silicone Rubber Two Roll Mill

Customized PVC Mixer & Rubber Processing Two Roll Open Mill

Professional-grade two roll mill designed for polymer mixing in rubber and plastics industries, featuring customizable configurations for PVC, silicone, and various polymer applications.

Applications

Widely utilized in rubber and plastics industries for polymer mixing applications including PVC processing, color master batch production, silicone compounding, and various polymer blending operations.

Product Overview

The Two Roll Mill serves multiple industries including rubber products, plastics manufacturing, polyolefin processing, PVC production, film and coil manufacturing, profile production, polymer blending, pigment dispersion, masterbatch preparation, and stabilizer compounding.

Safety Features: Equipped with emergency protection system enabling immediate machine stoppage or reversal during operational emergencies. Optional safety guards available for enhanced protection.

Technical Specifications

Roll Hardness: HRC 50-60
Temperature Accuracy: ±2°C (High-accuracy PID micro computer controller)
Heating Options: Electric Heating, Oil Heating (optional)
Cooling Options: Water Cooling (optional)
Temperature Range: Room temperature to 300°C
Power Requirements: 380V 3-phase 50-60Hz
Safety System: 6 emergency stop buttons with optional safety guards

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap (mm)	Drive Power (kW)	Machine Weight (kg)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800

Manufacturing Advantages

Dedicated R&D and design departments for standard and custom machine solutions
Over 50 years of manufacturing expertise with advanced machinery and skilled craftsmanship
Dual laboratory facilities: Environmental laboratory and Physical testing laboratory
Adequate monthly inventory to accommodate urgent customer requirements
Annual sales exceeding $1,000,000 with 30,000㎡ manufacturing base and 120 technical staff
Capability to manage large-scale budget projects efficiently

Technical Excellence

Precision laser-cut SUS stainless steel plates for optimal accuracy
Anti-rust electrostatic painting on all machine surfaces
Premium imported electronic components from ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-quality imported compressors from BOEK and TECUMSEH
Engineered for extended service life exceeding 10 years
