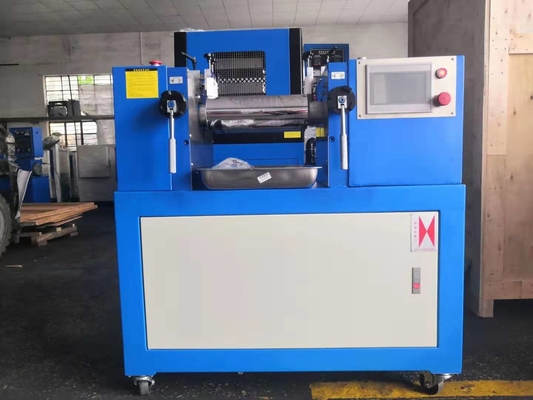

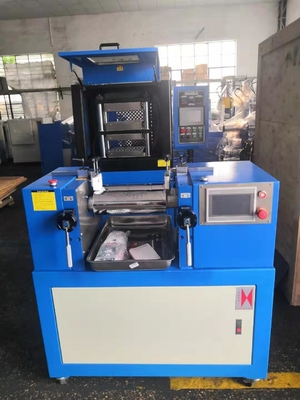

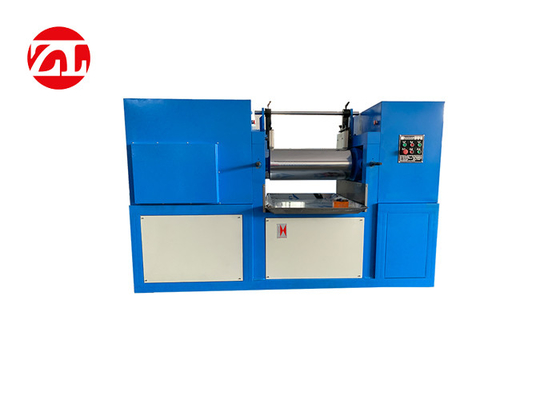

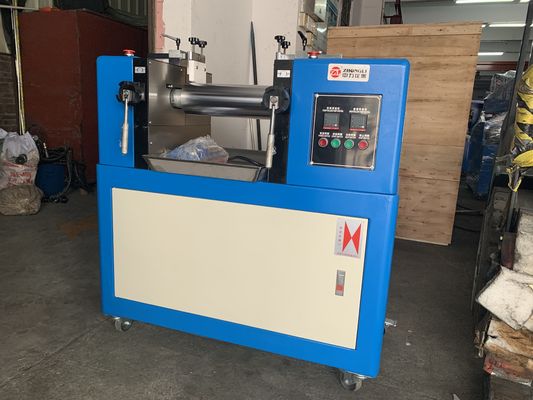

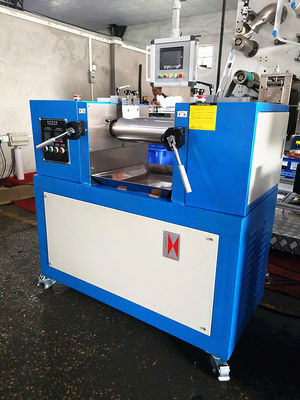

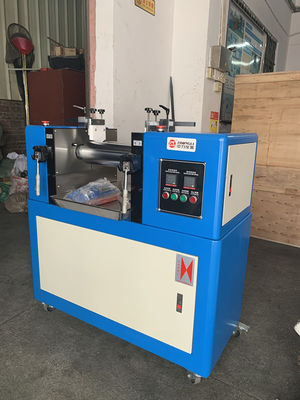

XK-450 Laboratory PVC Mixer Rubber Mill Rubber Open Mixing Mill Machine

Large Image : XK-450 Laboratory PVC Mixer Rubber Mill Rubber Open Mixing Mill Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018
Document:	ZL-3018A Rubber Plastic Two...ll.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	XK-450 Laboratory PVC Mixer Rubber Mill Rubber Open Mixing Mill Machine	Length Of Roller Face:	350mm
Mixing Capacity:	0.002-2.8kg	Roll Hardness:	HRC 50 ~ 60
Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option	Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)
Power:	380V 3 Phase 50-60hz	Driving Power:	1kw
Color:	Red (can Be Customized）
Highlight:	Rubber Open Mixing Mill , PVC Open Mixing Mill , Laboratory PVC Two Roll Mill

XK-450 Laboratory PVC Mixer Rubber Mill Rubber Open Mixing Mill Machine

This laboratory open mixing mill machine is specifically designed for polymer mixing in the rubber and plastics industry, including applications with PVC and color master batch. The system comprises rolls, bearings, gap adjusting devices, electric control systems, and comprehensive safety features.

Technical Documentation

ZL-3018 Two Roll Mill Technical Specifications (PDF)

Plasticizing Process Explanation

The open mill converts high elastic raw rubber into plasticized rubber through the shearing and squeezing action of two counter-rotating rollers. This process breaks the original macromolecular chains, reducing elasticity and improving plasticity for subsequent manufacturing steps.

Primary plasticizing methods include the wrap-roll plasticizing method and thin-pass plasticizing method.

Technical Specifications

Roll Hardness: HRC 50 ~ 60

Temperature Accuracy: ± 2 ℃ (utilizing high-accuracy PID micro computer controller)

Parameter	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800

Heating Mode: Electricity heating, Oil Heating (optional)

Cooling Mode: Water Cooling (optional)

Roll Temperature: Room temperature - 300℃

Safety Device: 6 safety buttons with optional safety guard

Power Requirements: 380V 3 phase 50-60hz

Manufacturing Advantages

Comprehensive R&D and design department capable of providing standard and custom machine solutions
Over 50 years of manufacturing experience with advanced machinery and sophisticated craftsmanship
Two specialized laboratories: Environmental laboratory and Physical laboratory for quality assurance
Adequate monthly stock inventory to meet urgent customer requirements
Annual sales exceeding $1,000,000 with 30,000㎡ manufacturing base and 120 technical staff

Technical Excellence

SUS stainless plate cutting using advanced laser technology for precision manufacturing
Anti-rust electrostatic painting on all machine exteriors for durability
Premium imported components including ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-quality imported compressors from BOEK and TECUMSEH
Designed for extended service life exceeding 10 years
