Customized Plastic Rubber Two Roll Open Mixing Mill Processing Refining Machinery

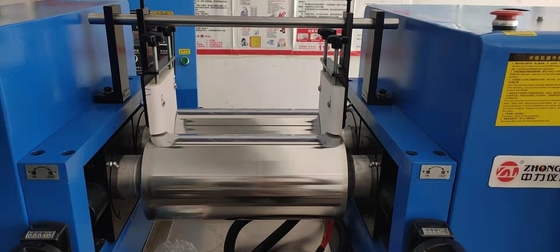

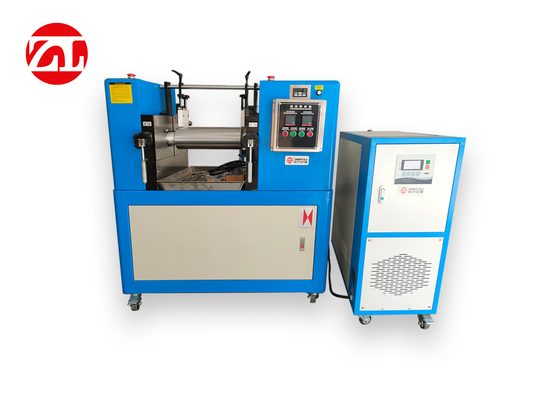

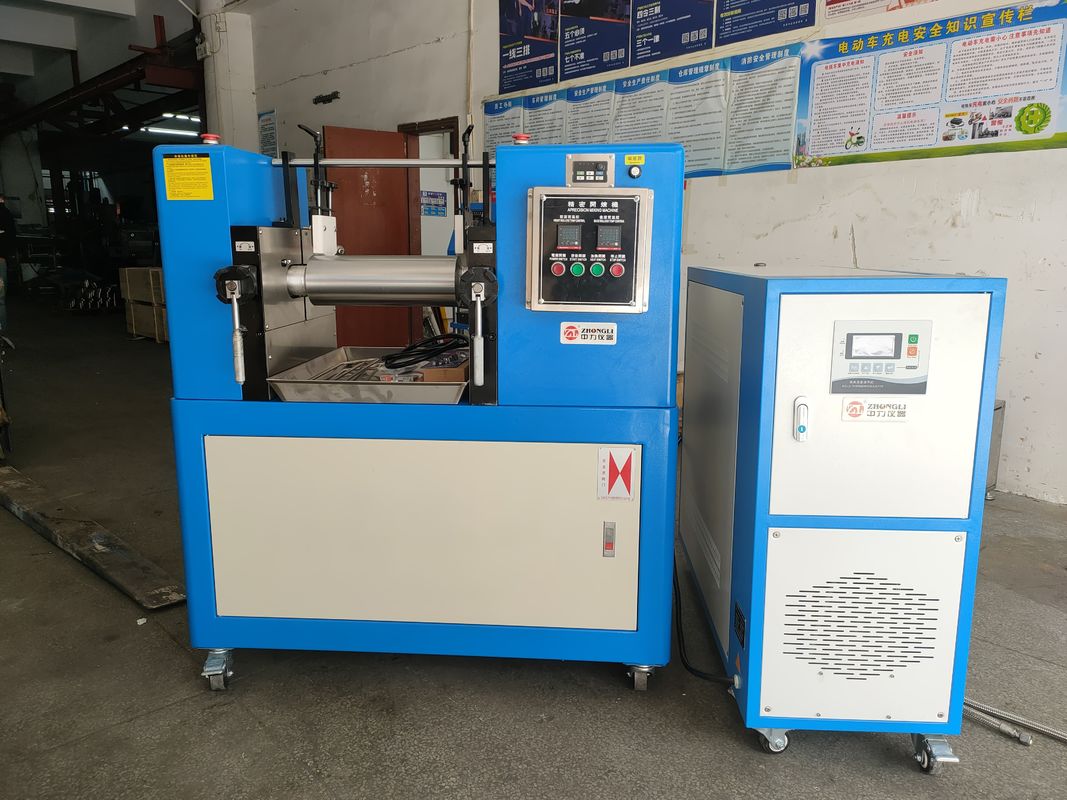

Large Image : Customized Plastic Rubber Two Roll Open Mixing Mill Processing Refining Machinery

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018
Document:	ZL-3018A Rubber Plastic Two...ll.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Customized Plastic Rubber Two Roll Open Mixing Mill Processing Refining Machinery is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Blue (can Be Customized）
Highlight:	Plastic Open Mixing Mill , 380V Rubber Open Mixing Mill , ISO Rubber Two Roll Mill

Customized Plastic Rubber Two Roll Open Mixing Mill Processing Refining Machinery

This industrial mixing mill is widely used in the rubber and plastics industry for polymer processing, including materials such as PVC and color master batch. The system comprises rolls, bearings, gap adjusting devices, electric control systems, and comprehensive safety features.

Key Advantages

Simple and clear design structure for easy operation with no installation required - ready to work after connecting wires and pipelines
Multiple speed options and speed ratios available to meet diverse formulation and process requirements

Technical Specifications

General Parameters

Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ±2℃ (using high-accuracy PID micro computer controller)
Power Requirements: 380V 3 phase 50-60Hz
Heating Mode: Electricity heating, Oil Heating (optional)
Cooling Mode: Water Cooling (optional)
Roll Temperature Range: Room temperature - 300℃
Safety Features: 6 safety buttons with optional safety guard

Model Specifications

Parameter	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170

Premium Service Advantages

Comprehensive R&D and design department capable of providing technological machines and satisfying special customized client requirements
Over 50 years of manufacturing experience with advanced machinery and sophisticated craftsmanship
Two specialized laboratories: Environmental laboratory and Physical laboratory for quality assurance
Adequate monthly stock availability to meet urgent customer demands
Annual sales exceeding 1,000,000 USD with 30,000㎡ manufacturing base and 120 technical staff for large-scale project capability

Technical Excellence

Advanced Manufacturing: SUS Stainless plate precision cutting using advanced laser technology for accuracy assurance
Durable Construction: All machine exteriors feature anti-rust electrostatic painting
Premium Components: Utilizes imported electronic components from ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron and imported compressors from BOEK/TECUMSEH
Extended Lifespan: Engineered for service life exceeding 10 years
