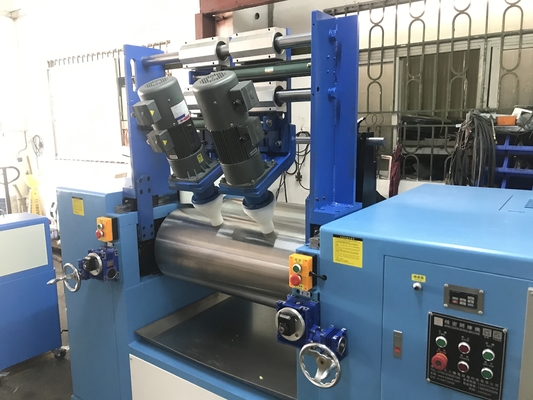

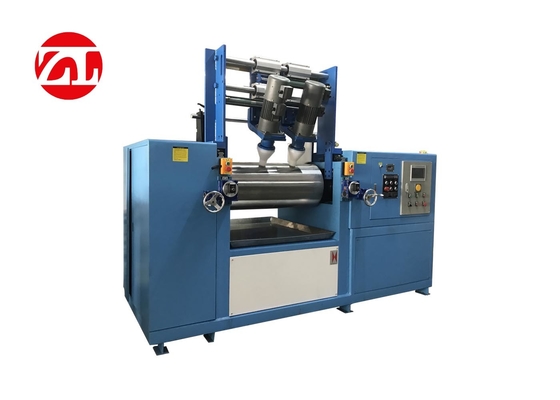

ZL Electric Heating Rubber Type Lab Two Roll Mixing Mill Rubber Mixing Machine

Large Image : ZL Electric Heating Rubber Type Lab Two Roll Mixing Mill Rubber Mixing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	Lab Two Roll Mixing Mill , 350mm Two Roll Mixing Mill , HRC50 Two Roll Mill

ZL Electric Heating Rubber Type Lab Two Roll Mixing Mill

Professional rubber mixing machine designed for laboratory and industrial applications in rubber and plastics processing.

Applications

Widely used in rubber and plastics industry for polymer mixing applications including PVC and color master batch processing.

Rubber Processing Technology

Cutting: Material preparation by cutting into strips of specific sizes and weights
Forming Vulcanization: High-temperature molding process using specialized equipment
Burr Treatment: Removal of excess material through manual or mechanical methods
Quality Inspection: Manual selection to identify appearance defects and quality issues
Packaging & Shipping: Custom packaging solutions based on product specifications

Technical Specifications

Roll Hardness: HRC 50-60

Temperature Accuracy: ±2℃ (High accuracy PID micro computer controller)

Power Requirements: 380V 3 phase 50-60Hz

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap (mm)	Power (KW)	Weight (kg)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800

Heating Options: Electric heating, Oil heating (optional)

Cooling Options: Water cooling (optional)

Temperature Range: Room temperature to 300℃

Safety Features: 6 safety buttons with optional safety guard

Service Advantages

Custom R&D and design capabilities for specialized client requirements
Over 50 years of manufacturing expertise with advanced machinery
Dual laboratory facilities: Environmental and Physical testing labs
Adequate monthly inventory for urgent customer needs
Large-scale manufacturing base with 120 technical specialists

Technical Excellence

Precision laser-cut SUS stainless steel plates for accuracy
Anti-rust electrostatic painting on all machine surfaces
Premium imported components from ABB, Siemens, Panasonic, and other leading brands
High-quality compressors from BOEK and TECUMSEH
Designed for extended service life exceeding 10 years
