Laboratory Two Roll Rubber Mixing Mill For polymer And Plastics

Large Image : Laboratory Two Roll Rubber Mixing Mill For polymer And Plastics

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	350mm Two Roll Rubber Mixing Mill , HRC50 Two Roll Rubber Mixing Mill , Polymer Two Roll Mill

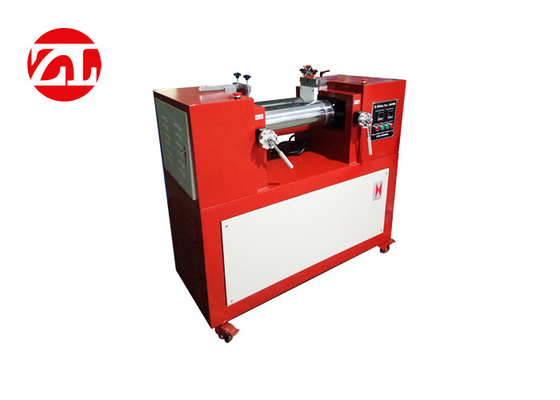

Laboratory Two Roll Rubber Mixing Mill for Polymer and Plastics

Professional laboratory two roll rubber mixing mill designed for polymer processing in rubbers and plastics industries, including PVC and color master batch applications.

Applications

Widely used in rubber and plastics industry for polymer mixing applications. The system includes rolls, bearings, gap adjusting device, electric control system, and safety features.

Mixing Process Overview

The banburying process ensures uniform mixing of raw rubber and compounding agents. This mechanical mixing process disperses additives completely throughout the raw rubber to enhance product performance and reduce costs.

Technical Specifications

Roll Hardness: HRC 50-60

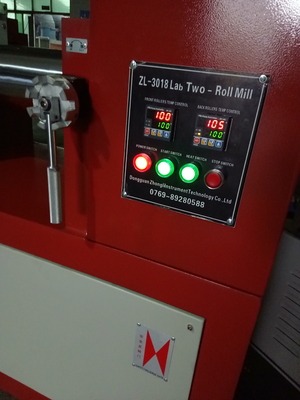

Temperature Accuracy: ±2°C (High accuracy PID micro computer controller)
Power Requirements: 380V 3 phase 50-60Hz

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap Range (mm)	Driving Power (KW)	Machine Weight (kg)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800

Heating Mode: Electricity heating, Oil Heating (optional)
Cooling Mode: Water Cooling (optional)
Roll Temperature Range: Room temperature - 300°C

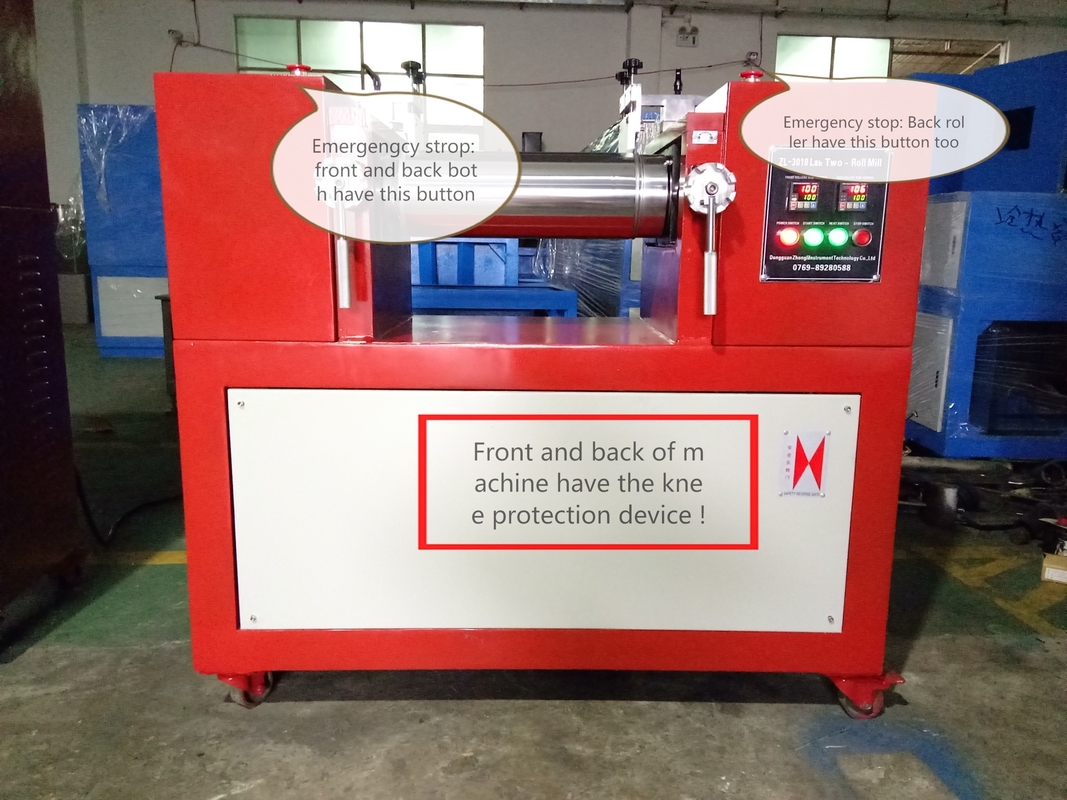

Safety Features: 6 safety buttons with optional safety guard

Service Advantages

R&D and design department for standard and custom machine solutions
Over 50 years manufacturing experience with advanced machinery
Two specialized laboratories: Environmental and Physical testing facilities
Adequate monthly stock for urgent customer requirements
30,000㎡ manufacturing base with 120 technicians for large-scale projects

Technical Excellence

SUS stainless plate cut by advanced laser machines for precision
Anti-rust electrostatic painting on all machine surfaces
Premium imported components: ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-quality compressors: BOEK, TECUMSEH
Designed for service life exceeding 10 years
