Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill

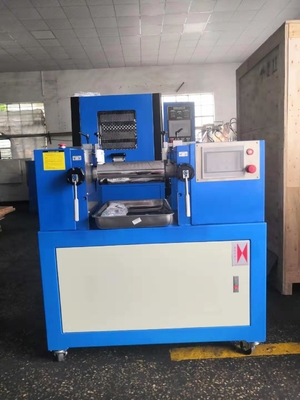

Large Image : Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018
Document:	ZL-3018A Rubber Plastic Two...ll.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	380V Open Mixing Mill , Masterbatch Rubber Open Mixing Mill , Masterbatch Rubber Two Roll Mill

Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill

This laboratory-grade two roll mixing mill is specifically designed for masterbatch rubber mixing processes with electrical heating capabilities. Ideal for research, development, and small-scale production applications.

Primary Applications

Widely used in rubber and plastics industries for polymer mixing applications including PVC and color master batch production. The system comprises rolls, bearings, gap adjusting devices, electric control systems, and comprehensive safety features.

Key Features & Benefits

Simple structure with easy operation and maintenance
Strong processing adaptability for various materials
Cost-effective investment for laboratory and small-scale operations
Suitable for plasticizing, mixing, coloring, tableting, and glue supply
Ideal for small to medium factories and specialized small-batch production

Technical Specifications

General Parameters

Roll Hardness: HRC 50-60
Temperature Accuracy: ±2℃ (High accuracy PID micro computer controller)
Heating Mode: Electricity heating, Oil Heating (optional)
Cooling Mode: Water Cooling (optional)
Roll Temperature Range: Room temperature to 300℃
Safety Features: 6 safety buttons with optional safety guard
Power Requirements: 380V 3 phase 50-60Hz

Model Comparison Table

Parameter	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170

Manufacturing Excellence & Support

Advantage Services

Comprehensive R&D and design department for standard and customized solutions
Over 50 years of manufacturing expertise with advanced machinery and craftsmanship
Dual laboratory facilities: Environmental laboratory and Physical laboratory
Adequate monthly stock availability for urgent customer requirements
Annual sales exceeding 1,000,000 USD with 30,000㎡ manufacturing base
120 technical staff capable of handling large budget projects

Technical Quality Assurance

Premium Construction & Components:
• SUS Stainless plate precision cutting with advanced laser technology
• Anti-rust electrostatic painting on all machine surfaces
• Imported electronic components: ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
• Imported compressors: BOEK, TECUMSEH
• Designed for extended service life exceeding 10 years
