Factory Direct Yoga Mat Plastic Silicone 2 Roll Mill Rubber Open Mill Machine

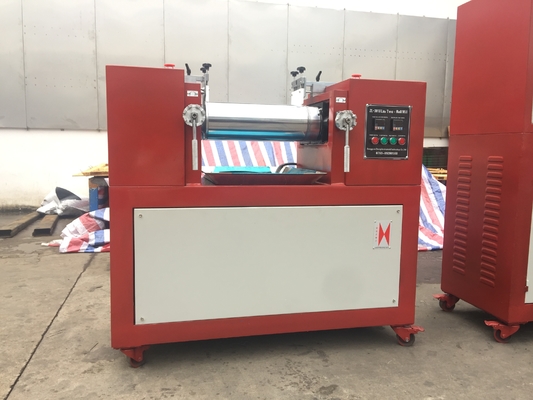

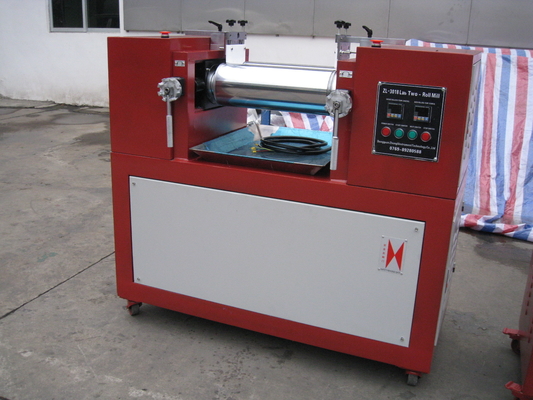

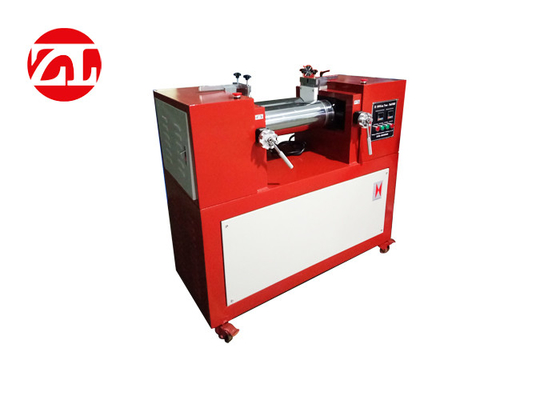

Large Image : Factory Direct Yoga Mat Plastic Silicone 2 Roll Mill Rubber Open Mill Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018
Document:	ZL-3018A Rubber Plastic Two...ll.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	Yoga Mat 2 Roll Mill , Silicone 2 Roll Mill , Yoga Mat Rubber Open Mill

Factory Direct Yoga Mat Plastic Silicone 2 Roll Mill Rubber Open Mill Machine

This industrial two-roll mill machine is specifically designed for polymer mixing in rubber and plastics manufacturing. It efficiently processes materials like PVC and color master batch through advanced extrusion and shearing technology.

Primary Applications

Ideal for rubber and plastics industry applications including polymer mixing, plasticizing, coloring, tableting, and supplying glue for various rubber raw materials, silica gel, and plastic products.

Technical Documentation

Operating Principle

The two-roll mill operates through two counter-rotating rollers that apply precise extrusion and shear forces to rubber materials. This process interrupts molecular chains and ensures uniform distribution of all formula components, achieving optimal mixing results.

Technical Specifications

Roll Hardness: HRC 50 ~ 60

Temperature Accuracy: ± 2 ℃ (High accuracy PID micro computer controller)

Heating Mode: Electricity heating, Oil Heating (optional)

Cooling Mode: Water Cooling (optional)

Roll Temperature Range: Room temperature - 300℃

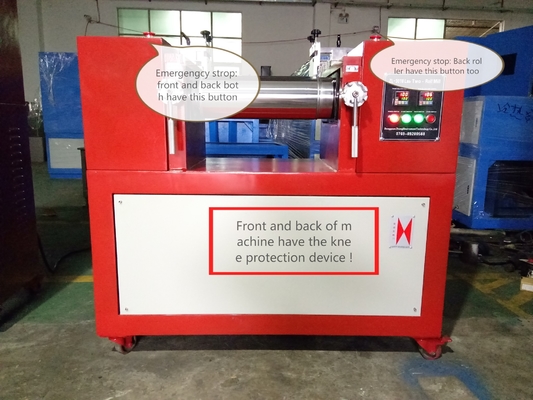

Safety Features: 6 safety buttons with optional safety guard

Power Requirements: 380V 3 phase 50-60hz

Model Specifications

Parameter	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1	1.5	2.2	7.5	11	30	37
Machine weight (kg)	160	460	660	860	1960	2960	3800
Overall dimension (mm)	1100x400x1180	1100x550x1380	1200x650x1380	2200x750x1380	2200x950x1580	2600x950x1580	5295x1789x170

Manufacturing Advantages

Comprehensive R&D and design department capable of providing standard and custom machine solutions
Over 50 years of manufacturing expertise with advanced machinery and skilled craftsmanship
Dual laboratory facilities: Environmental laboratory and Physical laboratory for quality assurance
Adequate monthly inventory to meet urgent customer requirements
Annual sales exceeding $1,000,000 USD with 30,000㎡ manufacturing base and 120 technical staff

Technical Excellence

Precision laser-cut SUS stainless steel plates for optimal accuracy
Anti-rust electrostatic painting on all machine surfaces
Premium imported electronic components from ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-performance imported compressors from BOEK and TECUMSEH
Designed for extended service life exceeding 10 years
