ZL Rubbers And Plastics Two Roll Mill Mixing With Oil Heating Silicone Milling

Large Image : ZL Rubbers And Plastics Two Roll Mill Mixing With Oil Heating Silicone Milling

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018
Document:	ZL-3018A Rubber Plastic Two...ll.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Length Of Roller Face:	350mm	Mixing Capacity:	0.002-2.8kg
Roll Hardness:	HRC 50 ~ 60	Safety Device:	It Have 6 Safety Buttons And Safety Guard Is Option
Temperature Accuracy:	± 2 ℃ (we Adopt The High Accuracy PID Micro Computer Controller)	Power:	380V 3 Phase 50-60hz
Driving Power:	1kw	Color:	Red (can Be Customized）
Highlight:	PVC Two Roll Rubber Mill , 350mm Two Roll Rubber Mill , Oil Heating Silicone Two Roll Mill

ZL Rubbers and Plastics Two Roll Mill Mixing with Oil Heating Silicone Milling

This industrial two-roll mill is specifically designed for polymer mixing applications in the rubber and plastics industry, including PVC and color master batch processing. The system features comprehensive components including rolls, bearings, gap adjusting mechanisms, electric control systems, and integrated safety devices.

Technical Documentation

Download ZL-3018 Two Roll Mill Technical Specifications (PDF)

Manufacturing Process Overview

Modern rubber product manufacturing follows a standardized production workflow:

Raw Material Preparation
Banburying Process
Mixing Operation
Cutting and Forming
Molding and Vulcanization
Burr Treatment
Quality Maintenance
Packaging and Shipping

Raw material preparation involves precise weighing of base rubber compounds and supplementary additives according to specific formulation requirements.

Technical Specifications

Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ±2℃ (High precision PID micro computer controller)
Heating Options: Electricity Heating, Oil Heating (optional)
Cooling Options: Water Cooling (optional)
Roll Temperature Range: Room temperature to 300℃
Safety Features: 6 safety buttons with optional safety guard
Power Requirements: 380V 3 phase 50-60Hz

Model	Roll Diameter (mm)	Roller Face Length (mm)	Mixing Capacity (kg)	Front Roll Speed (rpm)	Friction Ratio	Roll Gap Range (mm)	Driving Power (KW)	Machine Weight (kg)	Overall Dimension (mm)
ZL-3018-76	76	300	0.002-0.6	19	1:1.30	0-3	1	160	1100x400x1180
ZL-3018-120	120	350	0.002-2	19	1:1.35	0-6	1.5	460	1100x550x1380
ZL-3018-160	160	350	0.002-2.8	19	1:1.35	0-6	2.2	660	1200x650x1380
ZL-3018-200	200	500	0.002-5	19	1:1.35	0-8	7.5	860	2200x750x1380
ZL-3018-230	230	650	0.005-10	19	1:1.27	0-12	11	1960	2200x950x1580
ZL-3018-300	300	650	1-15	19	1:1.27	0-12	30	2960	2600x950x1580
ZL-3018-400	400	900	5-30	19	1:1.27	0-15	37	3800	5295x1789x170

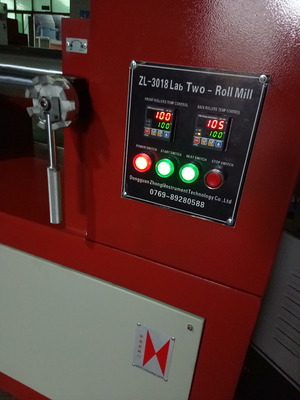

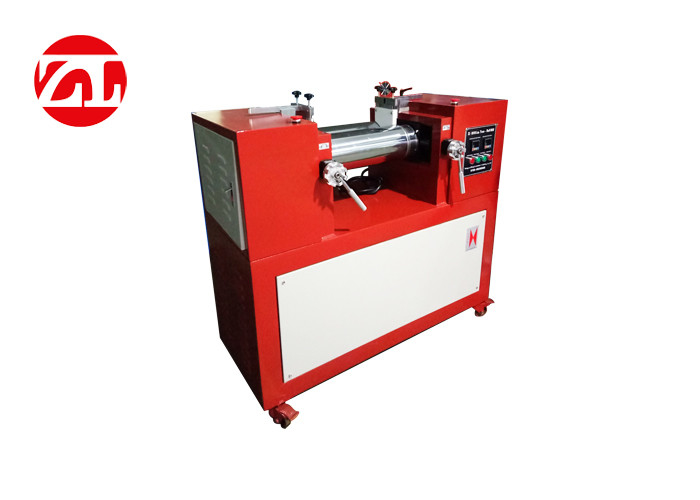

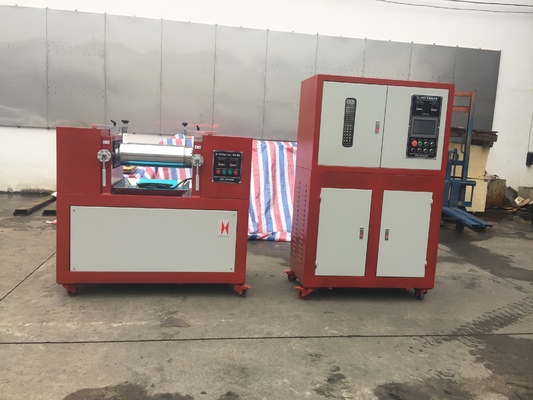

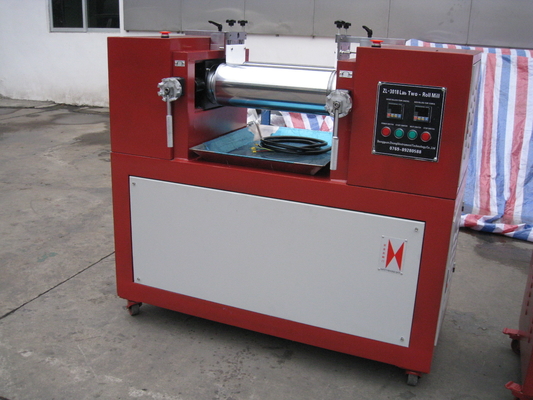

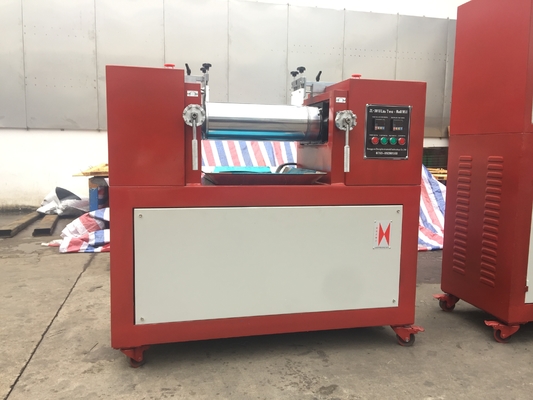

Product Visualization

Manufacturing Advantages

Custom R&D and design department for specialized client requirements
Over 50 years of manufacturing expertise with advanced machinery
Dual laboratory facilities: Environmental and Physical testing
Adequate monthly stock availability for urgent customer needs
30,000㎡ manufacturing base with 120 technical specialists
Annual sales exceeding 1,000,000 USD with large project capability

Technical Excellence

Precision laser-cut SUS stainless steel plates for accuracy
Anti-rust electrostatic painting on all machine surfaces
Premium imported electronic components: ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron
High-performance imported compressors: BOEK, TECUMSEH
Extended service life exceeding 10 years
