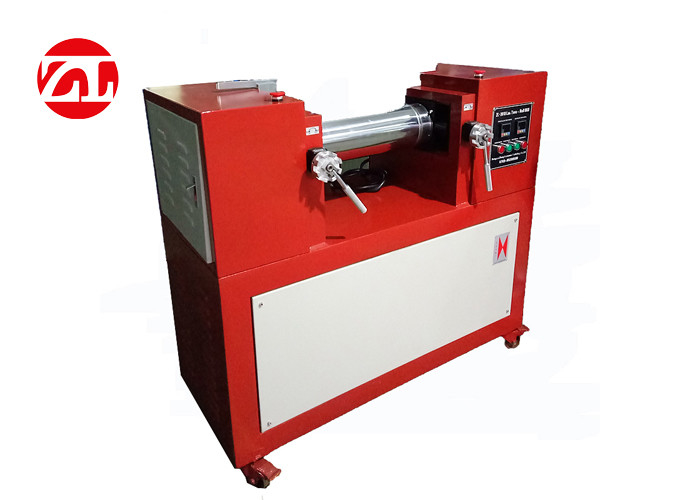

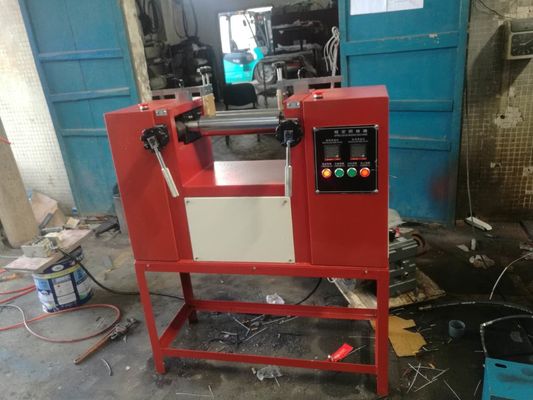

14inch Two Roll Mill For Masticating And Kneading Natural Rubber

14inch Two Roll Mill For Masticating And Kneading Natural Rubber
14inch Two Roll Mill For Masticating And Kneading Natural Rubber
video play

Large Image :  14inch Two Roll Mill For Masticating And Kneading Natural Rubber

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3018
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 14inch two roll mill for masticating and kneading natural rubber is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets
Detailed Product Description
Product Name: 14inch Two Roll Mill For Masticating And Kneading Natural Rubber Safety Device: It Have 6 Safety Buttons And Safety Guard Is Option
Power: 380V 3 Phase 50-60hz Cooling Mode: Water Cooling ( Option)
Controller: Intelligent Control Panel And PLC Control System Key Words: Two Roll Mill
Driving Power: 1.5kw(option) Front Roll Surface Speed: 19rpm
High Light:

14inch Two Roll Mill

,

Natural Rubber Masticating Two Roll Mill

,

Natural Rubber Kneading 2 Roll Mill

14inch two roll mill for masticating and kneading natural rubber





Application



Plastic open two roll mixing mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.

ZL-3018 Two roll mill.pdf



Introduction:



2-cylindrical tire mixer has excellent chemicals, such as natural rubber, synthetic rubber and EVA series.PVC is mainly used for natural rubber and synthetic rubber.



Feature:



1. We can design speed ratio as per customers' formula and processing requirements.



2. Construction of mill rolls: drilled roll, bored roll, grooved roll



3. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.



4. Frame, frame cap and base are welded and treated by annealing for stress relieving.



Intelligent control panel and PLC control system



(1) Real-time recording and output in conjunction with time, temperature (mixing chamber and front and rear rotators), piston pressure, current and conversion.

(2) The control system can be set as 20-step mixing phase, which can save 20-prescriptions.

(3) The control system can introduce process recipes and remote data monitoring and communicate with MES via Ethernet communication interface.

(4) Reserve Ethernet communication port and 20% checkpoints and provide touch screen.



Technical parameters:



Model   ZL-3018-76 ZL-3018-120 Zl-3018-160 ZL-3018-200 Zl-3018-230 Zl-3018-300 ZL-3018-400
Diameter of roll mm 76 120 160 200 230 300 400
Length of roller face mm 300 350 350 500 650 650 900
Mixing Capacity kg 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed rpm 19 19 19 19 19 19 19
Friction ratio   1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range mm 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power KW 1 1.5 2.2 7.5 11 30 37
Heating Mode Electricity heating , Oil Heating ( option)
Cooling Mode Water Cooling ( option)
Roll Temperature Room temperature -- 300℃
Roll Hardness HRC 50 ~ 68
Temperature Accuracy ± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Safety device It have 6 safety buttons and safety guard is option
Machine weight kg 160 460 660 860 1960 2960 3800
Overall dimension mm 1100x400x1180 1100x550x1380 1200x650x1380 2200x750x1380 2200x950x1580 2600x950x1580

5295x1789

x170

Power 380V 3 phase 50-60hz



14inch Two Roll Mill For Masticating And Kneading Natural Rubber 0

Zhongli Introduction:



Zhongli Instrument Located in Dongguan, Guangdong, China. It is a collection development, research, production and sales of integrated lab testing machine.

Zhongli attaches great importance on the construction of independent R&D ability and technical force, and has already built up a professional work team possessing independent R&D ability in order to design and produce better products to meet customers’ requirements. Our machines adopt advanced technology and have good quality with high detecting sensitivity, strong anti-interference ability, stable performance etc. Customization is available in Zhongli, and our engineers can design drawings for customers to meet special requirements, also we can design and install machines according to different production lines.



In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
