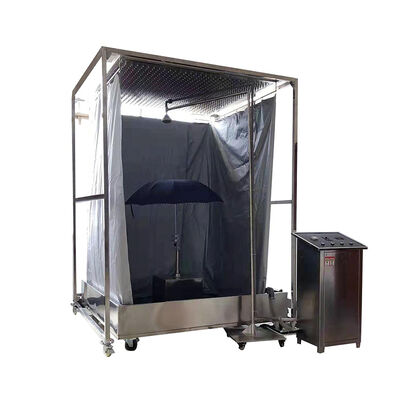

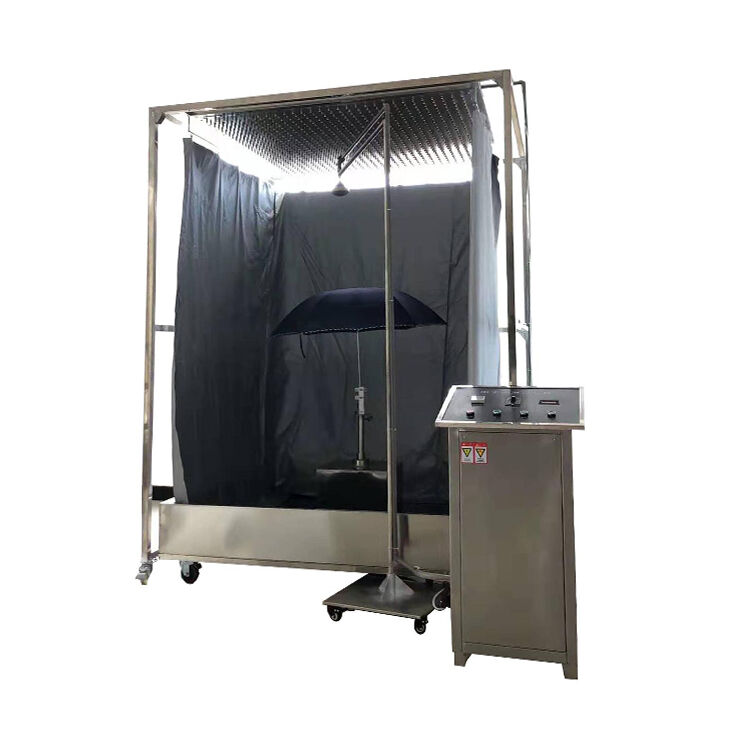

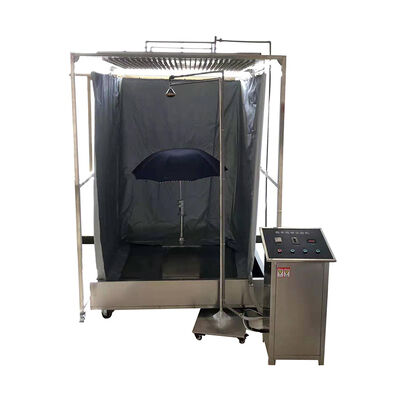

Umbrella and Raincoat Rain Strength Testing Machine Waterproof Rain Resistance Tester

Large Image : Umbrella and Raincoat Rain Strength Testing Machine Waterproof Rain Resistance Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2021

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Umbrella Raincoat Rain Strength Tester	Timer:	LED Timer, Can Switch Between Minutes And Hours
Taiwan Dongli Gear Miniature Motor:	AC220V, 90W	Umbrella Rotation Speed:	5 / R / Min
Maximum Height Of The Whole Machine:	3000mm	Base Diameter:	2000mm
Nozzle To Test Piece Distance:	800mm (adjustable)	Maximum Diameter Of Test Piece:	1500mm
Highlight:	Umbrella rain resistance tester machine , Raincoat waterproof testing equipment , Rain strength tester for furniture

Umbrella and Raincoat Rain Strength Testing Machine Waterproof Rain Resistance Tester

Product Overview

This umbrella rain tester simulates rainy weather conditions to evaluate the durability and performance of umbrellas and raincoats. Weather exposure significantly impacts product longevity, causing aging, fading, and rusting. As a result, industries including rubber, plastic, chemical, and automotive increasingly prioritize weather resistance testing.

This specialized equipment focuses specifically on rain simulation, replicating natural rainfall to assess waterproof performance and material resilience. The machine complies with multiple international testing standards including GB, CNS, ISO, UL, and BS.

Key Features

Simulates realistic rainy conditions for accurate weather resistance testing
Tests umbrella durability against aging, fading, and weather damage
Complies with GB, CNS, ISO, UL, BS, and other international standards
Adjustable nozzle-to-test piece distance for versatile testing applications
LED timer with minute/hour switching capability

Technical Specifications

Parameter	Specification
Timer	LED timer, can switch between minutes and hours
Motor	Taiwan Dongli gear miniature motor, AC220V, 90W
Umbrella Rotation Speed	5 / r / min
Maximum Machine Height	3000mm
Base Diameter	2000mm
Nozzle to Test Piece Distance	800mm (adjustable)
Maximum Test Piece Diameter	1500mm
Maximum Test Piece Height	900mm
Spray Water	Soft tap water
Standard Water Spray Volume	(3.6 ± 0.05) L / min
Air Pressure	Normal pressure
Working Voltage	AC220V 50HZ
Ambient Temperature	0℃ ～ 40℃
Relative Humidity	<85% r.h
Spraying Range	Within Φ1.5m

Product Image
