ANSI/BIFMA X5.1 X5.4 X6.1 Office Seating Testing Machines Static & Durability Backrest Strength Test Equipment

Large Image : ANSI/BIFMA X5.1 X5.4 X6.1 Office Seating Testing Machines Static & Durability Backrest Strength Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2014

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Office Chair Armrest Pull Back Strength Testing Machine	Reference Standard:	QB/T2280-2007, ANSI/BIFMA X5.1-2017
Loading Eight:	109kg (one Set)	Test Speed:	Strength Test 450mm/Min
Test Force Value:	Strength Test MAX 1900N	Display Mode:	Touch Screen Display
Control Method:	PLC Control	Test Times:	1-999999 Times (arbitrarily Set)
Highlight:	ANSI/BIFMA office seating testing machine , static durability backrest strength tester , furniture testing equipment with warranty

ANSI/BIFMA X5.1 X5.4 X6.1 Office Seating Testing Machines Static & Durability Backrest Strength Test Equipment

Product Overview

This specialized testing equipment evaluates the quality and durability of office seating products by applying controlled loads and performing repeated backrest movements under specified conditions.

Testing Methodology

The office chair casters are fixed in place while applying a load to the seat surface. The backrest undergoes repeated movements with precise force, direction, stroke, speed, and specified cycles to assess product quality and fatigue resistance.

Compliance Standards

Meets QB/T2280-2007 "Office Chair" Section 6.6.11
ANSI/BIFMA X5.1-2017 "Office Furniture. General Office Chair. Test"

Application Scope

Suitable for testing various seating products including office chairs, chairs, stools, and similar furniture. This multifunctional testing equipment evaluates the strength and durability of chair back frames and armrests.

Technical Specifications

Parameter	Specification
Loading Weight	109kg (one set)
Test Speed	Strength test 450mm/Min
Test Force Value	Strength test MAX 1900N
Display Mode	Touch screen display
Control Method	PLC control
Test Times	1-999,999 times (arbitrarily set)
Power Supply	AC/220V, 3A, 50HZ
Air Pressure	≥6kg/cm²
Machine Power	0.5KW
Machine Size	245010002180mm (LWH)

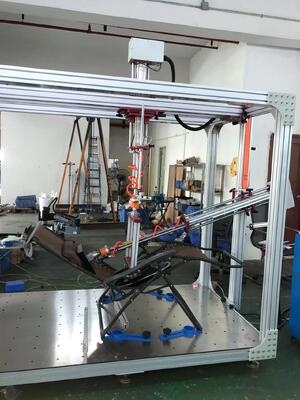

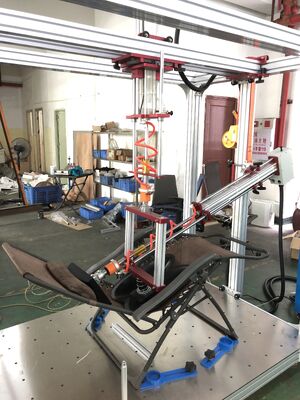

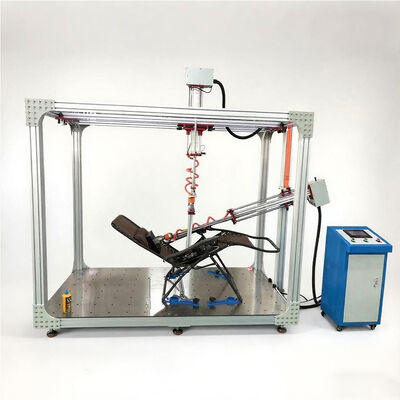

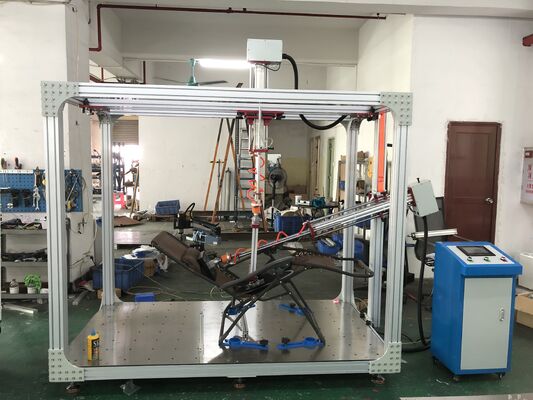

Product Image
