EN14749 EN14074 BIFMA X5.1EN1335-3 ES1038 Drawer Cyclic Fatigue Tester Pivot Door Test Equipment

Large Image : EN14749 EN14074 BIFMA X5.1EN1335-3 ES1038 Drawer Cyclic Fatigue Tester Pivot Door Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2016

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Drawer\Cabinet Door Fatigue Testing Machine	Drawer Specifications:	150-800mm,adjustable
Load:	0-1000N	Load Voltage:	0-250W,adjustable
Adjustable Up And Down Stroke:	150mm～1000mm,adjustable.	Speed:	0.3-2m/s
Controller:	PLC Intelligent Integrated Control
Highlight:	EN14749 drawer cyclic fatigue tester , BIFMA X5.1 pivot door test equipment , ES1038 furniture testing machine

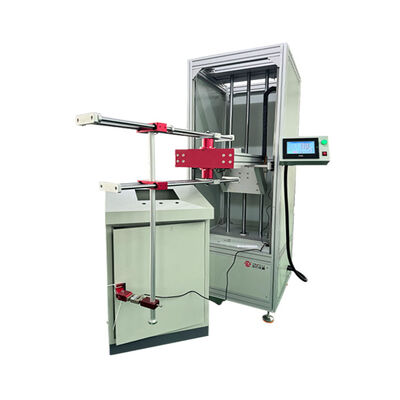

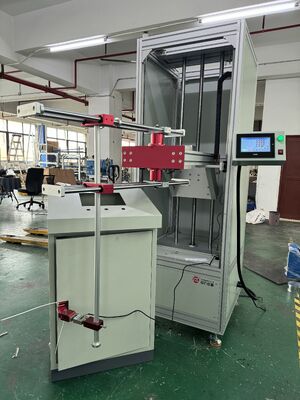

EN14749 EN14074 BIFMA X5.1EN1335-3 ES1038 Drawer Cyclic Fatigue Tester Pivot Door Test Equipment

The Drawer and Cabinet Door Fatigue Tester (Cylinder) is designed for the furniture industry to evaluate the reciprocating fatigue performance of sliding drawers, sliding doors, hinges, and other furniture components. This equipment conducts durability testing of drawer slides, sliding door hinges, and hinges at room temperature, helping manufacturers assess product longevity and ensure stability and reliability for long-term use.

Testing Principle

The testing involves suspending two 1kg weights on the vertical centerline of both sides of the sliding door. The system simulates daily usage conditions by repeatedly pulling out and closing the door at controlled speeds. After completing a specified number of cycles, the equipment checks for damage to hinges or any other issues that could impact functionality.

Compliance Standards

Designed in accordance with GB/T 10357.5 standard, specifically including:

7.1.1 Sliding door durability test
7.5.1 Drawer and slide durability test
7.5.4 Drawer slide strength test

Manufactured based on GB/T 10357.5, QB/T 2189, and other relevant standard requirements.

Installation Requirements

Power Supply

Configure correct power supply according to machine nameplate labeling: AC220V, 50HZ. Input voltage error range: ±10%. Ensure proper machine grounding to prevent electrical hazards.

Servo Motor

Power: 750W

Operating Environment

Temperature range: 10-30°C, Relative humidity: 45%-70% RH. Location should be away from strong electromagnetic interference sources.

Technical Parameters

Parameter	Specification
Drawer Specifications	150-800mm, adjustable
Load Capacity	0-1000N
Power Supply	AC220V 10%/50HZ, 3000W power or according to customer requirements
Load Voltage	0-250W, adjustable
Adjustable Stroke	150mm-1000mm, adjustable
Speed Range	0.3-2m/s

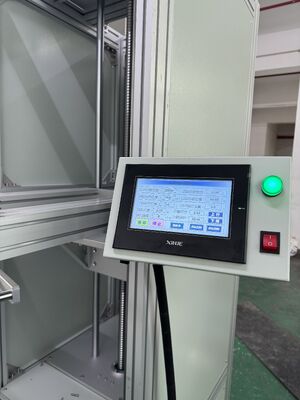

Display Mode	7-inch humanized touch interface operation
Controller	PLC intelligent integrated control

Maintenance Program

Cleaning: Maintain machine cleanliness at all times. Wipe the machine with a cotton cloth before and after each use.
Lubrication: Regularly add lubrication to transmission components (e.g., screws) on a monthly basis.

Tag:

Contact Person: Ms. Fiona Zhong

Tel: +86 135 3248 7540
