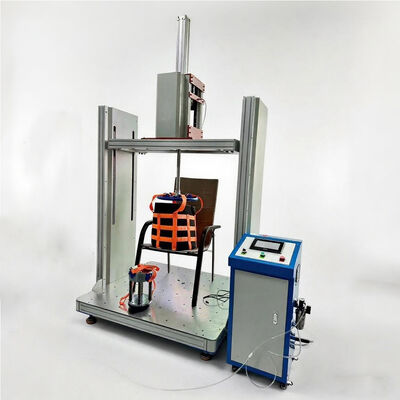

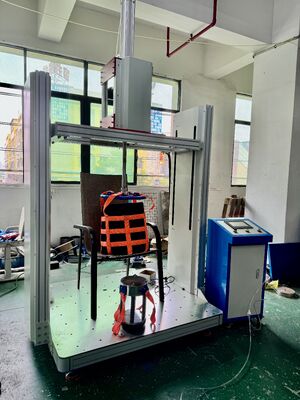

ANSI/BIFMA X5.1 X5.4 X6.1 BIFMA Impact Drop Test Dynamic Durability Chair Test Machine

Large Image : ANSI/BIFMA X5.1 X5.4 X6.1 BIFMA Impact Drop Test Dynamic Durability Chair Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Name:	Chair Seat Impact Tester	Reference Standard:	Bifmax5.1, Bifmax5.9
Impact Sand Bag:	Diameter 406mm, Weight 57KG Sandbag	Static Pressure Module:	Diameter 406mm Weight 102kg Sandbag
Strength Impact:	Diameter 406MM Weight 136KG Sandbag	Impact Speed:	0-30 Times/minute Can Be Set
Falling Objects:	Ejected By Electromagnetic System	Adjustable Height:	90-135cm
Highlight:	ANSI BIFMA chair test machine , BIFMA durability chair tester , dynamic impact drop test machine

ANSI/BIFMA X5.1 X5.4 X6.1 BIFMA Impact Drop Test Dynamic Durability Chair Test Machine

This chair comprehensive performance testing machine evaluates the weight and force capacity of chair seats under vertical compression. It performs both static pressure tests and impact tests on seat and storage components to determine structural integrity and durability.

Compliance Standards

BIFMA X5.1 - Section 8, Section 11, and Impact Test Section 24 (light load test of plate armrest)
BIFMA X5.9 - Section 7, Section 7.2, and Section 7.3 (impact test of storage device with seat surface)

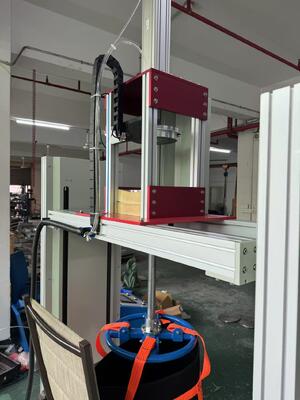

Machine Construction

Main Structure:

Sturdy movable aluminum frame and base
Casters with brakes for mobility and secure positioning
Cylinder shaft for push-pull testing
High-precision electromagnet and spherical guide drive
Toothed belt linear test shaft
Displacement range: 300mm
1 release device system

Configuration Requirements:

Rack: Steel structure with painted surface
Base: GB 45 steel, thickness ≥ 10mm
PLC, modules, cylinders, force sensors: Internationally recognized brands
Display system: Brand-name industrial computer with 7-inch HMI from international brand

Test Accessories: 3 sets of quick-replacement sandbags

Technical Parameters

Parameter	Specification

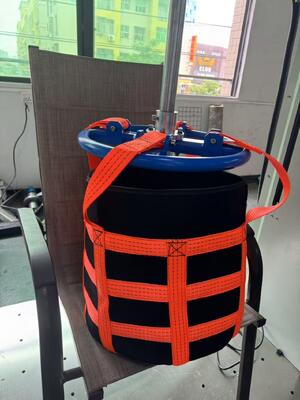

Impact Sand Bag	Diameter 406mm, weight 57KG sandbag
Static Pressure Module	Diameter 406mm weight 102kg sandbag
Strength Impact	Diameter 406MM weight 136KG sandbag
Impact Speed	0-30 times/minute adjustable
Falling Objects	Ejected by electromagnetic system
Adjustable Height	90-135cm
Power Supply	220VAC 5A, 50HZ
Stop Mode	Automatic stop and alarm when test count reached, specimen damaged, or excessive deformation
