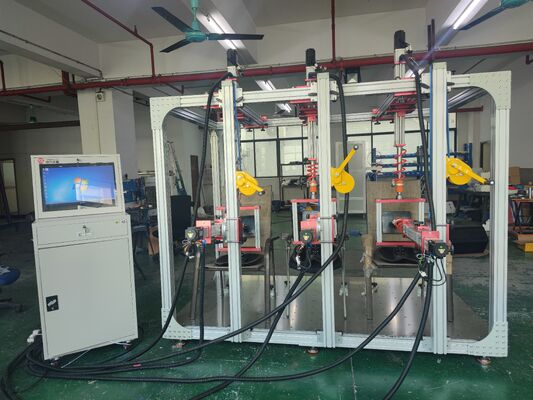

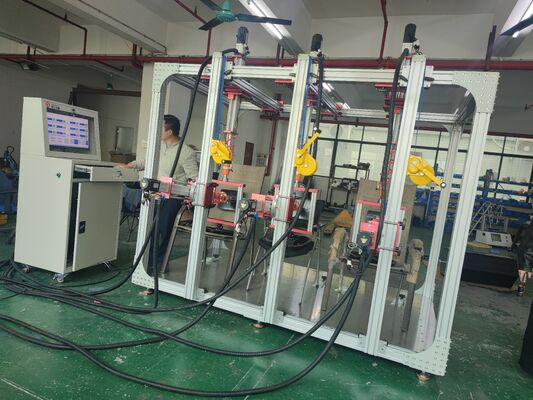

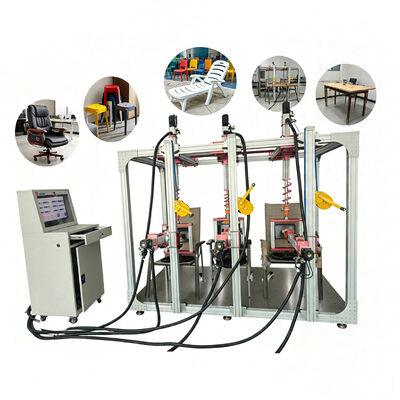

Table and Chair Testing Equipment for Bifma | BIFMA X5.5 ISO ASTM Furniture Testing Equipment

Large Image : Table and Chair Testing Equipment for Bifma | BIFMA X5.5 ISO ASTM Furniture Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2017

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS9000
Packaging Details:	wooden case packaging
Delivery Time:	20 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Comprehensive Chair Strength Testing Machine	Force Sensor:	200kg, 3 In Total
Test Speed:	10-30 Times/min	Display Method:	Touch Screen Display
Control Method:	PLC Control	Test The Height Of The Seat Surface Of The Chair:	300-750mm Adjustable
Testing Frequency:	1-99999 Times (arbitrary Setting)
Highlight:	BIFMA furniture testing equipment , ISO ASTM chair testing machine , table and chair durability tester

Table and Chair Testing Equipment for BIFMA | BIFMA X5.5 ISO ASTM Furniture Testing Equipment

Machine Purpose

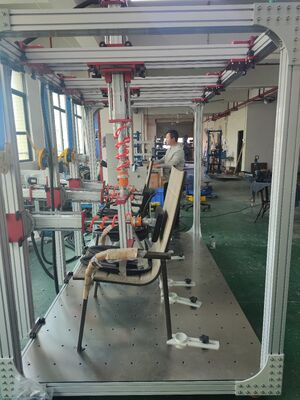

This multi-functional office chair testing machine is designed for testing various seating products including office chairs, regular chairs, and stools. It simulates real-world usage by replicating sitting actions—sitting down, remaining seated, and leaning back—to evaluate the durability and performance of seat and backrest components.

Key Features

Touch screen + PLC control with power-off memory functionality
Multi-functional testing capabilities with adjustable force settings
Automatic stop mechanism with alarm when sample failure is detected
Automatic or manual pressure control with digital display
Quick-change fixtures using rapid connectors
Sturdy aluminum frame with stainless steel test platform
Electric height adjustment and precision air control system

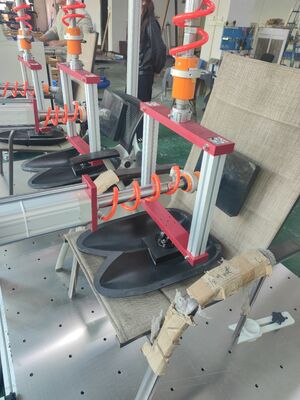

This multi-functional chair testing machine uses air cylinders to simulate sitting and leaning actions, performs repetitive testing on seat and backrest components, and features automatic failure detection with touch screen controls, PLC operation, and a durable aluminum construction.

Technical Specifications

Parameter	Specification
Force Sensor	200kg, 3 in total
Test Procedures	Seat Static Load Test, Back Static Load Test, Seat Fatigue Test, Back Fatigue Test, Leg Forward Static Load Test, Leg Sideways Static Load Test, Seat Impact Test, Back Impact Test, Arm Downward Static Load Test, Arm Sideways Static Load Test, Arm Impact Tester
Test Speed	10-30 times/min
Display Method	Touch Screen Display
Control Method	PLC Control
Control Air Pressure	Precision oil-water separator pressure regulating valve
Chair Seat Height Range	300-750mm adjustable
Testing Frequency	1-99999 times (arbitrary setting)
Impact Height	Maximum 300mm
Test Space	1000 x 1000 mm
Power Supply	AC/220V, 5A, 50HZ
Gas Source	≥0.6KGF/cm² (bring your own)
Total Power	200W
Machine Dimensions	1400 x 1350 x 1900mm
