ISO 7173 EN 1335 BIFMA X5.1 Office Chair Impact Testing Machine Furniture Test Equipment Chair Impact Testing Machine

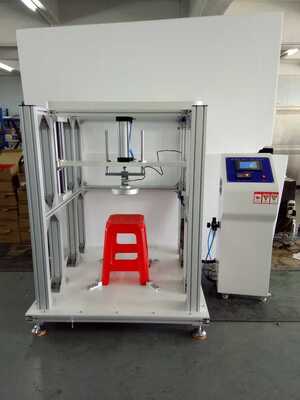

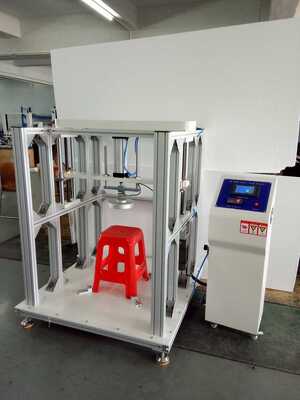

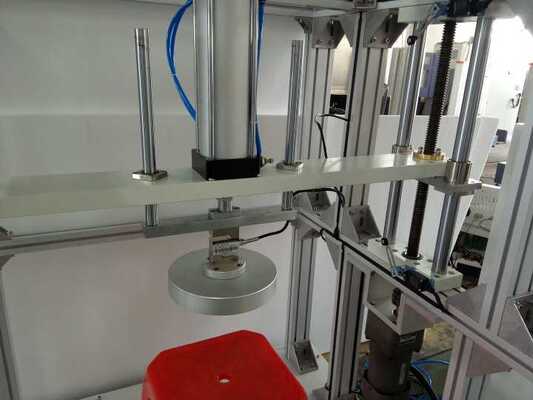

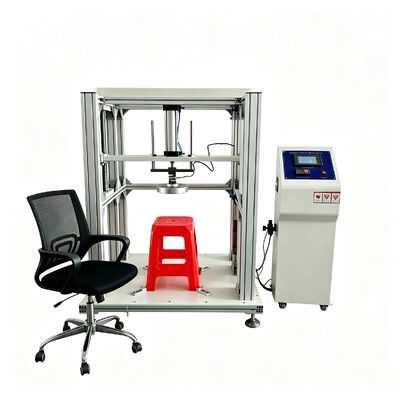

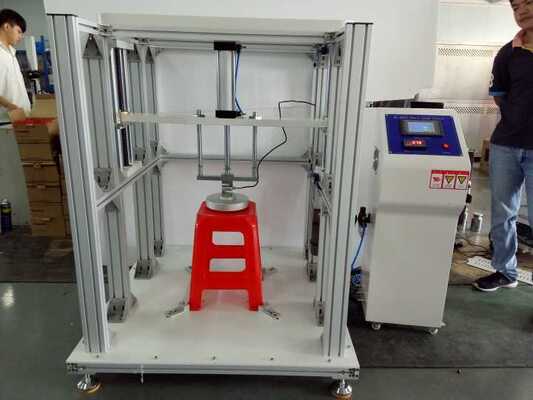

Large Image : ISO 7173 EN 1335 BIFMA X5.1 Office Chair Impact Testing Machine Furniture Test Equipment Chair Impact Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2015

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Name:	Seat Surface Impact Static Load Tester	Reference Standard:	QB/T2280 BIFMA X5.1
Impact Bag Diameter:	400mm	Impact Head Specifications:	Φ=200mm, Spherical Radius=300mm, Rounding Radius=12mm
Coil Compression Spring Assembly Coefficient Of Elasticity:	6.9±1N/mm	Helical Compression Spring Assembly Pre-compression Force:	1040±0.45N
Helical Compression Spring Assembly In Compression:	≥60mm	Friction Of The Moving Part Of The Helical Compression Spring Assembly:	0.25-0.45N
Highlight:	ISO 7173 office chair testing machine , EN 1335 furniture test equipment , BIFMA X5.1 chair impact tester

ISO 7173 EN 1335 BIFMA X5.1 Office Chair Impact Testing Machine Furniture Test Equipment

Product Overview

This furniture impact testing machine evaluates the durability and strength of furniture tabletops when subjected to impacts or drops. It simulates real-world scenarios where objects are accidentally dropped on tables or surfaces experience excessive force from leaning or impact.

Applications

The machine tests finished furniture for residential, hotel, restaurant, and commercial environments, ensuring products can withstand daily use impacts without damage or failure.

Construction & Design

Built with aluminum profiles, the frame provides clean, sturdy, and elegant construction for reliable testing performance.

Compliance Standards

QB/T 2280 (Chinese furniture standard)
BIFMA X5.1 (North American office furniture standard)

Technical Specifications

Impact Bag Diameter	400mm
Impact Head Specifications	Φ=200mm, spherical radius=300mm, rounding radius=12mm
Coil Compression Spring Assembly Coefficient Of Elasticity	6.9±1N/mm
Helical Compression Spring Assembly Pre-compression Force	1040±0.45N
Helical Compression Spring Assembly Compression	≥60mm
Friction of Moving Part	0.25-0.45N
Impactor Quality	25±0.1KG
Test Height	0mm to 300mm adjustable
Power Supply	AC 220V 50Hz 5A
Overall Dimensions (L×W×H)	1460×1260×2400mm
Weight	500KG
Air Source	7kgf/cm² stable air source
