BS EN 1335 Castor & Chair Base Durability Testing Rig | Bifma X5.1 Office Chair Base Caster Fatigue Life Testing Machine

Large Image : BS EN 1335 Castor & Chair Base Durability Testing Rig | Bifma X5.1 Office Chair Base Caster Fatigue Life Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2013

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Name:	Seat Caster Base Wear Tester	Drive Mode:	Variable Frequency Motor And Timing Belt
Stroke:	762mm (+ 50 Mm)	Rate:	8～12 Times/min
Up And Down Adjustment Range Of Clamp:	80mm～500mm	Control Mode:	PLC And Large LCD Display
Voltage:	220V Single Phase, 900W
Highlight:	BS EN 1335 chair base testing rig , Bifma X5.1 caster fatigue machine , office chair durability testing equipment

BS EN 1335 Castor & Chair Base Durability Testing Rig | Bifma X5.1 Office Chair Base Caster Fatigue Life Testing Machine

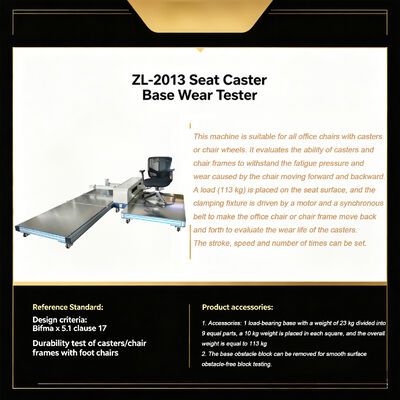

Product Overview

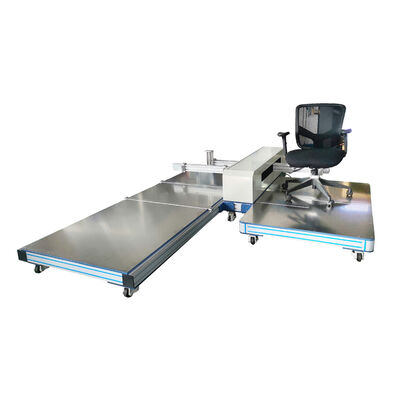

This testing machine is designed for comprehensive evaluation of office chairs with casters or chair wheels. It assesses the durability of casters and chair frames under simulated fatigue pressure and wear conditions caused by forward and backward chair movement.

Testing Methodology

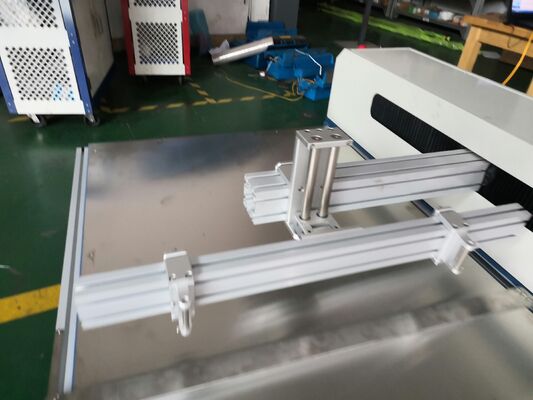

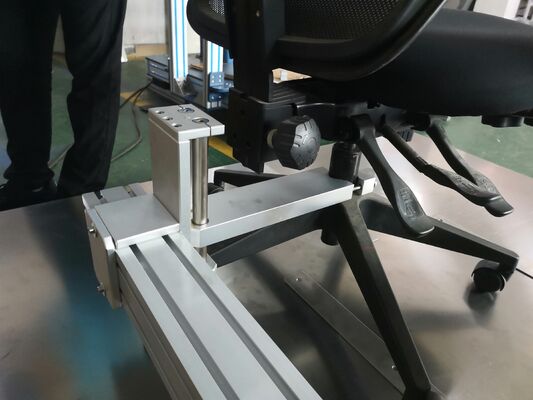

A standardized load of 113 kg is applied to the seat surface while the clamping fixture, driven by a motor and synchronous belt, moves the office chair or chair frame back and forth. This process evaluates the wear life of casters under controlled conditions with adjustable stroke, speed, and cycle count parameters.

Compliance Standards

Design criteria: BIFMA X5.1 Clause 17 - Durability test of casters/chair frames with foot chairs.

Product Accessories

Load-bearing base with 23 kg weight divided into 9 equal parts, plus additional 10 kg weights for each square, totaling 113 kg
Removable base obstacle block for smooth surface obstacle-free testing configurations

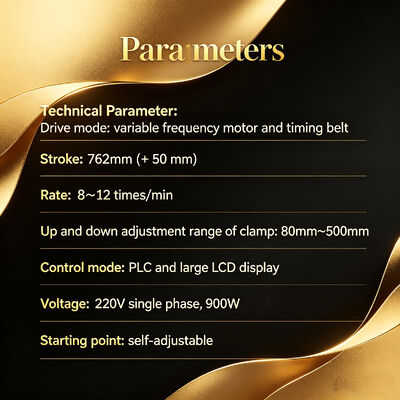

Technical Specifications

Drive Mode	Variable frequency motor and timing belt
Stroke	762mm (+50mm)
Rate	8-12 times/min
Clamp Adjustment Range	80mm-500mm (vertical)
Control System	PLC with large LCD display
Voltage & Power	220V single phase, 900W
Starting Point	Self-adjustable

Product Image
