ASTM F1566 Mattress Compression Machine

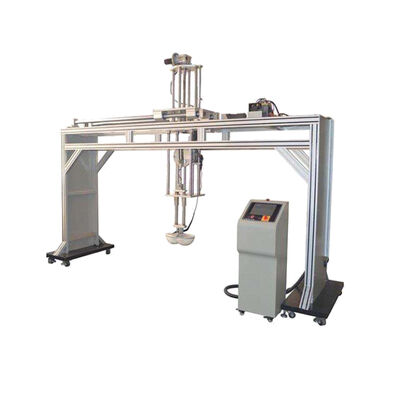

Large Image : ASTM F1566 Mattress Compression Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS5000
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Name:	Cornell Mattress Testing Machine	Conforms To The Standard:	ASTM F 1566-2009
Force Sensor:	200KG (one)	Test Speed:	20～300mm/min
Display Mode:	Touch Screen Display	Control Mode:	PLC Control
Test Stroke:	(Max) 300mm
Highlight:	ASTM F1566 mattress compression tester , furniture testing machine for mattresses , mattress compression machine with warranty

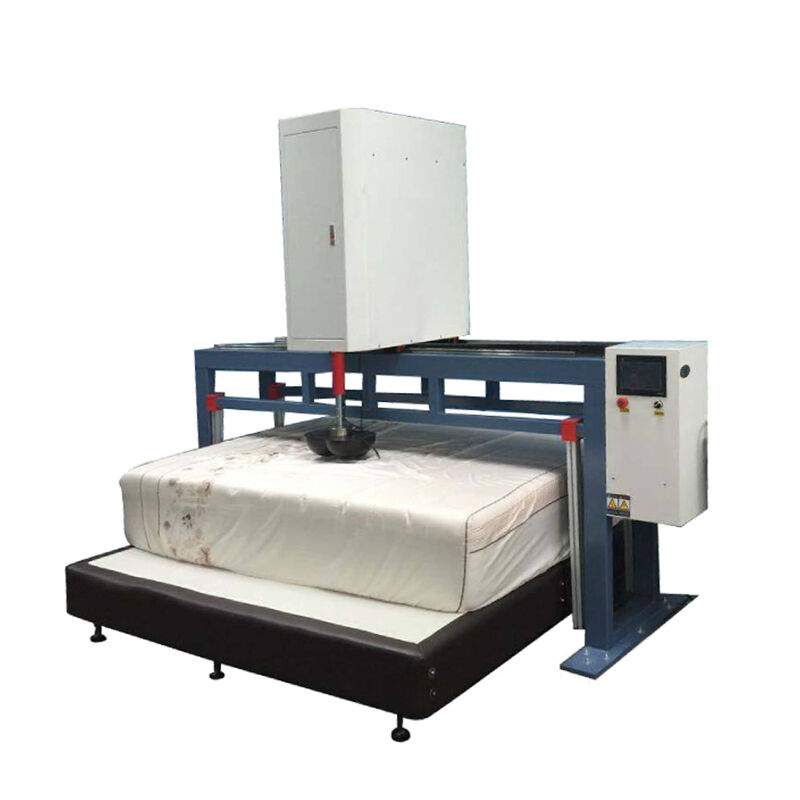

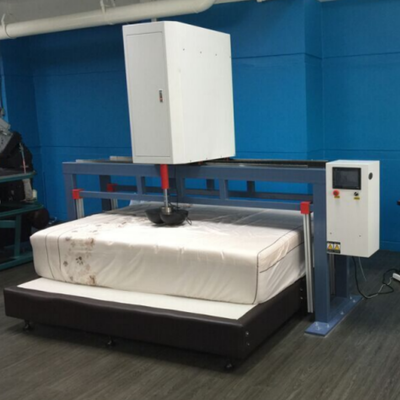

ASTM F1566 Mattress Compression Machine

The ASTM F1566 Mattress Compression Machine is designed to test the elasticity, compressibility, and service life of mattresses according to ASTM F1566-2009 standards. This motor-driven testing equipment applies controlled pressure to evaluate upholstered furniture performance under repetitive loads.

Specifications

Equipment Model	ZL-2011
Conforms to Standard	ASTM F 1566-2009

Technical Parameters

Force sensor: 200KG (one)
Test speed: 20～300mm/min
Display mode: touch screen display
Control mode: PLC control
Test stroke: (Max) 300mm
Maximum size of testable sample (L*W*H): 2200*2200*400mm
Test times: 1-999999 times (arbitrarily set)
Power supply: AC /220V, 25A, 50HZ
Machine power: 1.3KW
Machine size: LxWxH=3620*2400*2000

The whole machine has abnormal alarm function for safety and reliability.
