BS EN 1957 ASTM 1566 Multifunctional Durability Comprehensive Mattress Rollator Fatigue Testing Machine

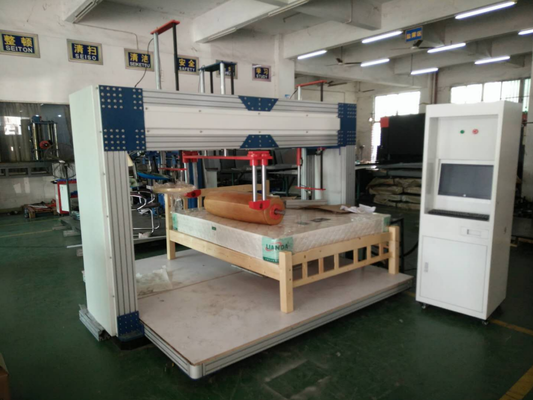

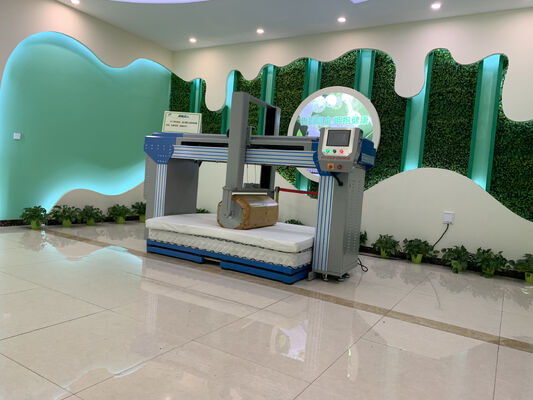

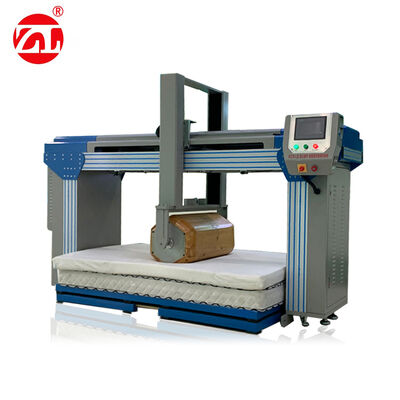

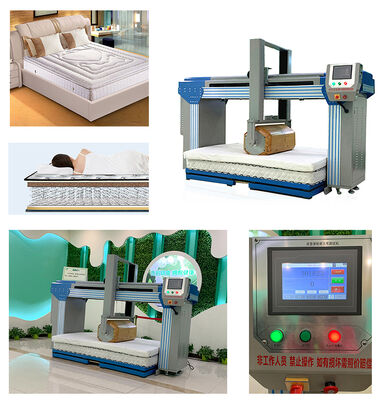

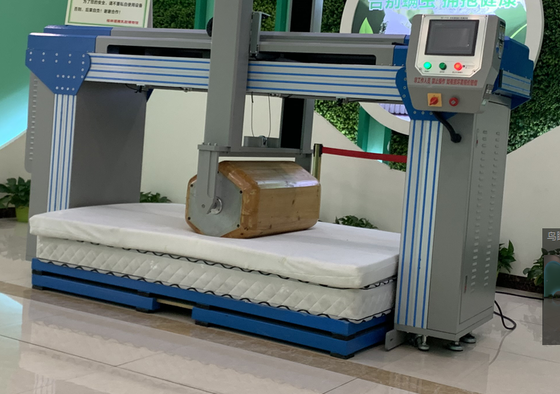

Large Image : BS EN 1957 ASTM 1566 Multifunctional Durability Comprehensive Mattress Rollator Fatigue Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS5000
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Mattress Rolling Fatigue Testing Machine	Standards Compliant:	QB/T 1952-2012、BS EN 1957-2012、ASTM 1566-014
Maximum Size Of Sample:	2300mm2300mm500mm	Drum Hex Length:	36 ± 3in (915 ± 75mm)
Hexagon Weight:	240 ± 10Lb (109 ± 4.5kg)	Hexagon Rim Distance:	17 ± 1in (430 ± 25mm)
Length Of Round Drum:	1000±2mm	Weight Of Round Drum:	1400±7N
Highlight:	Mattress Rollator Fatigue Testing Machine , Multifunctional Mattress Testing Machine , Durability Testing Machine for Mattresses

BS EN 1957 ASTM 1566 Multifunctional Durability Comprehensive Mattress Rollator Fatigue Testing Machine

Equipment Overview

The mattress rolling fatigue test machine is designed to simulate continuous human sleep rolling movements. This durability testing equipment uses a rolling loading module placed on horizontally positioned mattress loading sections, operating at specific frequencies to perform reciprocating loading tests. This evaluates the mattress's ability to withstand long-term repetitive rolling loads, determining product quality and service life while strictly adhering to national mechanical testing standards.

Suitable for testing various mattress types including strong spring mattresses, ordinary spring mattresses, foam mattresses, and brown fiber elastic mattresses.

Compliance Standards

QB/T 1952-2012
BS EN 1957-2012
ASTM 1566-014

Technical Specifications

Equipment Model: ZL-2008

Machine Dimensions: 2950 × 2500 × 1650 mm (Width × Depth × Height)

Parameter	Specification
Control Mode	PLC Programming Control
Maximum Sample Size	2300mm × 2300mm × 500mm
Drum Hex Length	36 ± 3in (915 ± 75mm)
Hexagon Weight	240 ± 10Lb (109 ± 4.5kg)
Hexagon Rim Distance	17 ± 1in (430 ± 25mm)
Length of Round Drum	1000 ± 2mm
Weight of Round Drum	1400 ± 7N
Diameter of Round Drum	300 ± 1mm
Test Distance	ASTM 1566: Maximum mattress width, minimum 70% of mattress width or 38in (965mm), whichever is smaller; BS EN 1957: 250mm in the middle of mattress
Left and Right Rolling Distance	1000mm (distance can be set)
Mattress Height Range	50mm - 600mm (adjustable)
Test Speed	Less than 20r/min (adjustable)
Power Supply	1∮, AC220V, 3kW

Tag:

Contact Person: Ms. Fiona Zhong

Tel: +86 135 3248 7540
