EN1957 Mattress Compression Hardness Tester Mattress Softness and Hardness test Machine Mattress Rolling Test Machine

Large Image : EN1957 Mattress Compression Hardness Tester Mattress Softness and Hardness test Machine Mattress Rolling Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2007

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS5000
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Mattress Firmness Tester	Reference Standard:	QB/T 1952.2-2011，EN1957
Loading Block:	The Diameter Is 355 Mm	Loading Speed:	20～300mm/min
Test Stroke:	500mm	Loading Plate Position Adjustment:	300mm Left And Right
The Maximum Size Of The Testable Mattress (L×W×H):	2200×2200×400mm
Highlight:	mattress compression hardness tester , mattress softness test machine , mattress rolling test machine

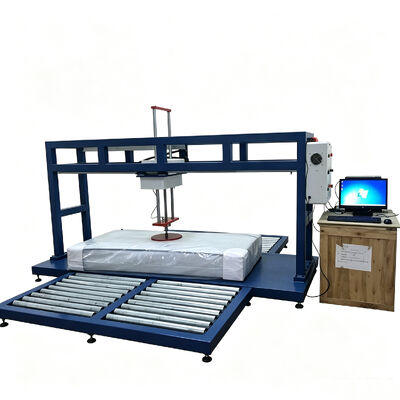

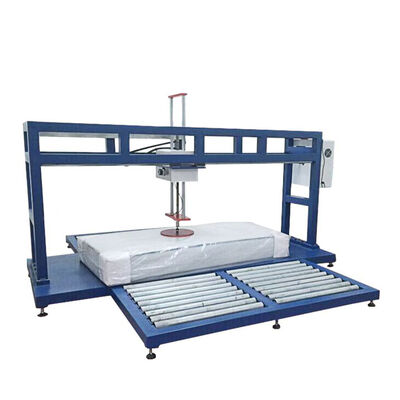

EN1957 Mattress Compression Hardness Tester

Product Overview

The EN1957 Mattress Compression Hardness Tester is a precision instrument designed to evaluate mattress softness and hardness levels through comprehensive testing. This machine features advanced control systems and is constructed from durable aluminum profiles for both performance and aesthetic appeal.

Testing Methodology

This hardness tester utilizes a spherical surface with a protruding bottom and circular rigid plate for loading. It records force value-displacement data from the loading curve to analyze and evaluate mattress hardness values and classification levels with precision.

Compliance Standards

QB/T 1952.2-2011, EN1957

Technical Specifications

Parameter	Specification
Loading Block	Diameter: 355 mm, Spherical surface radius: 800 mm, Front edge radius: 20 mm
Loading Speed	20～300 mm/min
Test Stroke	500 mm
Loading Plate Position Adjustment	300 mm left and right
Maximum Testable Mattress Size (L×W×H)	2200 × 2200 × 400 mm
Capacity	200 kg

Key Features

High-precision ARAM controller with specialized test software compatible with Windows operating systems
Comprehensive software operation with clear, user-friendly interface for easy operation
Durable aluminum profile construction with attractive, professional appearance
