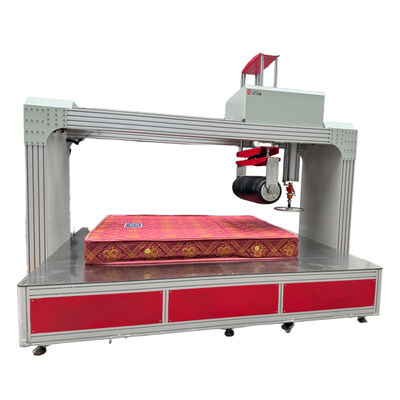

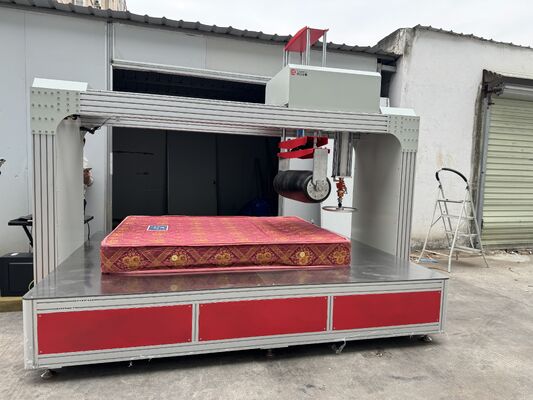

ASTM F1566 EN1957 Large Mattress Comprehensive Tester for Rolling Hardness Edge Side Pressure Fatigue Resistance Durability Test

Large Image : ASTM F1566 EN1957 Large Mattress Comprehensive Tester for Rolling Hardness Edge Side Pressure Fatigue Resistance Durability Test

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2006

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Mattress Three Comprehensive Tester	Meet The Standards:	QB/T 1952.2-2011, ASTM F 1566 And EN 1957
Hexagonal Drum Length:	36±3in (915±75mm)	Hexagonal Drum Weight:	240±10Lb (109±4, 5kg)
Hexagonal Roller Side-to-side Distance:	17±1in (430±25mm)	Length Of Round Drum:	1000mm
Round Drum Weight:	1400N
Highlight:	ASTM F1566 mattress tester , EN1957 mattress durability tester , large mattress fatigue resistance tester

ASTM F1566 EN1957 Large Mattress Comprehensive Tester

Rolling Hardness Edge Side Pressure Fatigue Resistance Durability Test

Product Overview

This comprehensive mattress tester is designed for various mattress durability tests, including vertical downward force tests and height measurement. It evaluates rolling hardness, edge side pressure, fatigue resistance, and overall durability.

Compliance Standards: QB/T 1952.2-2011, ASTM F1566, and EN 1957 requirements

Application & Purpose

The mattress rolling durability test machine simulates constant rolling movements during human sleep and evaluates mattress edge durability. It is essential for testing mattress quality and service life, strictly adhering to national standards for mechanical testing.

Suitable for:

Strong spring mattresses
Ordinary spring mattresses
Foam mattresses
Brown fiber elastic mattresses

Loading Test Procedure

Before testing, the roller device is adjusted to the center line of the loading area. The driving apparatus applies force in the horizontal direction, performing reciprocating motion where each loading includes one reciprocation. During testing, appropriate methods are used to secure the mattress and prevent movement.

Technical Parameters

Parameter	Specification
Controller	Full computer control
Hexagonal drum length	36±3in (915±75mm)
Hexagonal drum weight	240±10Lb (109±4.5kg)
Hexagonal roller side-to-side distance	17±1in (430±25mm)

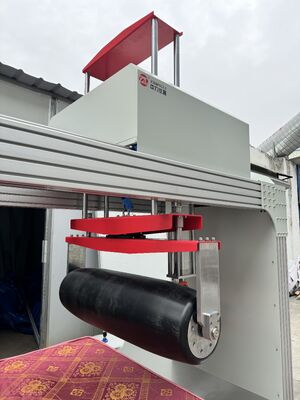

Length of round drum	1000mm
Round drum weight	1400N
Diameter of round drum	300mm
Rolling speed	20±2 times/min
Measurement accuracy	Force measuring device: ≥1% Size device: ≥1mm Loading block position deviation: ±5mm
Control method	Full computer control
Monitoring method	Buzzer alarm, indicator light flashes
Running accuracy	±0.2mm
Roller material	Electrical wood material
Motor	Japan servo motor
Appearance	Paint treatment and aluminum alloy structure anode treatment
Test table material	Stainless steel
Test table height from ground	500mm
Test mattress size	2200×2000mm (length×width)
Height test procedure	Place mattress horizontally on flat plate, apply 4N force vertically downward at (100±20)mm/min speed using circular pad. Measure distance between lower surface of circular block and flat plate as mattress store height HD.
Power supply	AC220V 50HZ single-phase, approximately 2.2KW
