BIFMA X5 BIFMA 5.1Performance Furniture Tester Equipment Office Chair Stability Tester

Large Image : BIFMA X5 BIFMA 5.1Performance Furniture Tester Equipment Office Chair Stability Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2005

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Chair Stability Tester Platform	Test Bench Plane:	1000×1800mm
The Maximum Load Of The Counterweight Basket:	150kg	Maximum Stroke Of Counterweight Basket:	350mm
Warranty Period:	2 Years
Highlight:	BIFMA X5 furniture tester equipment , office chair stability tester , BIFMA 5.1 performance furniture tester

BIFMA X5 BIFMA 5.1 Performance Furniture Tester Equipment Office Chair Stability Tester

Product Overview

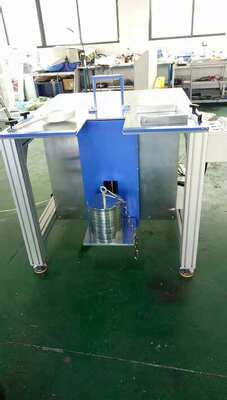

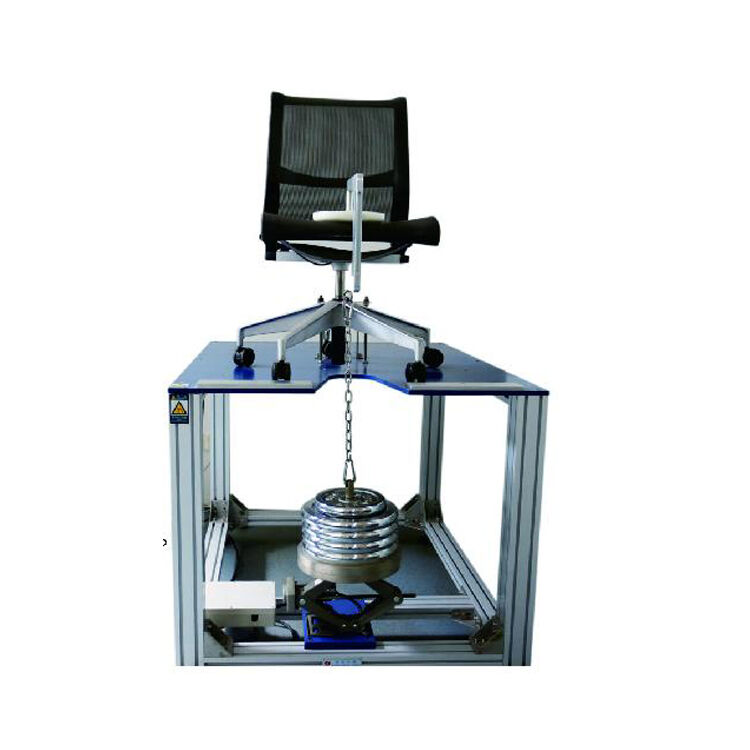

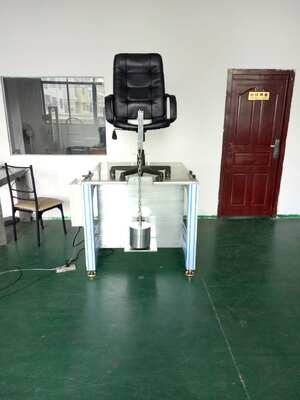

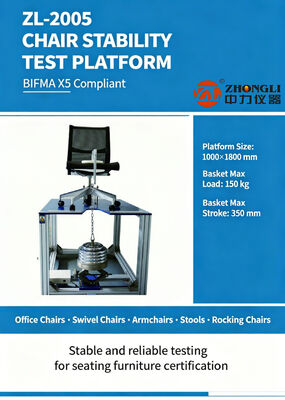

The chair stability tester is an experimental device designed for testing the stability of various seating furniture including swivel chairs, armchairs, stools, and rocking chairs.

Reference Standard

BIFMA X5

Key Features

Aluminum profile frame structure with 12mm aluminum base plate
Test platform size: 1000×1800mm with 160×160mm gap for counterweight placement
Test platform height: 800mm from ground, suitable for various chair types
Counterweight basket located under test platform with maximum load capacity: 150kg
Weights can be placed on both sides of test platform
Test plane includes 1 hook and loop, 1 clasp, and 2 cutting tapes

Technical Specifications

Parameter	Specification
Test Bench Plane	1000×1800mm
Maximum Load of Counterweight Basket	150kg
Maximum Stroke of Counterweight Basket	350mm
