EN 1728 EN 1335 BIFMA X5.1 Office Chair Rotation Durability Tester

Large Image : EN 1728 EN 1335 BIFMA X5.1 Office Chair Rotation Durability Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2003

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS3000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Digital Display Rotation Frequency RPM:	5～15CPM	Rotation Angle:	Optional Arbitrary Angle Repeated Rotation Or Unidirectional Rotation Working Mode
Cylinder Output:	158.5KgF	Height Of Bearing Surface (seat Cushion):	350～800mm
Diameter Of Turntable:	740mm	Power Supply (power):	Single-phase 220V/50Hz/3A
Weight:	212KG
Highlight:	EN 1728 office chair tester , BIFMA X5.1 rotation durability tester , EN 1335 furniture testing machine

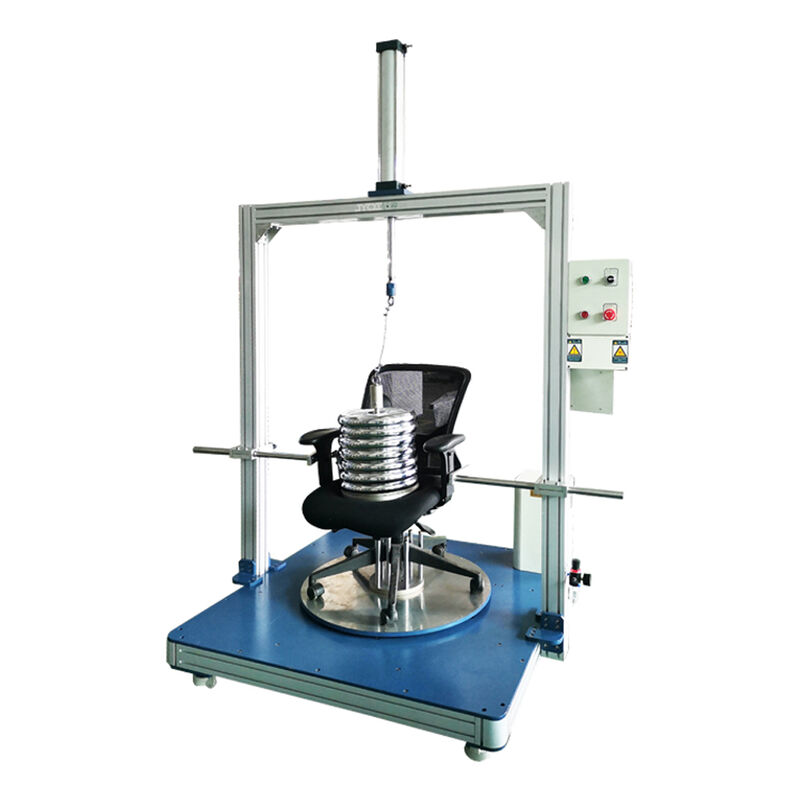

EN 1728 EN 1335 BIFMA X5.1 Office Chair Rotation Durability Tester

Product Overview

This professional testing equipment is designed for evaluating the rotation durability of all types of swivel office chairs. The system features motor-driven rotation with precise speed control, stable pressure regulation, and adaptive clamping mechanisms that simulate real-world usage conditions.

Compliance Standards

Meets requirements of QB/T 2280-2007, BIFMA X5.1-2011, and EN 1335:2000 standards for office chair testing.

Technical Specifications

Digital Display Rotation Frequency	5～15 CPM
Rotation Angle	Optional arbitrary angle repeated rotation or unidirectional rotation
Cylinder Output	158.5 KgF
Eccentric Distance	2 inches (mechanical structure ensures load force positioning)
Counting Range	0-999,999 with stop and power-off memory function
Bearing Surface Height	350～800mm
Turntable Diameter	740mm
Power Supply	Single-phase 220V/50Hz/3A
Air Source Requirements	Pressure ≥0.5MPa; Flow rate ≥800L/min; Filtered and dried air
Main Body Dimensions	1200×1000×1680mm (L×W×H)
Weight	212kg

Control System Features

Touch screen with PLC and power-off memory function
Breakpoint protection (alarm) function
Deceleration motor with frequency conversion control
Manual pressure regulation with SMC precision barometer
Counter stop/power-off memory function
Dial knob selection for arbitrary or 360-degree rotation mode

Standard Accessories

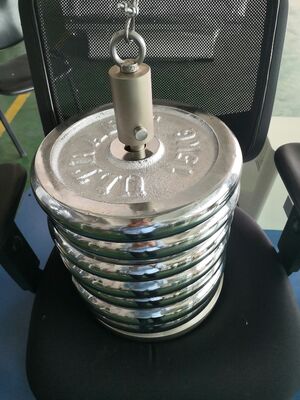

Includes 1 set of chair center positioning template and 1 set of seat surface loading pad with universal joint.

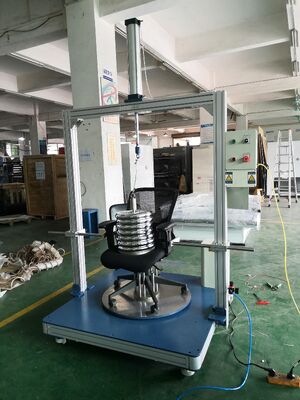

Product Image
