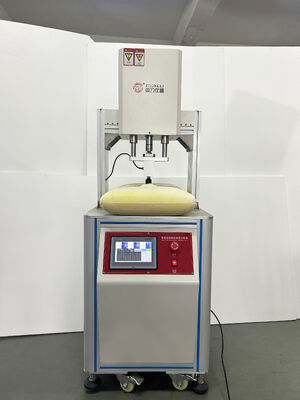

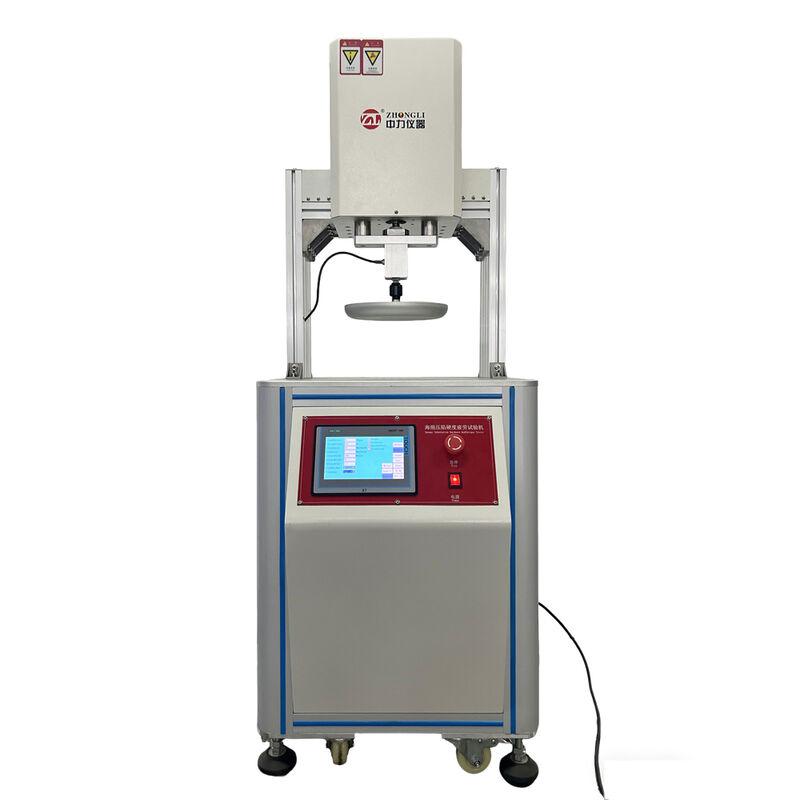

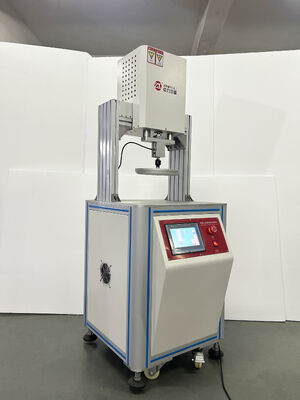

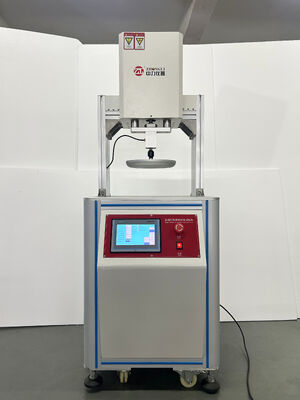

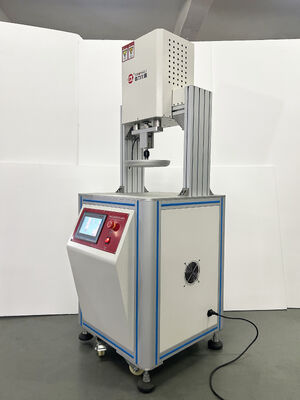

ASTM D3574 ISO 2439 IFD Tester Sponge Indentation Hardness Tester Foam Compression Tester

This machine determines the indentation hardness of porous elastic materials according to ASTM D3574 and ISO 2439 standards. It accurately measures polyurethane sponge foam specimens and can evaluate indentation hardness for various foam materials, including seat components such as backrests and seat cushions.

The sponge foam compression stress test places the specimen between upper and lower platens. The upper platen compresses the specimen at a specified speed to achieve the required indentation depth according to national standard methods (A, B, or C method). The load element senses pressure and feeds data to the controller for processing and display, enabling precise measurement of material indentation hardness.

• Automatic zeroing: System automatically clears zero upon test start command
• Automatic return: Returns to initial position after specimen break
• Automatic gear change: Switches gears based on load size for measurement accuracy
• Variable speed: Adjustable test speeds for different specimens
• Signal value calibration: Precise force value calibration capability
• Multiple control methods: Test force, speed, displacement, and strain options
• Multi-use capability: Compatible with different sensor specifications
• Curve traversal: Point-by-point analysis of test curve data
• Dynamic display: Real-time data and curve visualization during testing
• Results analysis: Comprehensive test result access and data curve analysis
• Dual limits: Program control and mechanical limit protection
• Overload protection: Automatic stop when exceeding rated load values
