EN 344 ISO 20344 SATRA TM172 ISO 17699 Leather Water Vapor Air Permeability Tester for Footwear Textile Breathability Evaluation

Large Image : EN 344 ISO 20344 SATRA TM172 ISO 17699 Leather Water Vapor Air Permeability Tester for Footwear Textile Breathability Evaluation

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7070

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS1200-1800
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Water Vapour Permeability Tester	Standards:	Meet SATRA TM172、EN ISO20344、BS3144
Fan Speed:	(1400±100)r/min	Bottle Diameter:	(30±1)mm
Bottle Rotate Speed:	(75±5)r/min	Distance From Bottle Mouth To Fan:	(10±5)mm
Highlight:	EN 344 leather breathability tester , ISO 20344 footwear air permeability tester , SATRA TM172 textile water vapor tester

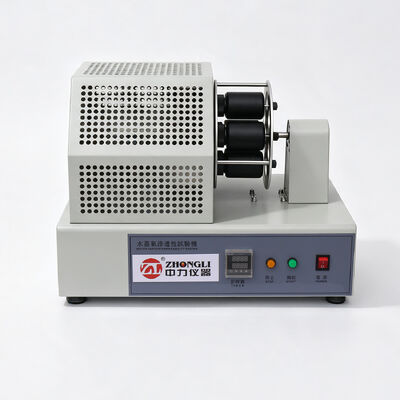

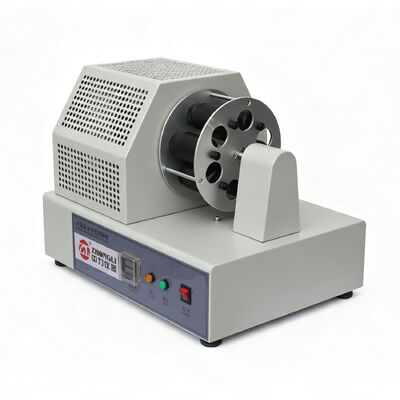

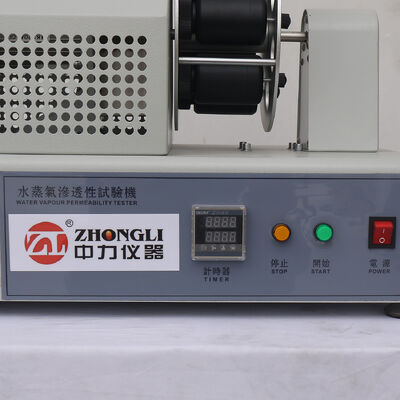

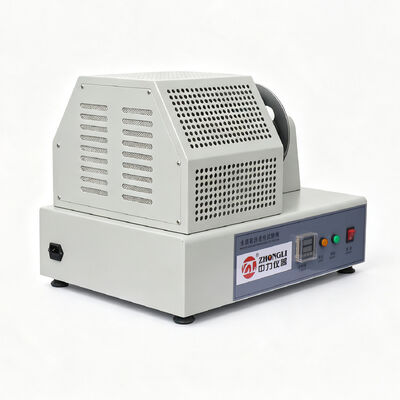

EN 344 ISO 20344 SATRA TM172 ISO 17699 Leather Water Vapor Air Permeability Tester for Footwear Textile Breathability Evaluation

Product Overview

This water vapor permeability tester evaluates the breathability of footwear and textile materials by measuring water vapor transmission through test specimens. The instrument rotates test bottles containing desiccant, creating air disturbance to continuously absorb water vapor through the test material, providing accurate permeability assessment.

Testing Principle

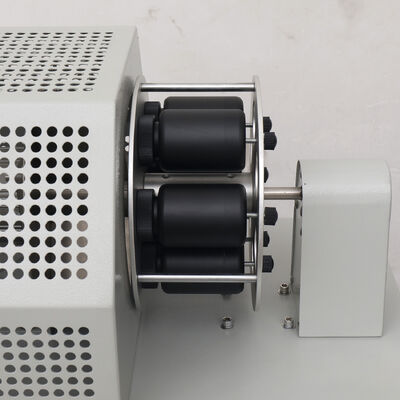

Circular test specimens are fixed in the water vapor permeability tester with test bottles containing a measured amount of solid desiccant. The desiccant inside the test bottle is separated from the air bottle, and through the tester's rotation mechanism and fan operation, the desiccant continuously absorbs water vapor passing through the test specimen. Water vapor permeability is evaluated by weighing the mass of absorbed water vapor over a specific time period.

Compliance Standards

Meets SATRA TM172, EN ISO 20344, BS 3144 and related international standards for footwear and textile breathability testing.

Technical Specifications

Parameter	Value
Fan Speed	(1400±100) r/min
Bottle Diameter	(30±1) mm
Bottle Rotate Speed	(75±5) r/min
Distance From Bottle Mouth to Fan	(10±5) mm
Power	AC220V, 10W
Dimension	400 * 560 * 430 mm
Net Weight	23 kg

Standard Accessories

Cutting die: 1 PC
Power cord: 1 PC
Manual: 1 Copy
