EN 344 ISO 17707 Vertical Whole Shoes Sole Flexing Testing Machine

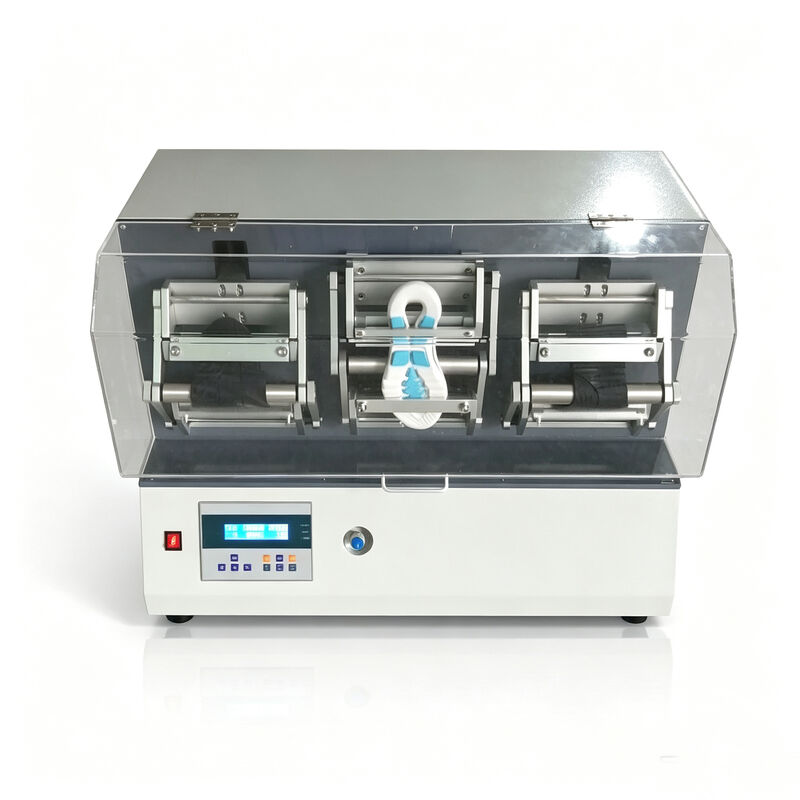

Large Image : EN 344 ISO 17707 Vertical Whole Shoes Sole Flexing Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7041B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS1800-3000
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Whole Shoes Sole Flexing Testing Machine	Flexing Angle:	(90±2)°
Speed:	Adjustable From 5 To 150 R/min	Flexing Shaft Diameter:	30 Mm
Dimensions:	(83 × 45 × 62) Cm	Weight:	Approx. 115 Kg
Power:	400 W (inverter Motor)
Highlight:	EN 344 sole flexing tester , ISO 17707 shoe testing machine , vertical sole flexing machine

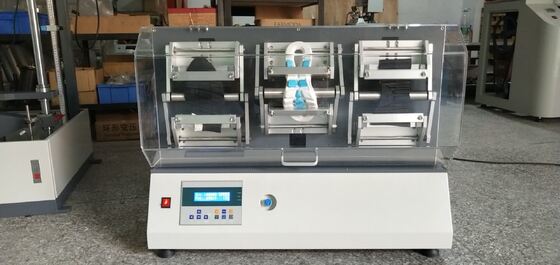

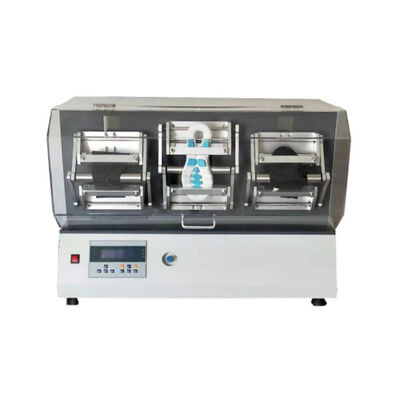

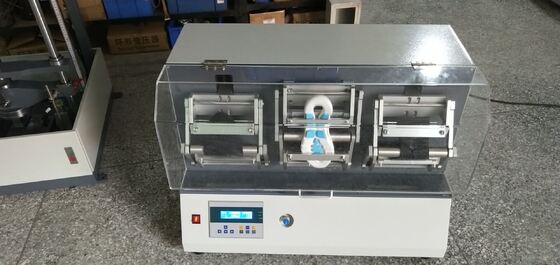

EN 344 ISO 17707 Vertical Whole Shoes Sole Flexing Testing Machine

Instrument Overview

The sole test specimen is mounted on the EN flexing resistance tester, with its cut notch positioned directly above the center axis of the rotating shaft. The tester drives the specimen to undergo (90±2)° flexing (stretching) over the shaft. After a predetermined number of test cycles, the length of the cut notch on the specimen is measured. The flexing resistance of the test sole is evaluated based on the rate of notch growth.

Compliance Standards

GB/T 20991
GB/T 21148
SATRA TM161
EN ISO 20344
ISO 17707
EN 344
Other equivalent standards

Technical Specifications

Testing Capacity	Capable of testing three outsoles simultaneously
Flexing Angle	(90±2)°
Speed	Adjustable from 5 to 150 r/min
Flexing Shaft Diameter	30 mm
Dimensions	83 × 45 × 62 cm
Weight	Approximately 115 kg
Power	400 W (inverter motor)
Power Supply	AC 220 V, 5 A

Note: Equipped with a variable-frequency drive (VFD) motor with braking function, enabling more precise positioning of the fixture at both the lowest and highest points. The specimen is loaded onto the fixture at the lowest point, while notch drilling and observation of cut growth are performed at the highest point.
