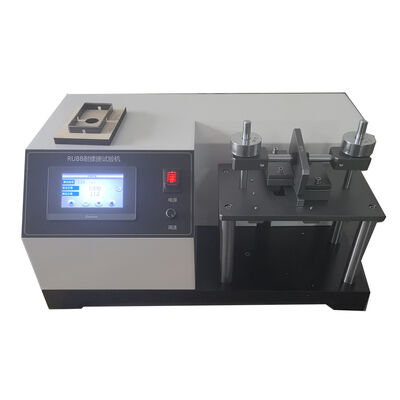

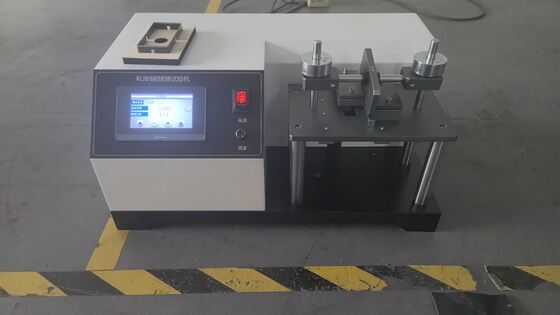

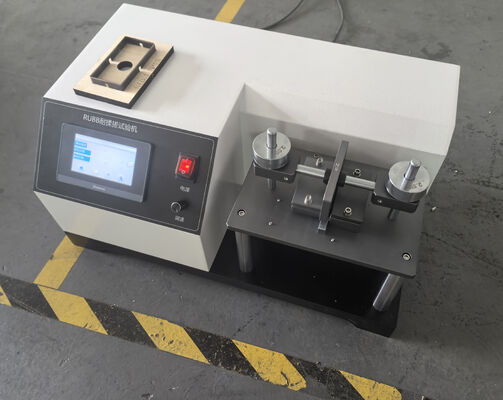

HG/T 3048 ISO 5981 Pressure Method & Non-pressure Method RUBB Flexing Resistance Tester for Polyurethane Coated Materials

Large Image : HG/T 3048 ISO 5981 Pressure Method & Non-pressure Method RUBB Flexing Resistance Tester for Polyurethane Coated Materials

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7076

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS3000-4500
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	RUBB Flexing Resistance Tester	Number Of Test Specimens:	1 Piece
Clamp Spacing:	12mm ± 0.3mm	Pressure Plate Dimensions:	Length (100 ± 1) Mm × Width (10 ± 0.2) Mm
Pressure Plate Load:	5N ± 0.1N / 10N ± 0.2N	Loading Method:	Incremental Weight Stacking
Rubbing Distance:	40mm ± 1mm	Test Speed:	144 - 180 Cycles/min (2.4 - 3.0 Hz)
Highlight:	RUBB flexing resistance tester for polyurethane , ISO 5981 pressure method tester , Non-pressure method leather testing machine

HG/T 3048 ISO 5981 Pressure Method & Non-pressure Method RUBB Flexing Resistance Tester for Polyurethane Coated Materials

This instrument applies force to specimens using pressure plates, testing the shear flexing resistance of coating materials through rubbing action. It is specifically designed for materials with adhesive surfaces or thin polyurethane coatings applied to rough surfaces.

Instrument Functions

Designed for testing the flexing resistance of polyurethane-coated materials, featuring both pressure method and non-pressure method testing capabilities.

Applicable Standards

ISO 5981, HG/T 3048, CITROËN D42 1007

Key Features

Surface treatment: American DuPont powder coating with electrostatic spray painting process, cured at 200℃ for long-lasting color retention
Mechanical components constructed from non-corrosive aluminum and stainless steel
LED-SLD806 integrated display control box with menu-based operation
Precision drive motor for smooth operation and low noise
Control method: Chinese/English touch screen control

Technical Specifications

Number of test specimens	1 piece
Clamp spacing	12mm ± 0.3mm
Pressure plate dimensions	Length (100 ± 1) mm × Width (10 ± 0.2) mm
Pressure plate load	5N ± 0.1N / 10N ± 0.2N
Loading method	Incremental weight stacking
Rubbing distance	40mm ± 1mm
Test speed	144 - 180 cycles/min (2.4 - 3.0 Hz)

Standard Configuration

Main unit - 1 unit
Power cord - 1 piece
Instruction manual - 1 copy
Delivery note - 1 copy
Packing list - 1 copy
