ASTM D1790 Shoes Low Temperature Flex Bending Tester Leather Low Temperature Flexing Testing Machine

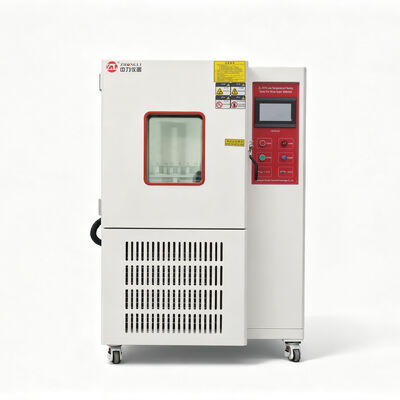

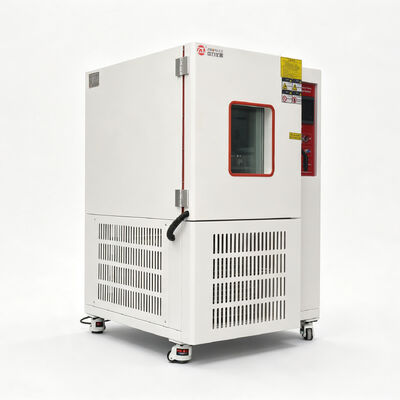

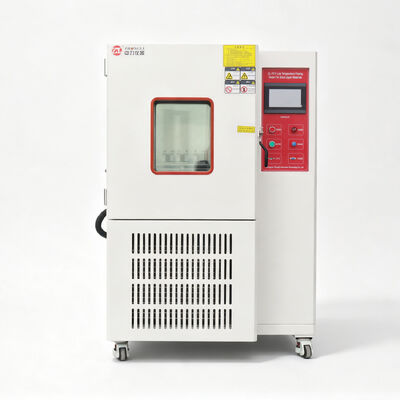

Large Image : ASTM D1790 Shoes Low Temperature Flex Bending Tester Leather Low Temperature Flexing Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS3800-4800
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Name:	Vertical Low-Temperature Testing Machine	Temperature Range:	Room Temperature -40℃
Control Accuracy:	± 0.3 ℃	Distribution Uniformity:	± 0.1 ℃
Cooling Speed:	Room Temperature To -30 ℃ Takes About	Compressor Start Time Delay:	5min
Power Consumption:	(4-6)KW
Highlight:	ASTM D1790 shoes flex tester , low temperature bending testing machine , leather flexing tester with warranty

ASTM D1790 Shoes Low Temperature Flex Bending Tester

The ZL-7011A Vertical Low Temperature Flexing Testing Machine is designed for testing finished shoes, rubber, plastics, shoe soles, synthetic leather, and other materials in cryogenic or cool environments. Featuring a vertical design that eliminates the need to bend over when gripping specimens, this machine offers enhanced operational convenience and efficiency.

Equipment Overview

Constructed from stainless steel, this testing machine can accommodate various fixtures to meet diverse testing requirements. The vertical design provides ergonomic benefits while maintaining precision in low-temperature testing applications.

Standards Compliance

ASTM D1790
ASTM D1593
JIS K6545

Industry Applications

Suitable for testing leather performance in footwear, clothing, luggage, and handbag industries. Also used in research laboratories, commodity inspection, arbitration, and technical supervision departments.

Technical Specifications

Parameter	Specification
Model	ZL-7011A
Internal Dimensions	400 * 500 * 400 mm (L * W * H)
Fixture Options	Sole folding, leather folding, shoes folding (customizable)
Temperature Range	Normal temperature to -40℃
Temperature Uniformity	≤ ±0.5℃ / +2℃ to -3℃
Cooling Time	-25℃ to -40℃ (approximately 80 minutes)
Controller	LED digital controller (Taiwan) with P,I,D + S,S,R microcomputer control
Accuracy Range	Setting accuracy: ±0.1℃, Display accuracy: ±0.1℃, Resolution: ±0.1℃
Cooling System	Fully enclosed air-cooled single-stage compression refrigeration (French "Taikang" compressor)
Compressor Start Delay	5 minutes
Circulation System	Temperature-controlled, low-noise, air-conditioning-type motor with multi-vane centrifugal wind wheel
Exterior Material	High-quality carbon steel with phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment
Interior Material	SUS304 high-quality stainless steel light board
Insulation Material	Rigid polyurethane foam, ultra-fine glass fiber cotton
Standard Configuration	Multi-heated glass window with lighting, 2 testing product shelves, test leads holes (25, 50 mm)
Safety Protection	Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
Timing Range	0.1 - 999.9 (S, M, H) adjustable
Power	2.5 KW
Voltage	AC380V ±10%, 50 ±0.5Hz, Three-phase five-wire system
Environmental Temperature	5℃ to +30℃, ≤85% R.H.

Note: Above data were measured at ambient temperature of 25℃ under no-load conditions. Non-standard high-low-temperature testing machines can be customized according to user requirements.
