"4 Groups premium quality Permeameter Leather Testing Machine For Raw Material Uppers , 6 Digit Display LCD"

"4 Groups premium quality Permeameter Leather Testing Machine For Raw Material Uppers , 6 Digit Display LCD"
"4 Groups premium quality Permeameter Leather Testing Machine For Raw Material Uppers , 6 Digit Display LCD"

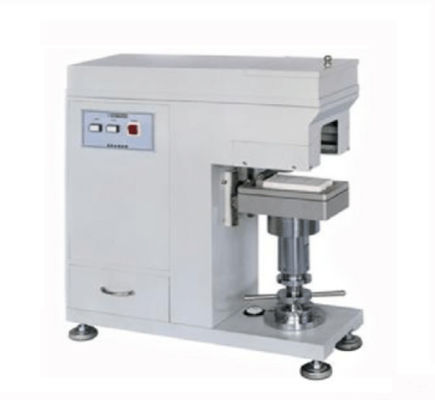

Large Image :  "4 Groups premium quality Permeameter Leather Testing Machine For Raw Material Uppers , 6 Digit Display LCD"

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-7032
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Bally Permeameter is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets / month
Contact Now
Detailed Product Description
Product Name: Bally Permeameter Compression Force: 80±5N
The Platform Surface Roughness: 25μm Timer: LED, Accurate To 0.01s, 1 ~ 100hr
Die (Optional): Conform Cut （110±1）mm, Width （40±1）mm Of Die Cutter Test Tank Size: Diameter 120mm Width 50mm
Counter: 6 Digit Display LCD Number Of Specimens: 4 Groups
Product Name: Premium Quality Permeameter
Highlight:

leather testing equipment

,

leather measuring machine

\n

\n
\n
4 Groups premium quality Permeameter Leather Testing Machine For Raw Material Uppers, 6 Digit Display LCD
\n
\n
\n
Product Overview
\n

The 4 Groups premium quality Permeameter is designed for testing raw material uppers including leather, fabric, and similar materials. The machine subjects specimens to repeated flexing action under controlled pressure and moisture conditions to evaluate penetration resistance and absorption characteristics.

\n
\n
\n
Technical Specifications
\n
    \n
  • Test tank diameter: 120mm with 50mm width roller placement
    • \n
  • Compression force: 80\u00b15N via spring or pneumatic system
    • \n
  • Reciprocating movement frequency: 20 times/minute
    • \n
  • Reciprocating displacement: 50\u00b11mm
    • \n
  • Test piece fixation system with spring mechanism to prevent wrinkles
    • \n
  • Platform surface roughness: 25\u03bcm with 3-5 layers of cotton cloth
    • \n
  • Water flow rate: 7.5\u00b12.5ml/min
    • \n
  • Built-in water penetration indication and audible alarm system
    • \n
  • Timer: LED display, accurate to 0.01s, range 1-100 hours
    • \n
  • Counter: 6 digit LCD display
    • \n
  • Optional die cutter: (110\u00b11)mm \u00d7 (40\u00b11)mm
    • \n
  • Number of specimen groups: 4
    • \n
\n
\n
\n4 Groups premium quality Permeameter Leather Testing Machine\n
