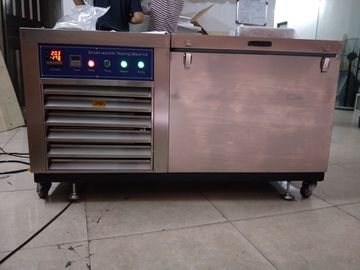

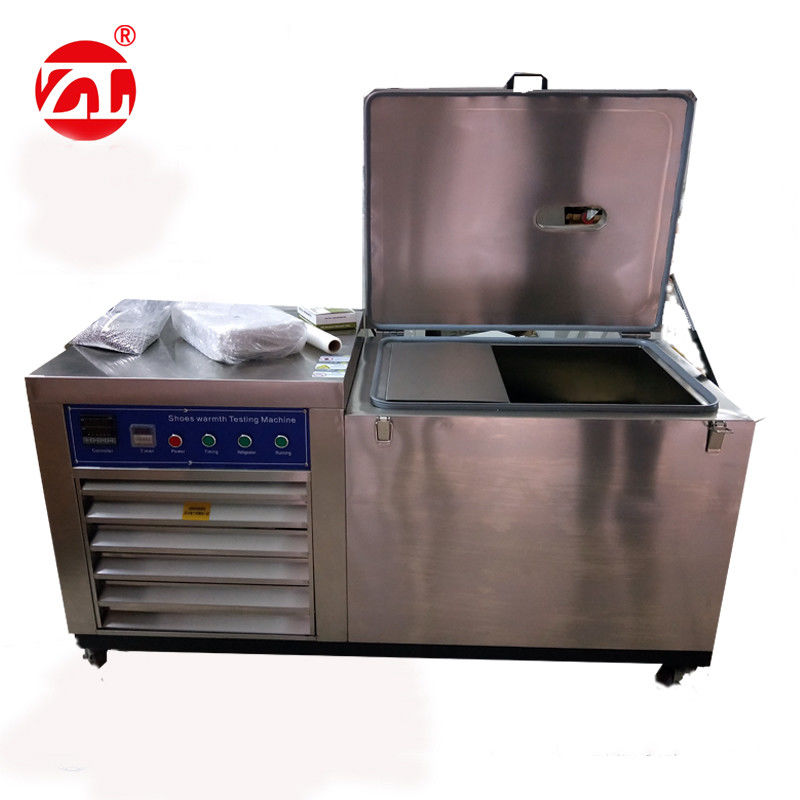

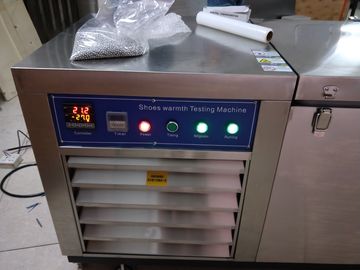

Shoes Thermal Insulation Leather Testing Machine With Stainless Steel ASTM D 1790

Meeting Standards:

ASTM D 1790, D 1593, 1052, JIS K6545, EN ISO 20344, HG/T24I I, HG/T287I, GB/T2099I, CNS 7705, QB/T2224, QB/T 1471. DIN 53351, Adidas GE-24 , Adidas GE-57, SATRA Tm92 , SATRA TM 161

This machine is suitable for the cold resistance test of various footwear. The test method is to fix the center of the insole with thermocouple. The shoe is filled with steel, put the shoes, adjust the bracket so that the upper edge of the shoe is equal to the opening of the insulating box. Seal the opening of the cryostat with a heat shield, cool the cryostat to the specified temperature, and record the change in the insole temperature over time in 30 minutes.

Specifications:

1. Inner and outer box material: stainless steel Sus#304

2. Controller: Japanese Omron PID Control

3. Temperature range: (I) Normal temperature ~ -30 degrees (II) Normal temperature ~ -50 degrees

4. Optional inner box action: add finished shoes resistant to bending, outsole resistance to bending, leather resistant fixture (or customized)

5. Protection device: thermal protection shutdown, leakage shutdown, over temperature protection, overload protection and other functions

6. Control accuracy: ±0.3 degrees

7. Distribution uniformity: ± 1 degree

8. Cooling speed: about 45min from room temperature to -30 degrees

9. Refrigerant: R404 environmentally friendly refrigerant

10. Compressor: Taikang, France

11. Compressor start delay: 5min

12. Power consumption: 4-6KW

13. Insulation material: rigid foam and glass wool

14. Counter: LCD, 0~999,999

15. Window: 210*35*270mm, two vacuum layers 2

16. Window light: P1 lamp Lamp, 5w

17. Motor: No belt type imported gear reduction motor

18. Power: AC380V 50Hz or AC220V50HZ

19. Inner box size: 600*600*550mm

20. Volume: 200*78*100cm

21. Weight: 300kg
