Product Name: | GB/T 32024 PLC Control Footwear Torsion Tester 50 NM Capacity | Test Capacity: | 50N • M |
---|---|---|---|
Power Resolution: | 1 / 50,000 | Control System: | PLC Control |
Heel Lifting Angle: | 25 ± 0.5 ° (0 ~ 40 ° Can Be Set) | Torsion Angle: | 0 ~ ± 40 ° Can Be Set |
Angle Resolution: | 0.1 ° | Speed: | 0 ~ 5rad / Min Can Be Set |
Power Supply: | 1∮ 220V 50Hz | Key Words: | Footwear Torsion |
Highlight: | GB/T 32024 Torsion Tester,PLC Control Torsion Tester,Footwear Torsion Testing Machine |

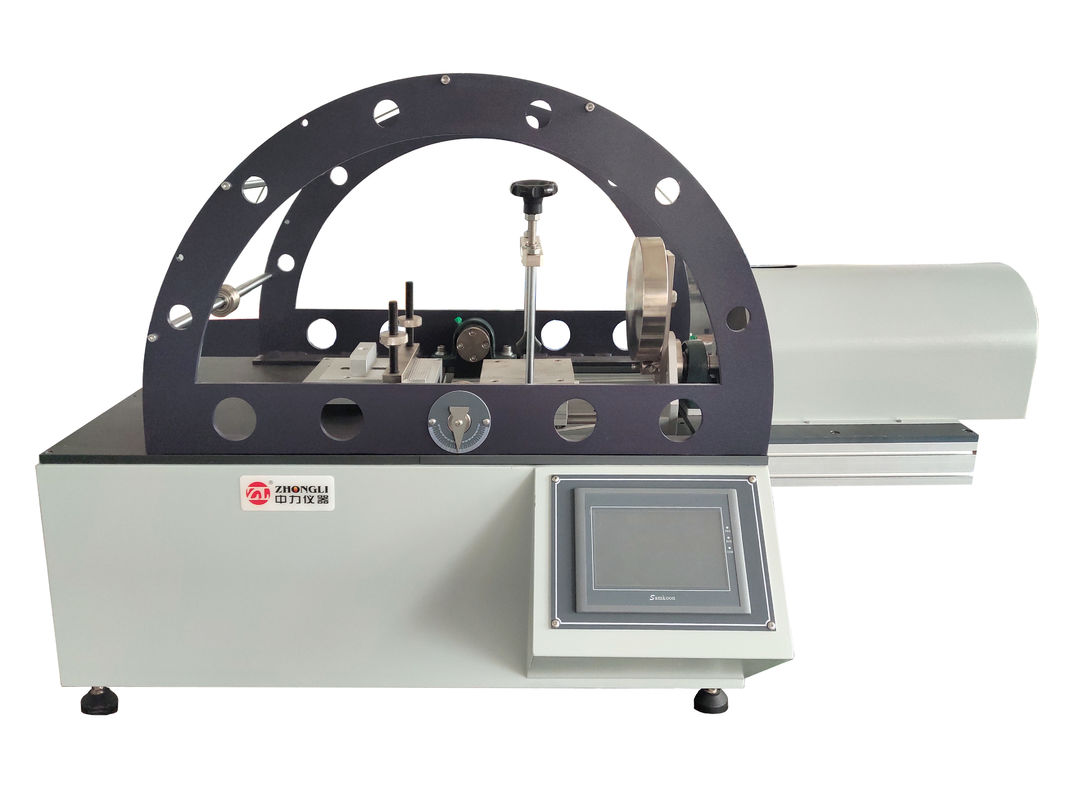

GB/T 32024 PLC Control Footwear Torsion Tester 50 NM Capacity
1. Purpose
This machine is mainly used to test all kinds of torsional strength tests of finished shoes.
2. Principle
lFix the sole on the test platform, adjust the position of the platform, use manual positioning to lift the shoe to a certain angle, and then twist the shoe to test the maximum torque experienced by the shoe during the test again.
3.Standards
GB/T 32024-2015.
4.Parameter
Test capacity | 50N • m |
Power resolution | 1 / 50,000 |
Control system | PLC control |
Heel lifting angle | 25 ± 0.5 ° (0 ~ 40 ° can be set) |
Torsion angle | 0 ~ ± 40 ° can be set |
Angle resolution | 0.1 ° |
Speed | 0 ~ 5rad / min can be set |
Volume | 1360 × 440 × 900mm |
Weight (approximately) | 65kg |
Power supply | 1∮ 220V 50Hz |
