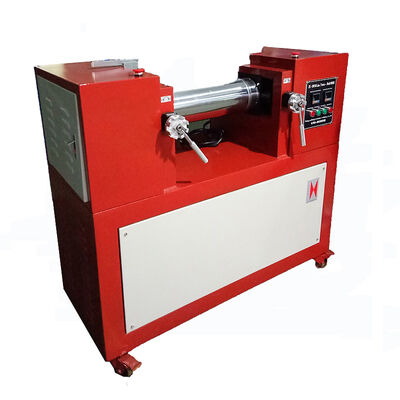

Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control

Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control
Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control

Large Image :  Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5,000
Contact Now
Detailed Product Description
Roll Diameter: 160 Mm Front Roll Speed: 1 - 19 Rpm
Roll Length: 350 Mm Roll Ratio: 1:1.25
Voltage: 380V Power: 2.8 KW
Weight: 380 Kg Dimensions: 960*550*1150 Mm
Roller Hardness: HRC 50 ~ 60 Temperature Accuracy: ± 3 ℃
Warm-up Time: RT~ 150 ℃ About 20min Cooling Mode: Water Cooling (option)
Roll Gap Range: 0-6 Mm Roll Temperature: Room Temperature -- 300℃
Core Components: PLC, Motor
Highlight:

silicone rubber two roll mill

,

variable speed two roll mill

,

digital temperature control two roll mill

Professional Lab Silicone Rubber Two Roll Mill
This variable speed two roll mill with digital temperature control is engineered for unmatched performance in masticating and kneading natural rubber, synthetic rubber, EVA, or PVC pellets with various chemical materials.
Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control 0
Applications
Widely used in rubber and plastics industry for polymer mixing, including PVC and color master batch applications. The system consists of rolls, bearings, gap adjusting device, electric control system, and safety features.
Technical Specifications
Model ZL-3018-76 ZL-3018-120 ZL-3018-160 ZL-3018-200 ZL-3018-230 ZL-3018-300 ZL-3018-400
Diameter of roll (mm) 76 120 160 200 230 300 400
Length of roller face (mm) 300 350 350 500 650 650 900
Mixing Capacity (kg) 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed (rpm) 19 19 19 19 19 19 19
Friction ratio 1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range (mm) 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power (KW) 1 1.5 2.2 7.5 11 30 37
Machine weight (kg) 160 460 660 860 1960 2960 3800
Overall dimension (mm) 1100x400x1180 1100x550x1380 1200x650x1380 2200x750x1380 2200x950x1580 2600x950x1580 5295x1789x170
Additional Specifications:
Heating Mode: Electricity heating, Oil Heating (option)
Cooling Mode: Water Cooling (option)
Roll Temperature: Room temperature - 300℃
Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ±2℃ (high accuracy PID micro computer controller)
Power: 380V 3 phase 50-60hz
Safety device: 6 safety buttons with optional safety guard
Key Features
  • Multiple roll constructions available: drilled roll, bored roll, grooved roll
  • Customizable speed ratio based on customer formula and processing requirements
  • Annealed frame, frame cap and base for stress relief
  • Chilled cast alloy iron rolls with hardness up to 70HB
  • Integrated brake and emergency stop safety systems
  • Automatic oil or grease lubrication for easy maintenance
  • Human-centered control system for operator safety
  • Manual or electric roll nip adjustment options
Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control 1
Intelligent Control System
Advanced PLC control system with real-time data recording and export capabilities for kneading time, temperature, ram pressure, current, torque, and recipe code.
  • 20 programmable mixing steps with 20 recipe storage spaces
  • Remote process recipe import and data monitoring capabilities
  • Ethernet communication interface for MES integration
  • 20% control points reserved for future expansion
  • Touch screen interface provided
Click here for More Factory Prices and Shipping Information!
About Zhongli Instrument Technology
Since 2007, Zhongli Instrument Technology Co., Ltd has specialized in manufacturing laboratory testing equipment. Our products are exported to over 80 countries worldwide, with particular popularity in European and American markets.
Silicone Rubber Two Roll Mill Lab Rubber Mixing Mill Variable Speed Two Roll Mill with Digital Temperature Control 2
Our equipment serves diverse industries including rubber and plastics, food, packaging, and electronics. Suitable for scientific research units, quality inspection institutions, and academic applications. Custom solutions available upon request.
Frequently Asked Questions
How to choose the most suitable mechanical equipment?
Our professional team provides expert recommendations based on your testing requirements and specifications.
What's the delivery term?
Typically 15-20 working days after deposit receipt. Stock items available for immediate shipment.
Do you accept customization service?
Yes, we offer both standard and customized machines tailored to your specific requirements.
Can we visit your factory before order?
We warmly welcome factory visits and can assist with hotel arrangements and airport pickup.
What is your warranty policy?
Two-year warranty with technical support, parts replacement, and on-site engineer service when necessary.
How is the equipment packaged for shipping?
Standard export wooden boxes ensure safe transportation by sea or air without damage.
