EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection

EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection
EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection

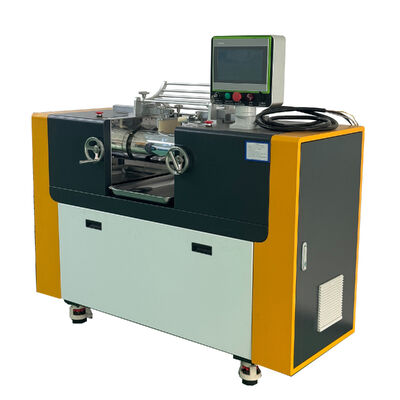

Large Image :  EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10,000
Contact Now
Detailed Product Description
Roll Diameter: 160 Mm Roll Length: 350 Mm
Front Roll Speed: 1 - 19 Rpm Roll Ratio: 1:1.4
Voltage: 380V Power: 2.8 KW
Weight: 380 Kg Temperature Range: Ambient Temperature To -280°C
Temperature Accuracy: ±2°C Roller Spacing: 0.1~6mm
Mixed Capacity: 0.5-2.0kg Roller Speed: 0~30 R/min
Roller Material: High-hardness 40Cr Alloy Motor Power: 7.5KW
Dimensions: 1600×850×1650 Mm
Highlight:

EN1417 two roll rubber mixing mill

,

two roll mill with safety protection

,

open mill rubber mixing machine

EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection
EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 0 EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 1 EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 2 EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 3
Key components use internationally recognized brands such as SKF bearings, ABB drive systems, and Siemens PLC intelligent programs, increasing the overall machine lifespan by 30%. The equipment is certified under the ISO 9001:2015 Quality Management System.
Technical Specifications
Item Parameter
Temperature Range Ambient temperature to -280°C
Cooling Method Water-cooled
Temperature Accuracy ±2°C
Rubber Blocking Plate PTFE-coated, durable, does not damage rollers, does not shed impurities
Roller Size Ø160 * L350mm (Customizable sizes available: 4-inch/6-inch/9-inch, etc.)
Roller Spacing 0.1~6mm Effort-saving precision manual spacing adjustment
Mixed Capacity Approx. 0.5-2.0kg (depending on material formulation density)
Roller Material High-hardness 40Cr alloy
Roller Surface HRC 65 mirror-finish chrome plating
Speed Ratio Approx.: 1:1.4 (Customizable upon request)
Roller Speed 0~30 r/min variable frequency drive speed control
Motor 7.5KW (Heavy-duty chain drive ensures torque, smooth transmission, and easy maintenance)
Safety Protection Safety switches on both sides, front and rear safety guard, knee-activated emergency stop doors (triggering within 1/2 second), optional wristband-sensing safety devices
Material Receiving Tray 304 Stainless Steel Corrugated Sheet
Complete Machine Brand-new Baked Enamel Body
Volume Approx. 1600 * 850 * 1650 (W * D * H) mm
Weight Approx. 950 kg
Related Equipment
EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 4 EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 5
Click here for 10% discounts!
About Zhongli Instrument Technology Co., Ltd
EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 6
We are Zhongli Instrument Technology Co., Ltd, an instrument expert headquartered in Dongguan, Guangdong, China since 2007, specialized in manufacturing lab testing equipment.
Throughout our more than 13 years of history, our products have sold well in Europe, America, and Southeast Asia markets, totaling more than 80 countries, especially favored by European and American countries.
Our equipment covers a wide range of industries, including rubber and plastics, food, packaging, electronics, and are suitable for scientific research units, quality inspection institutions, and academic fields.
In addition to standard machines, our R&D team can customize equipment to meet your specific requirements.
EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 7 EN1417 Two Roll Mill Open Mill Two Roll Rubber Mixing Mill Machine With Safety Protection 8
Click here for more factory prices and shipping information!
Frequently Asked Questions
How to choose the most suitable mechanical equipment?
Our professional team will provide the best recommendations based on your testing requirements and specifications.
What's the delivery term?
We typically maintain factory stock. For out-of-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Do you accept customization service?
Yes, we offer both standard machines and customized equipment tailored to your specific requirements.
Can we visit your factory before ordering?
Yes, we warmly welcome factory visits and can assist with hotel arrangements and airport pickup.
Do you have customers in our country?
Our testing machines have been sold to over 80 countries including USA, Canada, Russia, UK, Italy, Germany, India, Pakistan, Philippines, Singapore, Malaysia, Thailand, Vietnam, Korea, Saudi Arabia, Brazil, and many others.
How about your warranty?
We offer a standard two-year warranty including technical support, replacement parts, and when necessary, on-site engineer service.
How about the packing for machine protection during transportation?
Machines are packed in standard export wooden boxes to ensure safe transportation by sea or air.
What is the order process?
Inquiry → Quotation → Communication → Order Confirmation → Deposit Payment → Production → Testing & Debugging → Balance Payment → Packing → Delivery → Customer Receiving → After Service
How to install and use the product?
Products include English operating instructions and installation videos.
