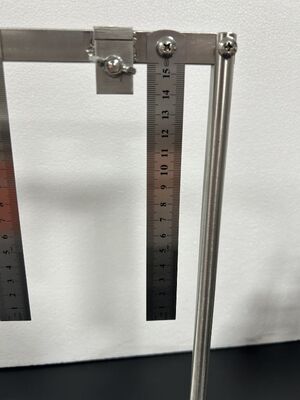

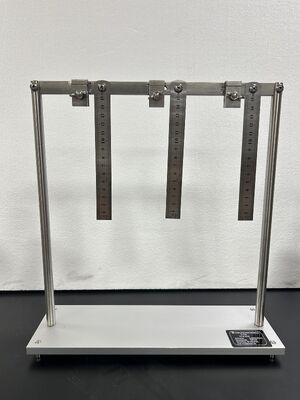

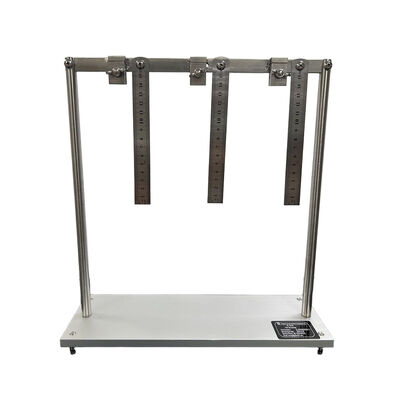

Wire and Cable Heat Setting Test Device Hot Elongation Device with GB/T 2951 GB 5013 Standars

Name: High-Temperature Pressure Test Device for Wire and Cable

Model: ZL-1010A

Blade Depth: 0.7±0.01 mm

Load: 1~1000 (Ten kinds of weights)

Name: Low Temperature Impact Test Device with VDE 0472 IEC 884-1 CQC 1147 Standars

Low-Temperature Impact Height: 100 mm

Weights: 100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500 g (3 pieces each, 30 pieces total)

Dimensions: Width 390 × Depth 80 × Height 450 mm (Three-station type)

Name: Low Temperature Winding Test Device

Winding Mandrel Diameters: Ø4 / Ø7 / Ø8 / Ø10 / Ø12 / Ø14 / Ø16 / Ø20 / Ø23 / Ø26 / Ø32 / Ø38 mm (12 types in total)

Wire Guides: Ø3.5 mm / Ø6 mm / Ø10 mm / Ø12 mm / Ø16 mm (one of each)

Material: SUS304 Stainless Steel

Name: VW-1 Flame Test for Cables Horizontal Sample FT2 Burning Test UL1581 Single Cable and Wire Burning Test Machine

Meets the requirements: ASTM D 5025-05

The test flame takes: 54s±2s

TEM rise from: 100°C±2°C to 700°C±3°C

Product name: IEC 227 IEC 245 UL 1581 VDE 0472 Wire and Cable Mechanical Flexing Test Equipment

Carriage Stroke: 1000 mm

Carriage Speed: 0.33 m/s (for two pulleys)

Weight Loads: Two sets of weights: 500 g, 1000 g, 2000 g, 3000 g, 7000 g (10 weights total)
