EN 50575 EN 50399 EN 60332 EN 61034 EN 60754 EN 50399 EN 50575 Fire Performance Chamber Of Cables

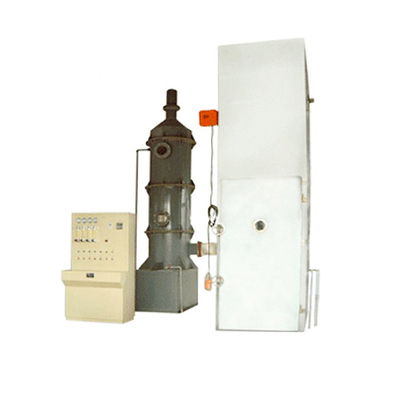

Large Image : EN 50575 EN 50399 EN 60332 EN 61034 EN 60754 EN 50399 EN 50575 Fire Performance Chamber Of Cables

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE
Model Number:	ZL-1020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	EN 50575 EN 50399 EN 60332 EN 61034 EN 60754 EN 50399 EN 50575 Fire Performance Chamber of Cables will be packed in wooden case
Delivery Time:	20 work days
Payment Terms:	L/C,T/T,Western Union,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Name:	EN 50575 EN 50399 EN 60332 EN 61034 EN 60754 EN 50399 EN 50575 Fire Performance Chamber Of Cables	Model:	ZL-1020
Burning Angle:	45°	The Size O/D:	The Size O/D 0.5mm
Temperature Resolution:	1ºC	Standard Copper Block:	Weight 10 ± 0 .05 G
Inner Dimensions:	WDH=300mm450mm1200mm	Conform To Standard:	IEC60332-1-1,IEC60332-1-2,IEC60695-11-2
Highlight:	Fire Performance Chamber Of Cables , EN 50575 Cable Fire Performance Chamber , EN 50399 Cable Fire Performance Chamber

EN 50575 EN 50399 EN 60332 EN 61034 EN 60754 Fire Performance Chamber of Cables

This cable fire performance chamber is engineered to meet rigorous international standards for cable fire testing, providing reliable and accurate assessment of cable fire performance characteristics.

Application

The cable tester is designed according to IEC60332-1-1 and IEC60332-1-2 standard requirements. Featuring an integrated design with combined test and control components, it facilitates easy on-site installation and debugging. The test chamber shell and critical components are constructed from stainless steel for excellent resistance to corrosion. The advanced control system offers high automation with automatic ignition, digital temperature and time displays for convenient observation and recording, ensuring stable and reliable operation.

Technical Parameters

Parameter	Specification
Flame Standard	IEC60695-11-2, 1kW nominal pre-mixed flame
Burner Tube	IEC60695-11-2 Figure A
Burning Angle	45°
Thermocouple	Type K (Ni/Cr - Ni/Al), 200°~1050°
Size O/D	0.5mm
Temperature Resolution	1ºC
Standard Copper Block	Weight 10 ± 0.05g before drilling, Cu-ETP
Gas Supply	Propane, min. 95% purity
Input Power	220V 50Hz 3A or 115V 60Hz Optional
Inner Dimensions	WDH: 300mm450mm1200mm
Conforms to Standards	IEC60332-1-1, IEC60332-1-2, IEC60695-11-2
