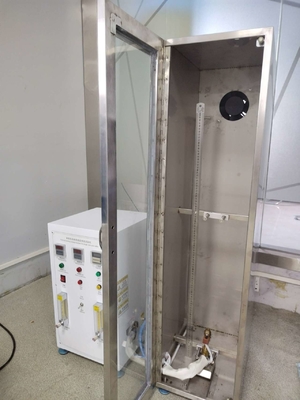

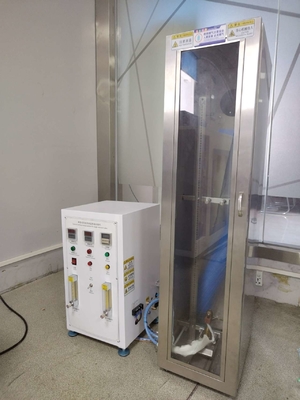

UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2

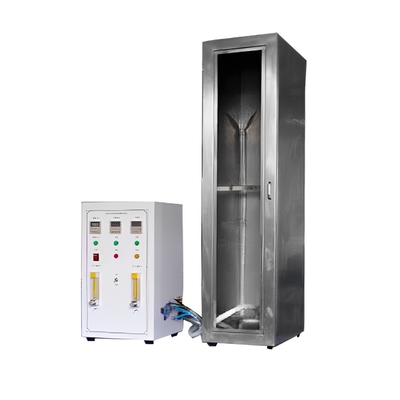

Large Image : UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1028

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2 Flame Test Chamber is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2 Flame Test Chamber	The Combustion Chamber:	1200 X 450mm
Sample Length:	600 ± 25mm	Air Flow Range:	1-10L/min;
Pressure Gauge:	0~0.75kpa Range Adjustment	Ignition Mode:	High Pressure Automatic Ignition
Gas Flow Range:	100-1000mL/min	Model:	ZL-1028
Highlight:	Single Core Cable Flame Test Chamber , UL 2556 Flame Test Chamber , UL 1581 Flame Test Chamber

UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2 Flame Test Chamber

Technical Description:

The single wire and cable vertical burning tester is suitable for measuring the vertical burning non-invasive performance of single plastic wire, control wire, cross-linked, elevator, ship, mining cable and so on. Can also be made of high self-extinguishing low-smoke halogen-free flame-retardant polyolefin insulation material and 105 °C low-smoke halogen-free flame-retardant olefin radiation insulating material vertical burning test. The device is a device that can withstand the burning test of a single wire and cable. The device has the advantages of high accuracy, automatic timing, automatic end of test, and easy operation.

Reference Standards:

EN50265‐1

IEC60332‐1‐2/3:2004, IEC60695‐11‐ 2:2003.

GB/T 18380‐2008, GB/T 5169.14‐2007

Basic Specifications:

The Combustion Chamber	The size of the box is 300x wide and 1200 x 450mm deep
Combustion Torch	1KW combustion nozzle (made according to GB/T5169.14-2007/IEC60695-11-2: 2003 standard), the height of the blue flame core is 50-60mm, and the total height of the flame is 170-190mm
Gas	Use high-purity 95% technical grade propane gas (or gas instead)

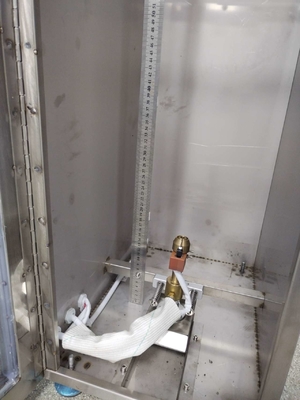

Sample Installation	A, sample length: 600 ± 25mm B, sample holder: the distance between the lower edge of the upper bracket and the upper edge of the lower bracket of the two horizontal brackets is 550mm
For the Fire Time	0.1-999.9S continuous setting, in the set time the flame can continuously burn the sample
The Torch Installation Location	the blue flame contact point distance from the lower edge of the upper bracket 475mm, the torch and the specimen's vertical axis into an angle of 45 degrees
Control Functions	manual or automatic to choose from
Gas Flow Range	100-1000mL/min;
Air Flow Range	1-10L/min;
Pressure Gauge	0~0.75kpa range adjustment
Ignition Mode	high pressure automatic ignition

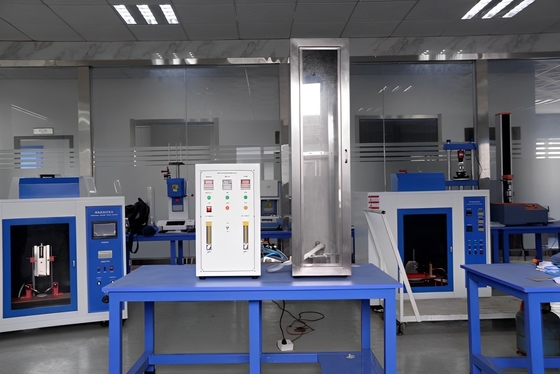

UL 1581 EN 60332 UL 1581 UL 2556 Single Core Cable Single Wire Flame Test Chamber VW-1 Flame Tester FT1/FT2 0
