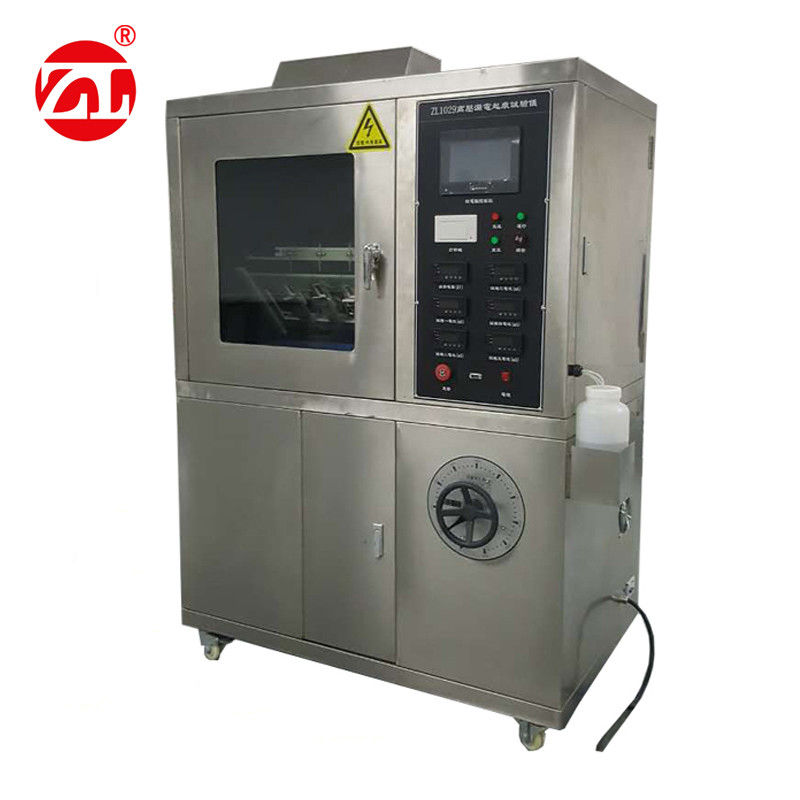

IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine

IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine
IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine
video play

Large Image :  IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-1029
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: IEC 60587 6000V High Voltage Stainless steel Tracking Index Universal Test Machine is packaged within safety wooden case.
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 set per month
Detailed Product Description
Product Name: IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine Power: 220v / 380v
Working Capacity: 800L*700W*850H(mm) Electrode: 0.5mm Thickness
Material: Stainless Steel Test Voltage: DC 0V-8400V Stepless Adjustable
Drop Liquid Accuracy: 0.5% Warranty: 12 Month
Test Hours: 0-10 Hours, Can Be Set Key Words: Stainless Steel
High Light:

cable testing device

,

cable harness tester

,

IEC 60587 Universal Test Machine

IEC 60587 6000V High Voltage Stainless steel Tracking Index Universal Test Machine






Description:
High Voltage Tracking Index Test Machine suit for electronic products, household appliances and other
materials resistance to tracking and erosion test, simulate the frequency (48HZ-62HZ) or a corresponding DC Voltage, liquid contaminants and ramps samples by electrical resistance to tracking and erosion measurements assessed under severe environmental conditions of electrical insulating materials
resistance to tracking and erosion levels.

Test standard: IEC 60587

Technical Parameters:


Model6000V High Voltage Tracking Index Test Machine
Tester size1250L*800W*1800H(mm)
Working capacity800L*700W*850H(mm)
Electrode 0.5mm thickness
MaterialStainless steel
Distance between up and down electrode50.0mm±0.1
Test VoltageAC 0V-6000V Stepless adjustable
Test voltageDC 0V-8400V Stepless adjustable
Test power6000W
The liquid flow range016-1.5ml/min can be set
Drop liquid accuracy0.5%
Test hours0-10 hours, can be set
Controller

Use Germany’s Siemens PLC + Taiwan’s screen,
full touch sctreen control operation

Weight240 kg


Test voltage, series resistance and Pollution liquid flow rate table:


Test voltage range(KV)Tracking recommend voltage (KV)

Pollution liquid flow
rate (ml/min)

Series resistance


1.0 ~ 1.75-0.0751
2.0 ~ 2.752.50.1510
3.0 ~ 3.753.50.3022
4.0 ~ 4.754.50.6033
5.0 ~ 6.0-0.9033

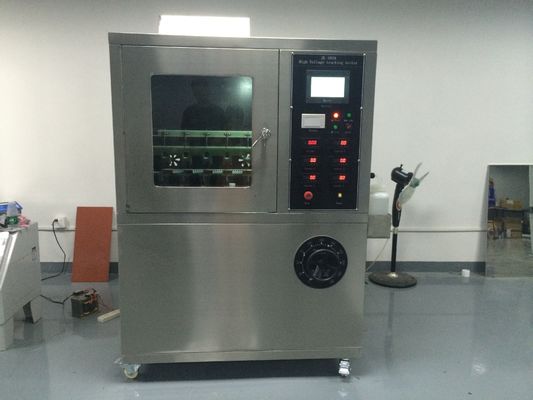

IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine 0

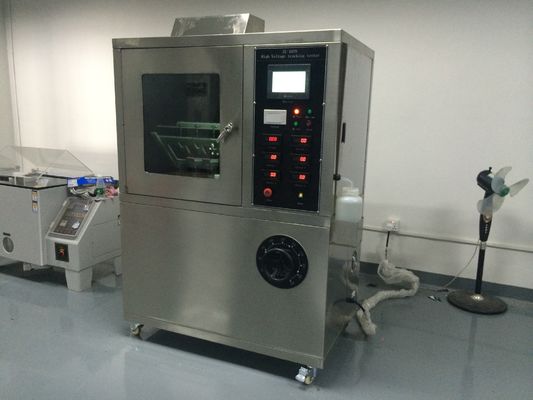

IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine 1

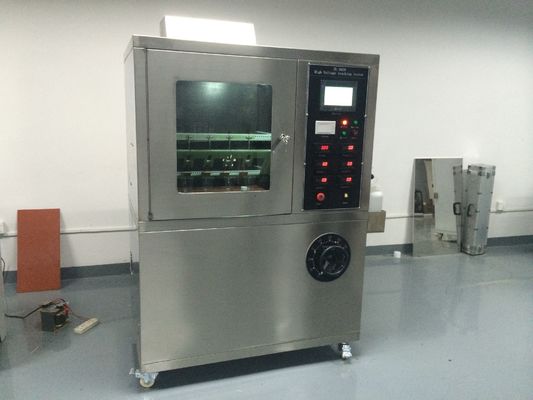

IEC 60587 6000V High Voltage Stainless Steel Tracking Index Universal Test Machine 2
