BS 6387 IEC60331 BS8491 Wire And Cable Fire Resistance Testing Machine

Large Image : BS 6387 IEC60331 BS8491 Wire And Cable Fire Resistance Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Model Number:	ZL-1048

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	BS 6387 IEC60331 BS8491 Wire And Cable Fire Resistance Testing Machine will be packed in wooden case
Delivery Time:	30-45 work days

Contact Now

Detailed Product Description

Name:	BS 6387 IEC60331 BS8491 Wire And Cable Fire Resistance Testing Machine	Brand:	ZL
Test Station:	1 Station	Test Product Size:	Length>1200mm
Flame Temperature:	450°～950° Adjustable	Combustion Gas:	Propane With A Purity Of 98% (prepared By The Customer)
Combustion-Supporting Gas:	Compressed Air	Air Flow:	20-200L/min
Propane Flow:	2.5-25L/min
Highlight:	Cable Fire Resistance Testing Machine , Wire Fire Resistance Testing Machine , Wire Fire Resistance Test Machine

BS 6387 IEC60331 BS8491 Wire And Cable Fire Resistance Testing Machine

This professional fire resistance testing machine evaluates the circuit integrity maintenance capabilities of wires and cables under fire conditions, ensuring compliance with international safety standards.

Compliance Standards

BS 6387-2013 - Performance requirements for cables to maintain circuit integrity under fire conditions
IEC60331 - Line integrity tests for cables under fire conditions
BS8491-2008 - Fire integrity assessment for large diameter power cables
GB/T19216.11-2003/IEC60331-11:1999 - Test device specifications (750℃ flame temperature)
GB/T19216.21-2003/IEC60331-21:1999 - Test procedures for rated voltage 0.6/1.0 KV and below cables
GB/T19216.23-2003/IEC60331-23:1999 - Test procedures for data cables
GB/T19216.25-2003/IEC60331-25:1999 - Test procedures for optical cables
GB/T 19666-2019 - General rules for flame retardant and fire-resistant wires and cables

Technical Specifications

Test Configuration

Test Stations	1 station (one sample per test)
Sample Size	Length > 1200mm
Sample Support	3 wire support rings with test fixtures

Combustion System

Blowtorch	500mm Venturi air-propane mixed blowtorch
Flame Temperature	450°C - 950°C (adjustable)
Combustion Gas	Propane (98% purity, customer supplied)
Combustion-Supporting Gas	Compressed air (>10Mba pressure, customer supplied)
Air Flow	20-200 L/min
Propane Flow	2.5-25 L/min
Ignition	Automatic ignition system

Temperature Measurement

Temperature Sensing	Stainless steel K-type thermocouples (1100°C resistance)
Measurement Points	2 thermocouples at 70mm above blowtorch, 250mm apart

Electrical Specifications

Power Supply	AC380V (±10%) / 50HZ
Operating Power	1KW
Voltage Fluctuation	380V ±10%
Frequency Fluctuation	50HZ ±1%

System Components

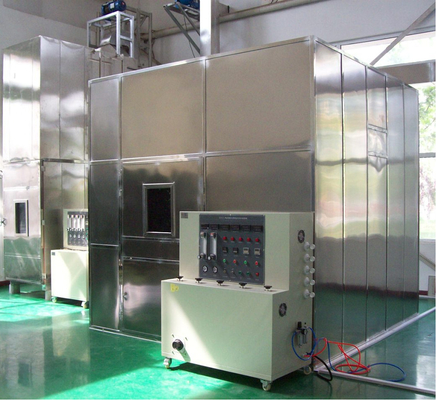

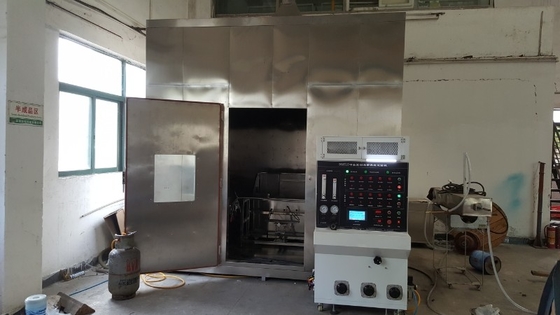

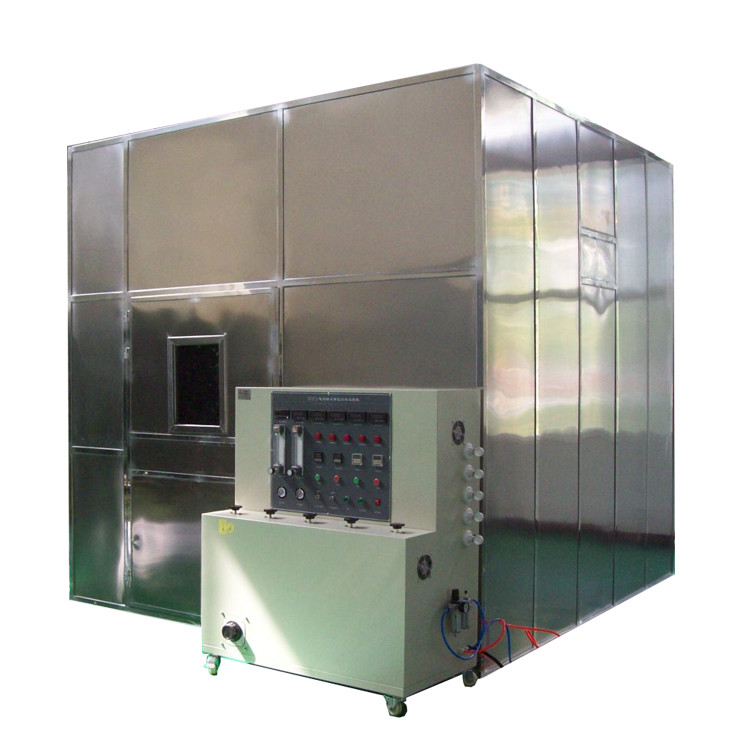

Combustion Chamber

Inner dimensions: 3M * 3M * 3M (27 cubic meters total) - Customer supplied or stainless steel box available

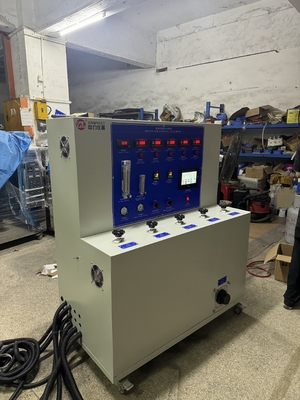

Control Box

Stainless steel construction with CNC machining and arc design

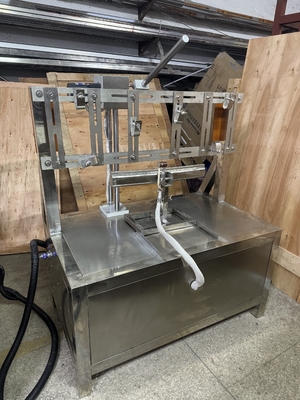

Combustion Device

30*30 aluminum profile construction for lightweight, mobile operation

Control System

Relay control system with domestic leading brand components
Continuous detection device for cable core integrity monitoring
Three single-phase transformers with 3A maximum leakage current capacity
Lamp indicators for each core wire with 0.25A loading at rated voltage
Short-circuit/break signal output during testing

Safety Features

Power overload protection
Short-circuit protection
Control circuit overload protection
Double-layer insulated chassis with high-temperature insulation
External wall temperature maintained below 45°C during testing
Powerful exhaust system for rapid gas evacuation
Tempered glass observation window

Environmental Requirements

Operating Temperature	5°C - 30°C
Air Pressure	86 - 106 kPa
Storage Temperature	0°C - 45°C (when not in use)

Installation Requirements: Flat ground, good ventilation, no flammable/explosive/corrosive gases or dust. No strong electromagnetic radiation sources. Adequate maintenance space. Dedicated air and power switches of appropriate capacity required.
